High Quality 100kg AGV Steering Control Steel Gear Brushless CAN Servo DS-P008 Manufacturer and Supplier

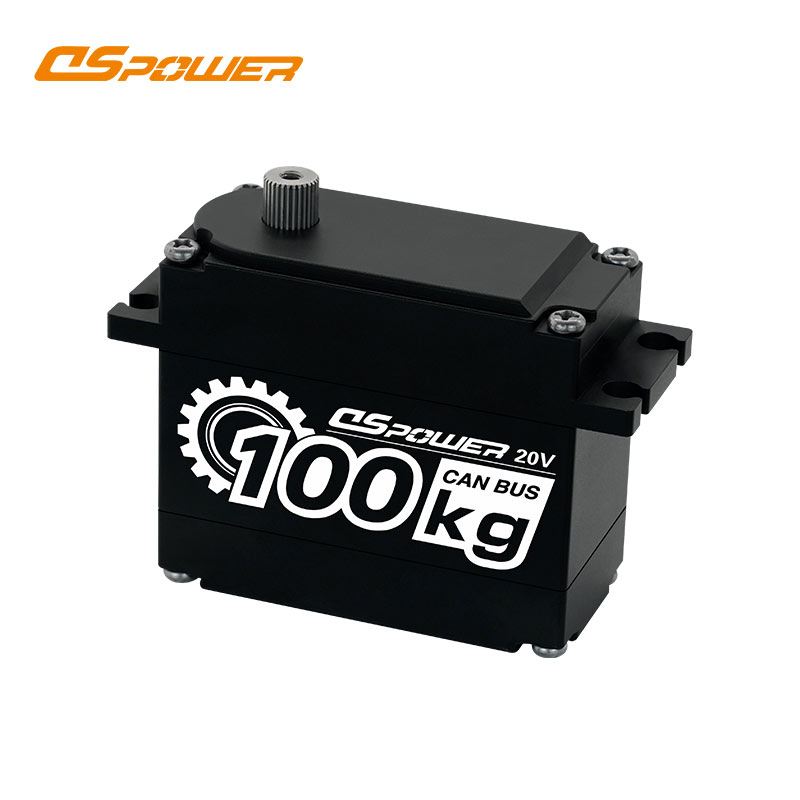

100kg AGV Steering Control Steel Gear Brushless CAN Servo DS-P008

DS-P008 is designed for high torque and high voltage operation, paired with CAN bus and aluminum alloy body to achieve fast heat dissipation.

● Aluminum Alloy Case+Steel Gear+CAN BUS Control

● Equipped with Brushless Motors and Magnetic Encoders, Fast feedback data and long service life

● 100 kgf·cm Stall Torque+14-22V Operating Voltage+Operable Angle 360 °

● Application Scenario：AGV,Inspection robots,lawn mowing robot and Mobile Robot

Send email to us

Product Detail

Product Tags

DS-P008 is designed for the most robust mobile platform, providing 100KG torque and high precision gears in a weatherproof aluminum casing. With its clutch protection transmission system and brushless motor design, it redefines the reliability of AGVs, inspection robots, and lawn mowing robots

Key Features and Functions:

● Ultra high torque: 100KG stall torque+50KG clutch torque, providing AGV with ultra high torque to transport heavy objects. The clutch can withstand 50kg impact and protect the body

● Industrial grade durability: Designed with brushless motor and magnetic encoder, after more than 1000 hours of continuous operation testing, it is an ideal choice for uninterrupted AGV workflow and inspection robots throughout the day.

● Adaptability to harsh environments: It can withstand harsh environments ranging from -25 ° C to 75 ° C. The aluminum alloy shell design achieves efficient heat dissipation and prevents AGV from overheating during long shifts or lawn mower mowing.

Get Free Samples！！！

Technical Specs

Operating Voltage: 14-22V DC
Standby Current: TBD
No Load Speed: ≤0.27sec/60°
Stall Current: ≤3.5A
Stall Torque: ≥100 kgf.cm
Rotating Direction: CCW
Operating Travel Angle: 360°
Mechanical Limit Angle: Unlimited
Angle deviation: ≤1°
Weight: TBD
Motor Type：Brushless Motor
Communication Interface: CAN BUS
Gear Set Material: Steel Gear
Case Material: Aluminum Alloy Case

Application Scenarios

● AGV: 100KG torque can easily control the differential steering of the steering wheel, as well as control the rotation of the laser radar to expand the scanning range

● Detection robot: High torque operation, capable of easily grasping and transporting actions, high-precision gears, capable of rapid rotation and lifting of camera gimbal

● Mowing robot: 100KG torque can achieve rapid lifting and lowering of the cutterhead, high-precision gears, control brush scraping sensor, high-speed operation, can achieve high-speed steering of the front wheels

FAQ

Q. Do: you test all the goods before delivery?

A: Yes, we have 100% test before delivery. If you need any assistance, please feel free to contact us.

Q: What certifications do your servo has?

A: Our servo have FCC, CE, ROHS certification.

Q. How do l know if your servo are good quality?

A: Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.

Q: For a customized servo, how long is the R&D time (Research& Development time)?

A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
