18g Plastic Gear High Speed 21T Digital Micro Servo DS-S016

DSpower S016 18g plastic gear digital servo, consisting of a plastic casing, has a total net weight of 18g and is equipped with built-in low-noise lubrication.PDI-1181MG digital servo

●  Plastic Case+Plastic Gear+21T Servo Horn

●  Equipped with an Cored Motor, Provide a longer service life and considerable heat dissipation

●  3 kgf.cm Stall Torque+4.8-6V Operating Voltage+Operating Angle 210°

●  Ideal Applications：Drone Control Surface,Automation Equipment,RC Airplane and Smart Toy


Product Detail

Digital Micro Servo 18g Steering Gear

Model:DS-S016

Smaller in size / 18g Light weight / Ultra high precision

Basic Info：Weight: 18.0g; PA66 Case+30% Fiberglass; Plastic Gear; Cored Motor.

Application Tips: Pan-tilt steering control, Aircraft models, Smart home, Drone Control Surface,smart toys joint,Automation Equipment

Product Info

Brands DSpower
Product Model DS-S016
Weight 18.0g

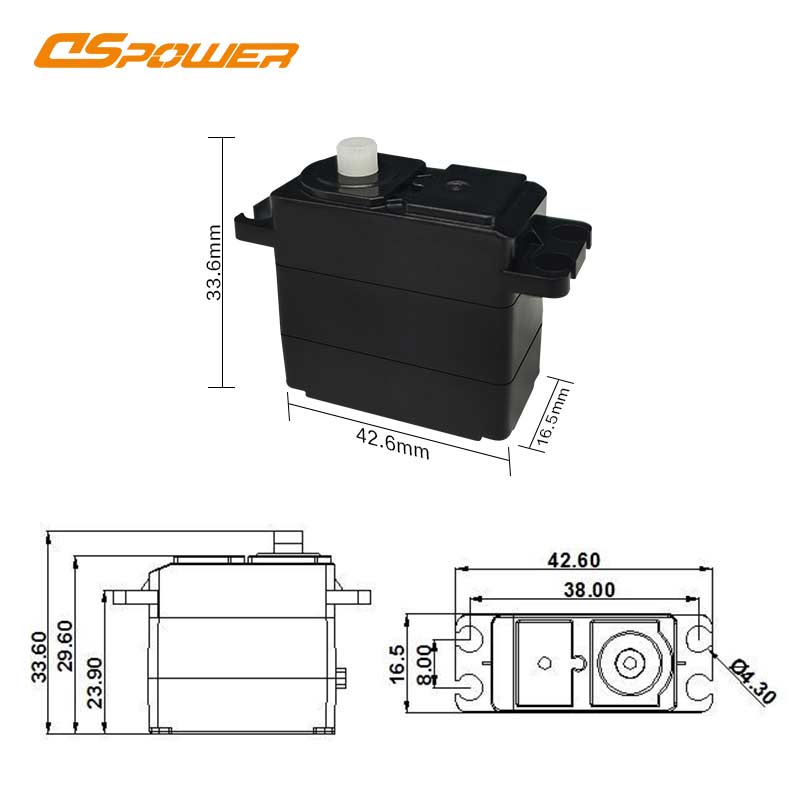

Size 42.6*16.5*33.6mm
Interface Digital servo;PWM
Case Material Plastic+30% fiberglass
Gear Type Fully Plastic
Motor Type Cored Motor
Rated Voltage 4.8-6V
Standby Current ≤10 mA
No Load Current ≦100mA
No Load Speed ≦0.12sec/60°
Rated Torque ≥0.75kgf·cm
Rated Current ≦500mA
Stall Current ≦1.8A
Stall Torque(static) ≥3kgf·cm
Weighting Torque(dynamic) ≥1.9kgf·cm
Pulse Width Range 500-2500us
Operating Angle 180° (500~2500 μs)
Mechanical Limit Angle 210°
Return Angle Deviation ≤1°
Servic Support OEM/ODM
Get a Free Sample
18g digital servo

Product Profile

Product Overview

DSpower S016 18g Plastic GearDigital Micro Servo is composed of a plastic case and 30% fiberglass , and features a built-in low-noise lubrication system and waterproof rubber gasket, making it highly suitable for lightweight applications



Application Scenarios

●  STEM Educational Kits：The S016 voltage is only 4.8-6V, which is very suitable for small robots in STEM education. The PWM control method can be easily integrated into Arduino and Raspberry Pi projects.

●  Small Pan-Tilt Control：The S016, with its 3kg high torque and 18g lightweight design, can be easily integrated into a small gimbal, achieving stable and low-noise operation.

●  Drone Distributor：Ideal for triggering payload release mechanisms, camera gimbals, or folding landing gear on medium-sized quadcopters.

Product Features

●  Advanced Control Technology: Equipped with a core motor and DSpower's self-developed software, S016 ensures stable operation even under high loads. In addition, S016 has an ultra fast speed of 0.12sec/60 ° and a very small dead zone width

●  Rugged & Durable Design: S016 adopts self-lubricating plastic gear material, which not only reduces noise but also increases wear resistance. In addition, S016 can comply with CE, FCC, and EMC certifications.

●  Ultra-Lightweight Architecture: The weight of S016 is only 18g, but it has a super large torque of 3kg, which is very suitable for fixed wing aircraft and drones

Highlights of Our Servos

Self-developed protection system of mechanical transmission and electric drive to utilize the best function of the servo.

Integrated and Miniaturized

Integration of control and drive, characterized by small size and high torque.

Precise Angle, Multi-position Control

The industry's first angle auto-calibration and self-calibration detection system ensures that the servo quickly recovers its factory settings.

Mature Industry Chain, High Cost Performance

Adopting the industry's advanced MIM processing technology, to achieve the ultimate cost-effective under the guarantee of high strength and longevity.

Servo with Self-protection System

With blocking protection, voltage protection, temperature protection, etc. can effectively cope with a variety of complex working conditions, reducing the risk of servo failure.

Obtain 3D STEP Files

Product Certification

Passed  CE,FCC, ROHS, REACH, EMC product certification and more than 100+ patents.
