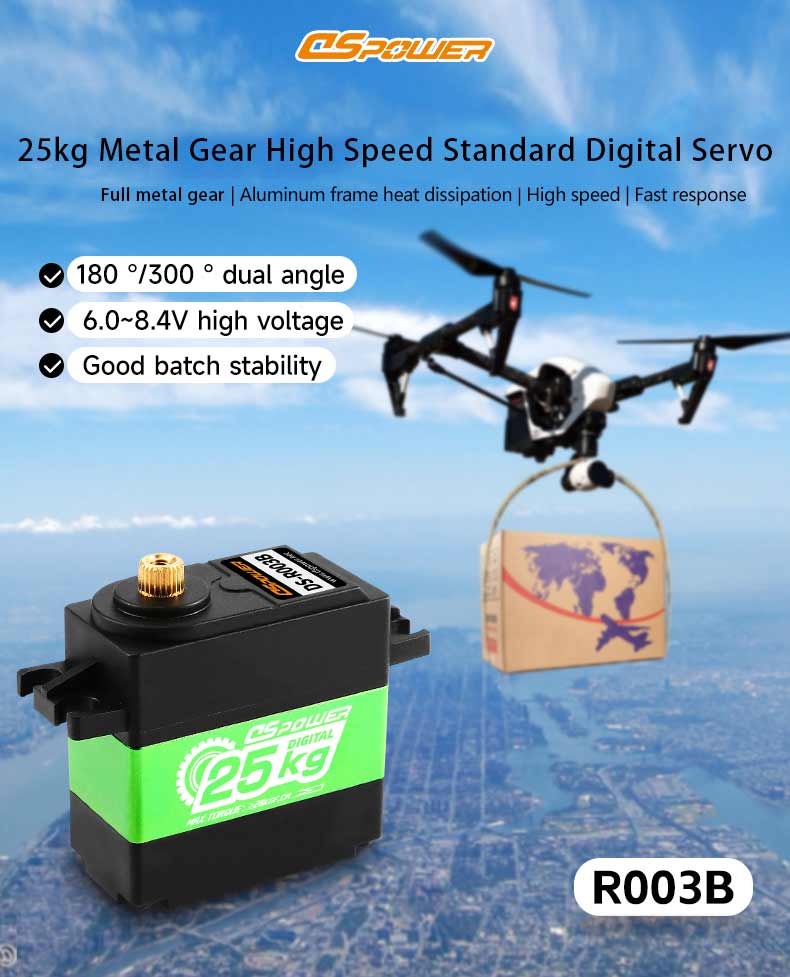

25kg Metal Gear High Speed 25T Standard Digital Servo DS-R003B

DSpower R003B 25kg Metal Gear 25T Standard Digital Servo is made entirely of semi aluminum alloy and features a cored motor. DS3225MG 25kg Digital Servo

● Semi Aluminum Alloy Case+Full Metal Gear+25T Servo Horn

● Equipped with a cored motor, it boasts longer continuous operating time and considerable heat dissipation.

● 25kgf.cm Stall Torque+6-8.4V Operating Voltage+Operating Angle 180°/300°

● Ideal Applications:Humanoid Robot Joints,Cobot Joints,Drone Dispenser and Smart Toys

Send email to us

Product Detail

Reviews

Company Video

International Certification

Product Tags

The R003B is constructed entirely of aluminum alloy and features a built-in core motor with an ultra long lifespan and an ultra fast speed of 0.12sec/60° rotation, allowing for rapid ejection of the drone's dispenser and faster response times for the robot's joints.

Key Features and Functions:

● High Torque Standard Servo: The R003B achieves 25kg of torque under standard voltage and size, and at maximum voltage, it can reach an ultra fast speed of 0.12sec/60°, making it ideal for the instantaneous launch of drone delivery systems or the rapid turning of racing robots.

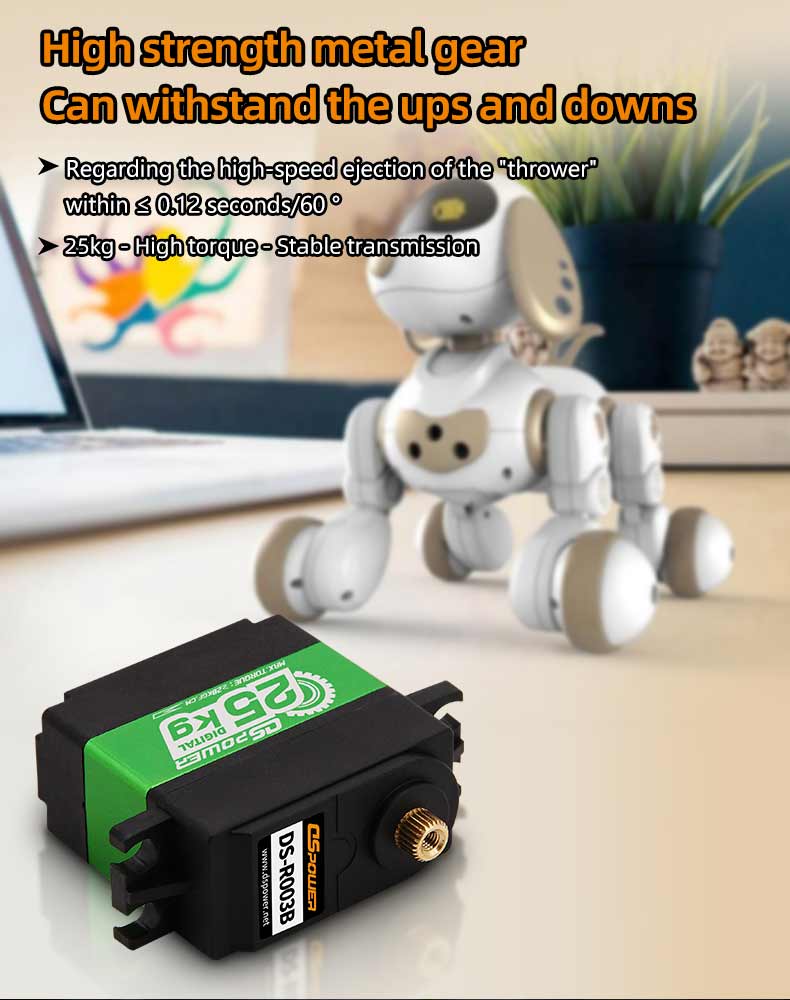

● Highly durable metal structure: The R003B uses full metal gears, which can effectively resist gear slippage and high frequency vibration during robot joint applications. In addition, its entire body is designed with an aluminum alloy shell, which can quickly dissipate heat from the core motor and drive circuit.

● Smart Protection System: The R003B uses PWM control, making it compatible with various projects using Arduino and standard RC controllers. It also features internal stall torque protection, OVP, OCP, and OTP.

● International Certifications and Reliability: The R003B is CE, EMC, and FCC certified, and its industrial grade IP protection rating is achieved through customized waterproof and dustproof protection, making it ideal for outdoor applications such as drone dispensers and off road robots.

Get a Free Sample

Technical Specs

Operating Voltage: 6-8.4V DC
Standby Current: ≤80 mA
No Load Speed: ≤0.12sec/60°
Stall Current: ≤5A
Stall Torque: ≥25 kgf.cm
Rotating Direction: CCW
Operating Travel Angle: 180°/360°
Mechanical Limit Angle: Unlimited
Angle deviation: ≤1°
Weight: 66g
Motor Type：Core Motor
Communication Interface: PWM
Gear Set Material: Metal Gear
Case Material: Aluminum Alloy Case
Output shaft specifications：25T

Application Scenarios

● Drone Dispenser：The R003B's rapid 0.12 sec/60° response time enables quick deployment of life rafts or fire extinguishing payloads, while its 25kg torque ensures reliable mechanical operation. Furthermore, its customized waterproof protection is crucial for drones operating in harsh environments, such as agricultural drones and search and rescue operations.

● Robot and articulated arm joints: The R003B boasts an excellent power-to-weight ratio, weighing only 66g while delivering a high torque of 25kg. This is crucial for reducing overall weight in multi joint robot designs. Furthermore, the R003B features high strength metal gears and built in protection circuitry, significantly preventing component failures caused by frequent use.

● Smart RC Toys: High torque and high speed enable the R003B to achieve dynamic steering in large RC vehicles, or fast and smooth movements in tabletop toys. Digital circuitry ensures fine-tuning and reliable repeatability, which is crucial for tabletop toy manufacturers and precise calibration control of RC toys.
feetech FT5325M 25KG digital servo and JX PDI 6225MG 25kg Metal Gear servo

FAQ

Q. Do you test all the goods before delivery?

A: Yes, we have 100% test before delivery. If you need any assistance, please feel free to contact us.

Q: What certifications do your servo has?

A: Our servo have FCC, CE, ROHS certification.

Q. How do l know if your servo are good quality?

A: Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.

Q: For a customized servo, how long is the R&D time (Research& Development time)?

A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.

Previous: 12kg Steel Gear 15mm Slim Thin 25T Brushless Digital Servo DS-W010A

Next: 3kg Plastic Gear High Speed 21T Digital Micro Servo DS-S016

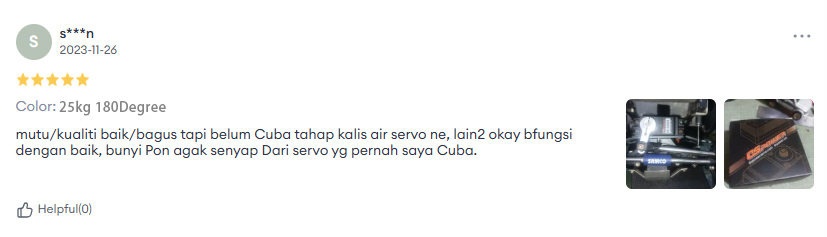

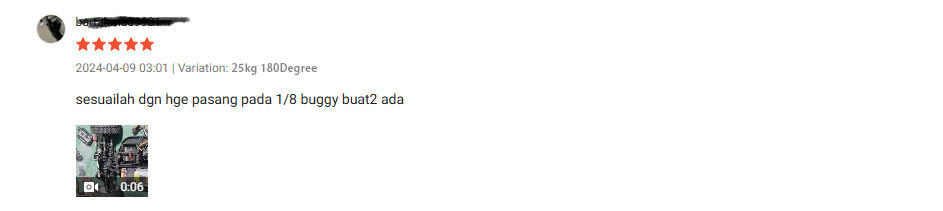

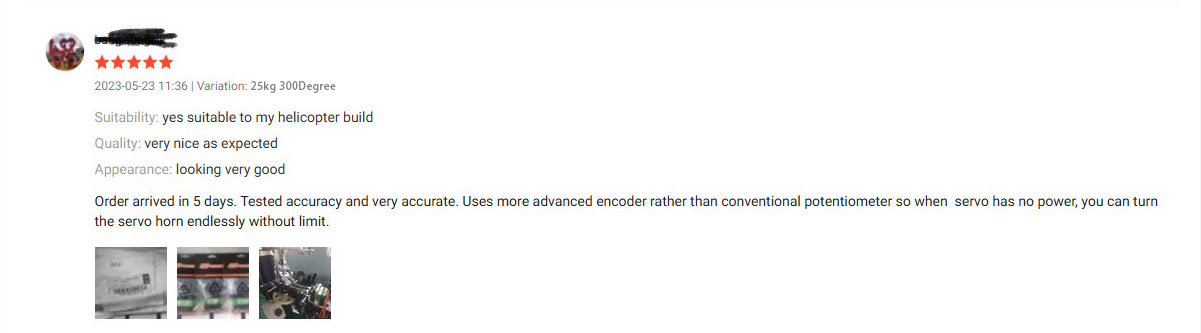

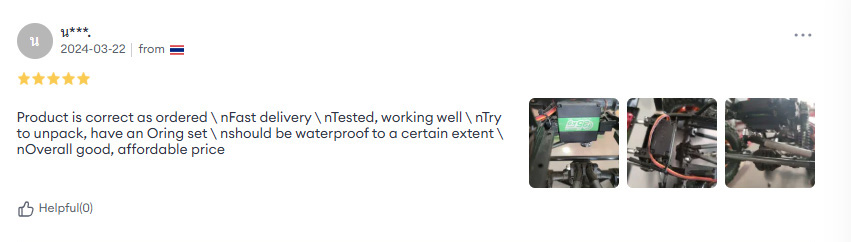

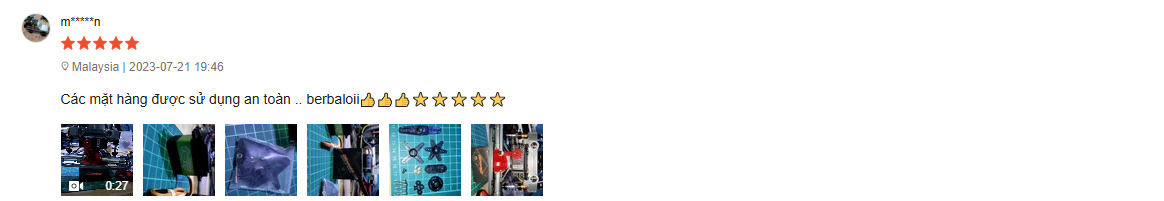

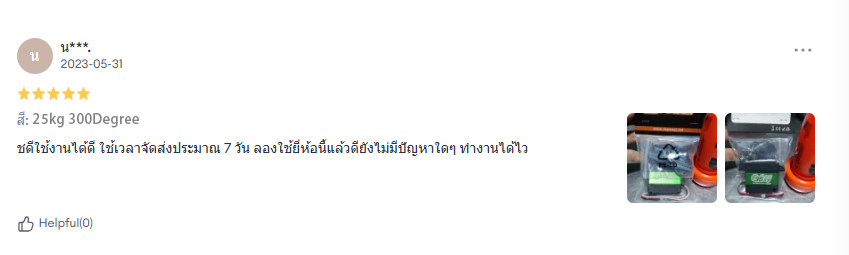

All the screenshots are genuine reviews from users on different e-commerce platforms
