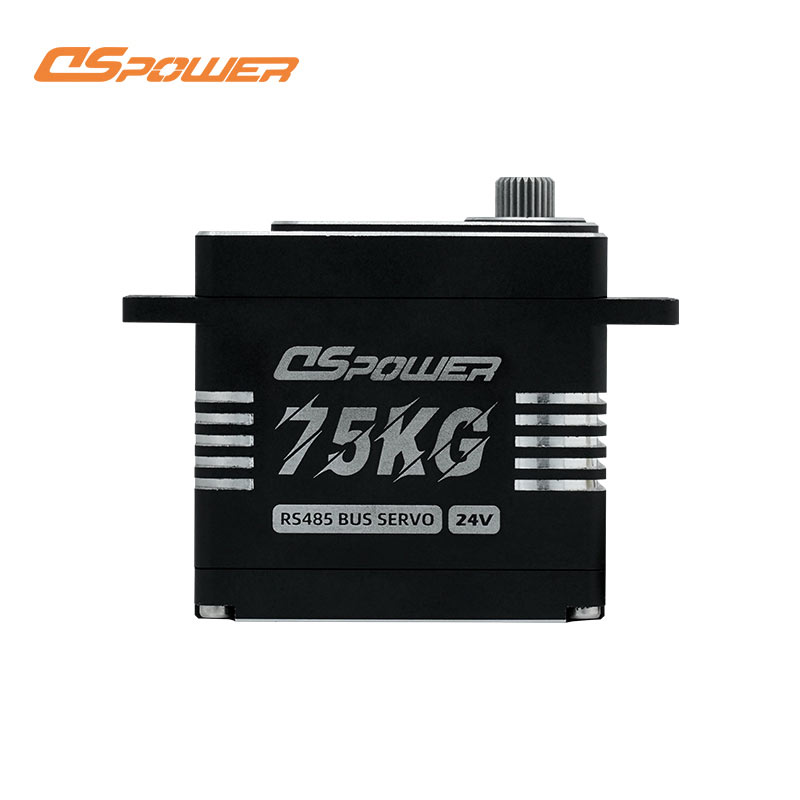

75KG RS485 BUS Steel Gear 30V Brushless Standard Servo DS-R026G
DS-R026G 70KG all metal brushless RS-485 bus servo motor, designed specifically for industrial grade performance. The servo system adopts a fully sealed aluminum alloy shell with IP67 waterproof protection, integrates brushless motor, magnetic encoder and RS-485 bus communication, and can provide 75KG torque and 30V high voltage operation. The hardened steel gear design ensures excellent impact resistance and durability, even under extreme loads
Key Features and Functions:
● High Torque Operation: With a powerful torque of 70kgf · cm, it meets the power requirements of heavy duty scenarios such as industrial automation equipment and robotic arms, ensuring efficient operation.
● All Metal Body Structure: designed with steel reinforced gears to effectively resist impact; Aluminum alloy sealed body, waterproof and dustproof, suitable for harsh industrial environments and outdoor applications.
● High Precision Control: equipped with a magnetic encoder to achieve precise position feedback and control, meeting the high precision requirements of scenarios such as drones and robots.
● Advanced Communication Protocol: Supports RS-485 bus communication, strong anti interference ability, long signal transmission distance, suitable for large or distributed systems.
● Brushless Motor Technology: Brushless design reduces wear and tear, extends service life, reduces maintenance costs, and is suitable for long-term continuous work scenarios.
Operating Voltage: 5-30V DC
Standby Current: ≤30 mA
No Load Speed: ≤0.12sec/60°
Stall Current: ≤2.5A
Stall Torque: ≥80 kgf.cm
Rotating Direction: CW
Operating Travel Angle: 360°
Mechanical Limit Angle: Unlimited
Angle deviation: ≤1°
Weight: 95.5g
Motor Type：Brushless Motor
Communication Interface: CAN BUS/PWM/RS485 BUS/TTL BUS
Gear Set Material: Steel Gear
Case Material: Aluminum Alloy Case
Application Scenarios
● Industrial automation equipment: used for high torque work and precise control of automated production lines, such as material handling and equipment positioning, to improve production efficiency with high torque and stability.
● UAV: Suitable for UAV rudder control, pan tilt adjustment, high precision and anti interference characteristics in RS485 communication to ensure stable flight attitude and precise task execution.
● Robot: As a joint driving component of robots, it meets the needs of humanoid robots, service robots, etc. for working in high torque and harsh environments.
● Logistics equipment: applied to AGVs and Mobile Robot to assist in precise operation and efficient operation in logistics automation.
● Robotic arm: Magnetic encoders provide precise power support for robotic arms, enabling high-precision execution of complex tasks such as assembly, welding, and handling, improving industrial manufacturing accuracy and quality.
FAQ
A: Yes, we have 100% test before delivery. If you need any assistance, please feel free to contact us.
A: Our servo have FCC, CE, ROHS certification.
A: Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.
A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
-
