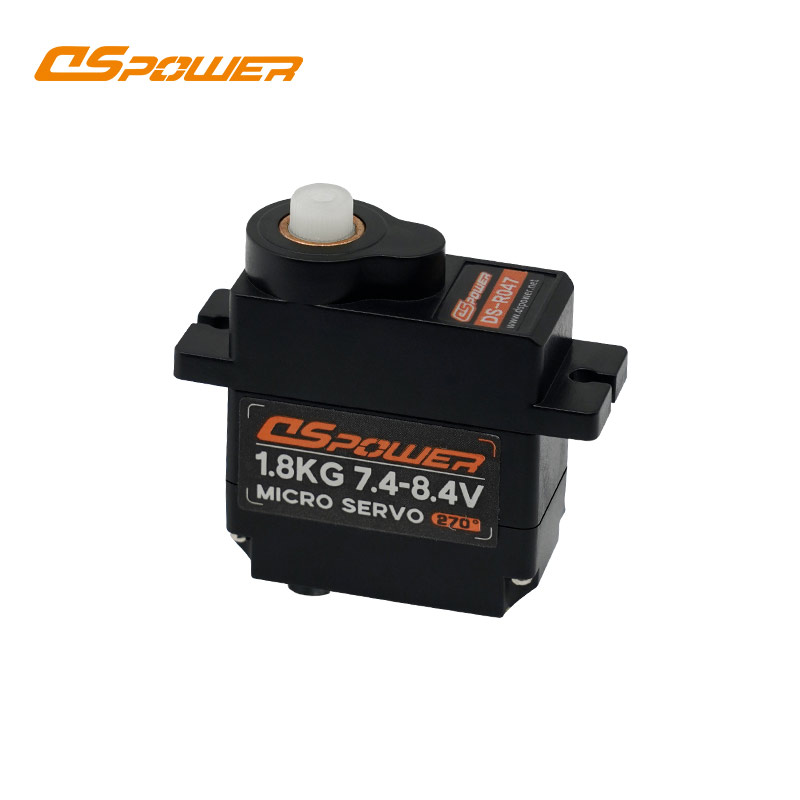

9g Coreless Motor Dual Axis Plastic Gear Mini Servo DS-R047B

Designed for smart companion toys and robots, the DS-R047B redefines micro servo performance with its dual axis design, fast response, and quiet operation.

● Plastic Gear+Coreless Motor+Anti Break Protection

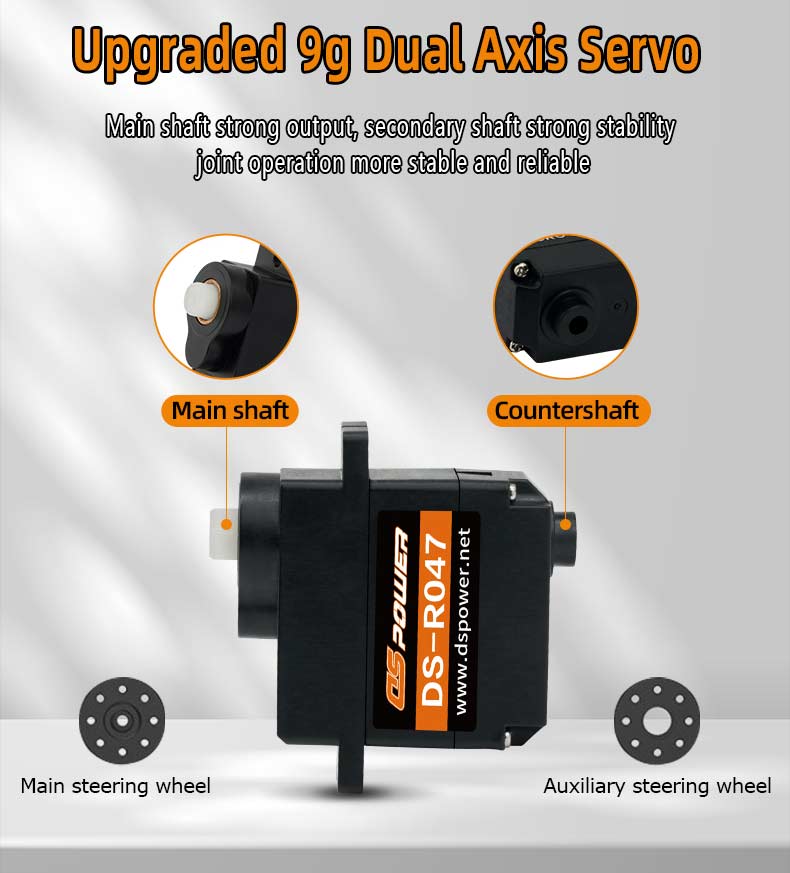

● Dual axis design makes joint operation more stable and reliable

● 1.8kgf·cm Stall Torque +Operating Voltage 7.4-8.4V + Operating angle 280°±10°

● Ideal Applications：Desktop Robot and Companion Robot

Send email to us

Product Detail

The DS-R047's advantage lies in its unique "clutch protection" mechanism, which is not typically found in competing products. While these products offer higher torque or all-metal gears, they are also heavier, more expensive, and lack specific protection against external impacts.

Key Features and Functions:

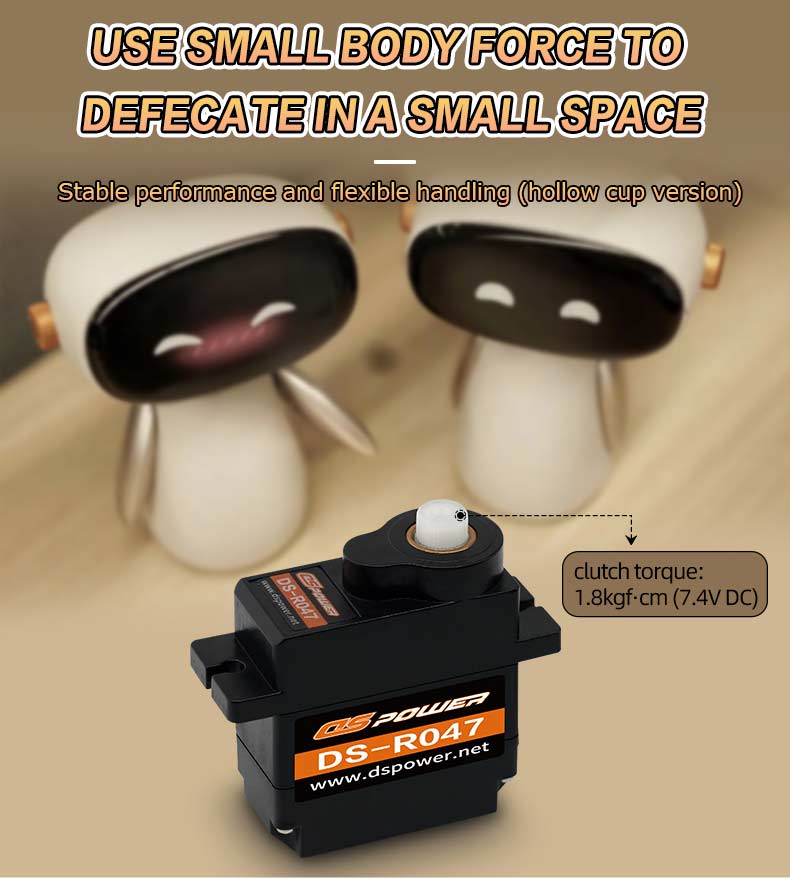

● Clutch protection technology: significantly reduces product return rates and after-sales warranty costs, while also improving the durability and market reputation of end products.

● Ultra low noise operation: Tested at 45 degrees per second with no load, the ambient noise level is only 30dB, enhancing the user experience of consumer products and making them more "companionship-like." This meets the inherent needs of AI plush toys for "quietness" and "softness."

● Small yet powerful: Achieve powerful power output in a compact size, meeting the needs of the robot dog's walking and the precise control of the robotic arm.

● All plastic body: Reduces unit cost and improves economic benefits of mass production. Reduces overall product weight and improves portability.

Get a Free Sample

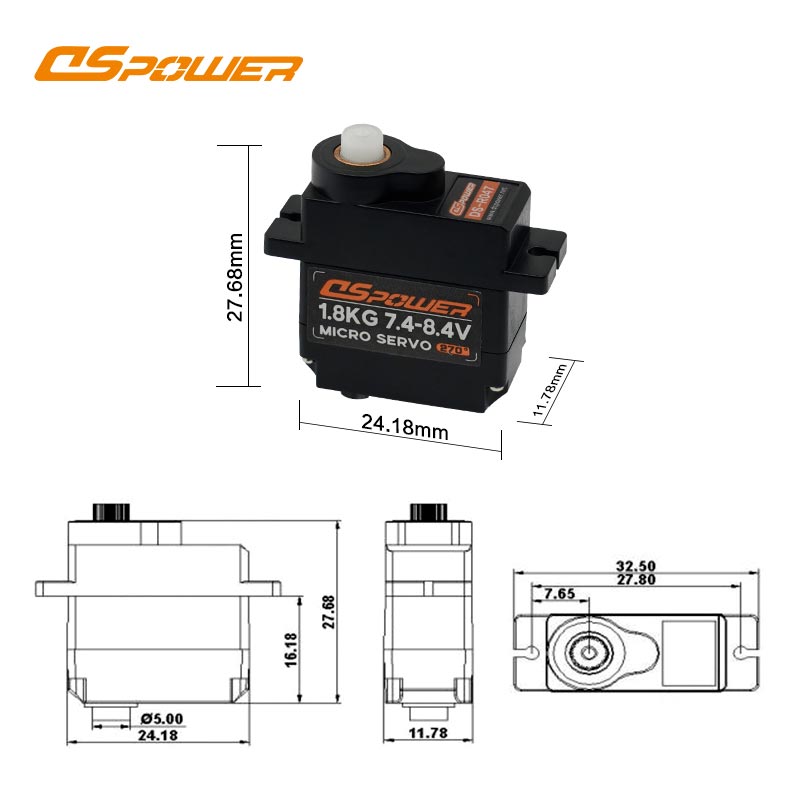

Technical Specs

Operating Voltage: 7.4-8.4V DC
Standby Current: ≤20 mA
No Load Speed: ≤0.09sec/60°
Stall Current: ≤1.5A
Stall Torque: ≥1.8 kgf.cm
Rotating Direction: CCW
Operating Travel Angle: 280°±10°
Mechanical Limit Angle: Unlimited
Angle deviation: ≤1°
Weight: 11±0.5g
Motor Type：Core Motor
Communication Interface: PWM
Gear Set Material: Plastic Gear
Case Material: Plastic Case

Application Scenarios

● AI Plush Toys: Bringing Emotional Bonds to Life

Applying the DS-R047B to the joints of an AI plush toy's head, ears, arms, or tail enables lifelike, fluid movements. These movements are key to establishing emotional connections and achieving "bionic natural interaction." For example, an AI pet bear can express curiosity through the DS-R047B driven head movement and gently raise its arms to create a hug.

● Desktop Companion Robots: Engineered to be the Perfect Desk Companion

The DS-R047B is used in the legs, arms, or head joints of desktop robots, enabling them to walk, make precise gestures, and interact with the desktop environment. These robots need to be lightweight and precise, while also possessing the durability to withstand impacts on the desktop.

● Educational and DIY Robotics: Empowering the Next Generation of Makers

The DS-R047B is the core component of an educational robotics kit, teaching students programming, mechanical engineering, and robotics. This product can be used to build robotic dogs, bipedal robots, and more, allowing students to translate theoretical knowledge into practical results through hands-on projects.

FAQ

Q. Do: you test all the goods before delivery?

A: Yes, we have 100% test before delivery. If you need any assistance, please feel free to contact us.

Q: What certifications do your servo has?

A: Our servo have FCC, CE, ROHS certification.

Q. How do l know if your servo are good quality?

A: Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.

Q: For a customized servo, how long is the R&D time (Research& Development time)?

A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
