35kg Steel Gear Waterproof 25T Digital Brushless Servo DS-B009-C
Product Info
| Brands | DSpower |
| Product Model | DS-B009-C |
| Weight | 70.0g |
| Size | 40*20*40.8mm |
| Interface | Digital servo;PWM |
| Case Material | Aluminum Alloy |
| Gear Type | Full Steel Gear |
| Motor Type | Brushless Motor |
| Operating Voltage | 6-7.4V |
| Standby Current | ≤40 mA |
| No Load Current | ≦200mA |
| No Load Speed | ≦0.12sec/60° |
| Rated Torque | ≥7kgf·cm |
| Rated Current | ≦1.9A |
| Stall Current | ≦7.9A |
| Stall Torque(static) | ≥35kgf·cm |
| Weighting Torque(dynamic) | ≥29kgf·cm |
| Pulse Width Range | 500-2500us |
| Operating Angle | 180° (500~2500 μs) |
| Mechanical Limit Angle | 220° |
| Return Angle Deviation | ≤1° |
| Output Shaft Type | 25T |
| Servic Support | OEM/ODM |
Product Profile
DSpower B009 digital servo boasts immense torque and lightning-fast response, enabling it to maintain smooth motion even under heavy workloads. It is exactly the same size and has 90% of the performance and build quality of the market leader, for less than half the price. Like the more expensive servo it has no geartrain slop.
● Industrial automation equipment: 35kgf.cm torque provides welding power for the robot arm, high precision gears ensure precise positioning, and is equipped with brushless motors to extend its service life.
● Cleaning robot: IP67 protection certification, full body waterproof and dustproof, 35KG high torque to overcome carpet and hardwood resistance, low-noise gear to avoid disturbing the workplace and home.
● Medical equipment: High precision gears can achieve safe surgical incisions and smooth operation, equipped with low noise design to improve patient comfort, and anodized aluminum body can withstand high pressure sterilization treatment.
● 35KG torque and high precision control: Anti disengagement technology can handle 35KG loads, such as robot arm lifting and cleaning robot brush drive. High precision gear design ensures precise operation of joints in industrial assembly and surgical robots

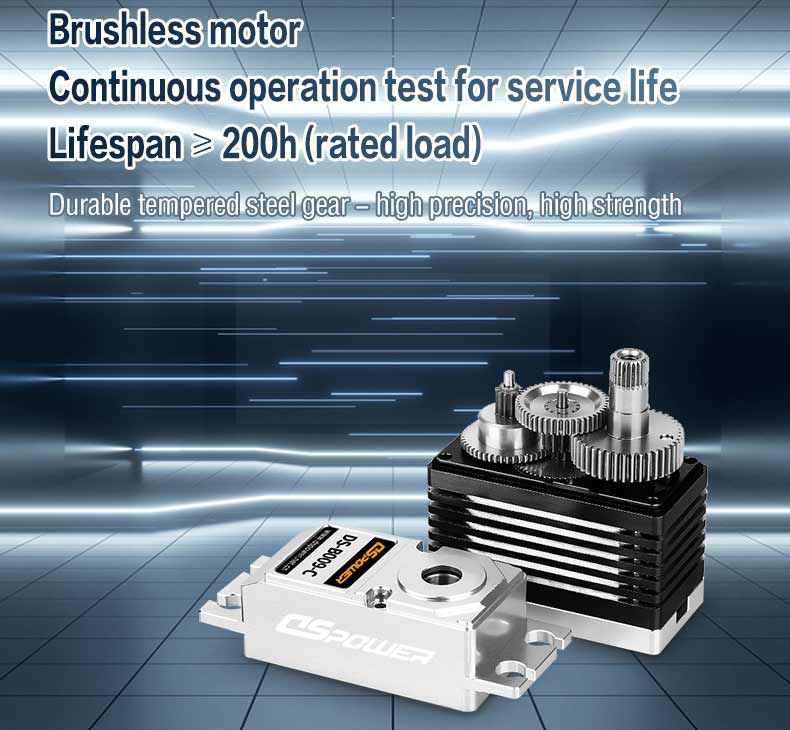

● Longer service life: The brushless motor design eliminates the wear and tear of the sweeping robot brush, reducing maintenance downtime by 40%, making it ideal for industrial automation equipment and sweeping robots that require long term stability.
● Intelligent protection and quiet operation: Anti scald and anti shake technology can automatically cut off power during downtime, such as conveyor belt blockage and cleaning brush blockage of the scanning robot, to prevent damage. Low noise operation, suitable for hospital operating rooms and home cleaning robots

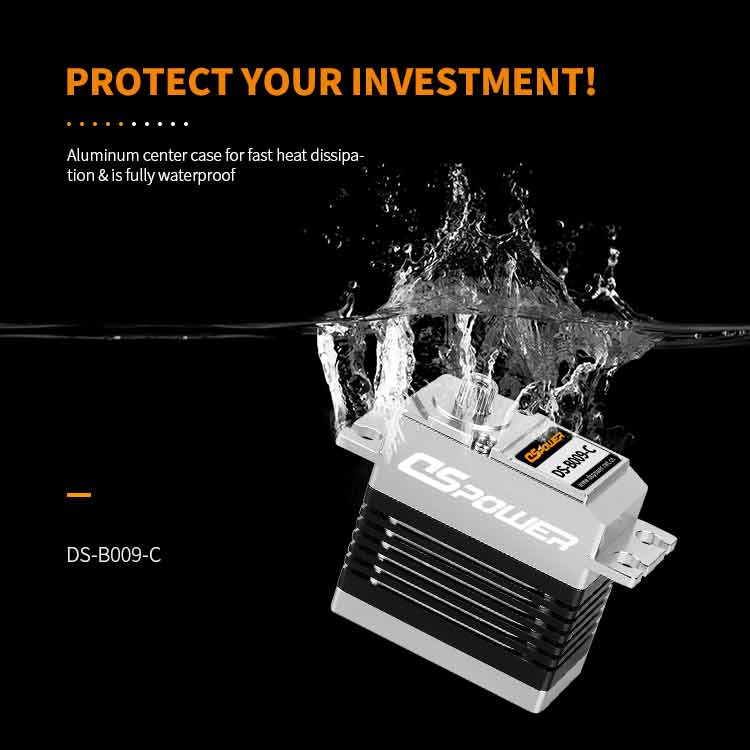

● CNC aluminum durability: The anodized aluminum shell design is corrosion resistant, heat resistant, and impact resistant, and can withstand industrial dust, cleaning chemicals, and medical disinfection. Efficient heat dissipation body can maintain motor cooling during continuous conveyor sorting and long-term use of surgical robots.
Highlights of Our Servos
Self-developed protection system of mechanical transmission and electric drive to utilize the best function of the servo.
Product Certification
Passed CE,FCC, ROHS, REACH, EMC product certification and more than 100+ patents.
Our Service Process
FAQs
A: Yes, Through 10+years research and development of servo, De Sheng technical team is professional and experienced to offer customized solution for OEM,ODM customer, which is one of our most competitive advantage.
If above online servos does not match your requirements, please do not hesitate to send message to us, we have hundreds of servos for optional, or customizing servos based on demands, it is our advantage!
Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.
Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
Order less than 5000pcs, it will take 3-15 business days.
About DSpower
DSpower was founded in May, 2013. The main R & D production and sales of Intelligent Robot servos, Drone/UAV servos, STEM Building Block servo etc. We have more than 500+ employees, including more than 50+ R&D personnel, more than 50 quality inspection personnel, with more than 100+ patents; IS0:9001 and IS0:14001 certified enterprises. The maximum daily production capacity is more than 50,000 pieces.
What Sets Our Factory Unique?
12+ years experience, self-developed protection system, automated production, professional customized support
Unique Quality Inspection Equipment.
We have advanced CMM testing equipments, exclusive developed clutch structure testing equipments, spectral analyzing instruments and other routine testing equipments to ensure that the quality of our products meets high quality standards.
More Than 50+ R&D Team Support Customization
We have an experienced R&D team of more than 50 members to provide full technical support from prototype customization to mass production of micro servos for our customers worldwide. After more than 12 years of development, our team has been awarded more than 100+ patents.
Automated Production
Our factory has more than 30 production lines, with many intelligent equipments such as Japan HAMAI CNC type automatic hobbing machine, Japan Brother SPEEDIO high-speed drilling and tapping CNC machining center, Japan imported NISSEI PN40, NEX50 and other high-precision injection molding machines, automatic shaft pressing machine, and center shaft into the shell machine. The daily output is up to 50,000 pieces and the shipment is stable.
International Certification & High Quality
Passed FCC, CE, ROHS, REACH, EMC product certification and more than 100+ patents.
-
