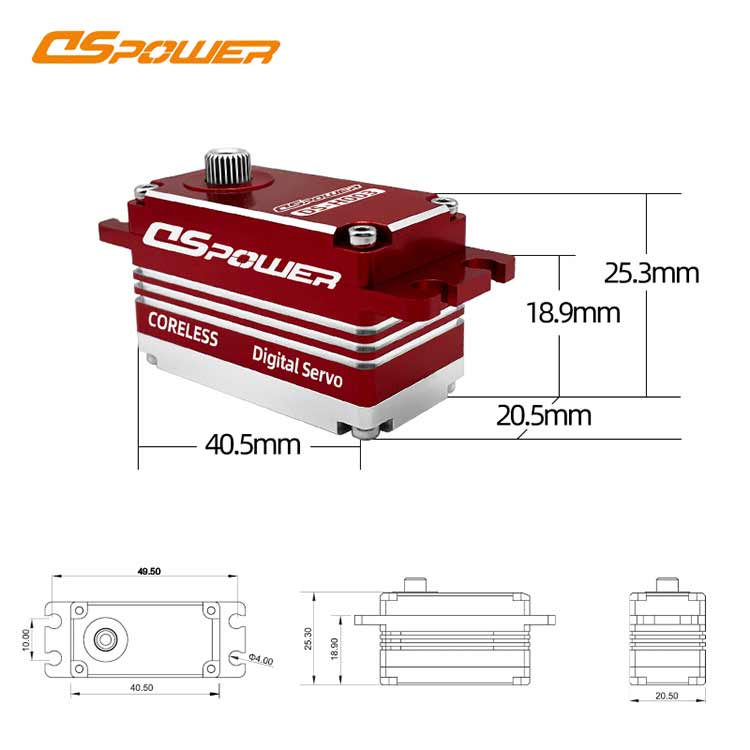

16kg Low Profile Waterproof Steel Gear 25T Digital Servo DS-H003
The H003C boasts an ultra-fast response time of 0.08 seconds and a high torque of 16 kg, allowing it to maintain remarkably smooth operation even under heavy loads. It is exactly the same size and offers 90% of the performance and build quality of the market leader, at less than half the price.
Features

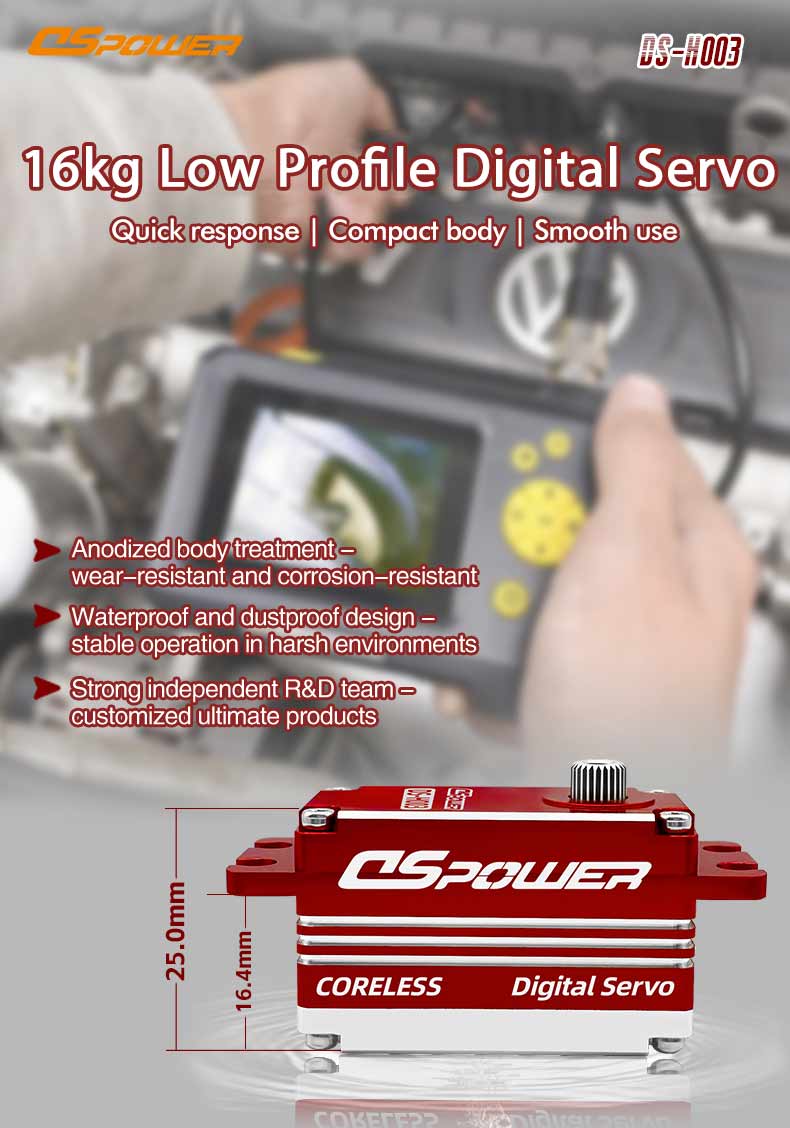

● Ultra low profile： Very suitable for devices with limited space, such as industrial endoscopes and smart pharmacy cabinets. Its compact design can be integrated into a compact mechanical structure without sacrificing torque

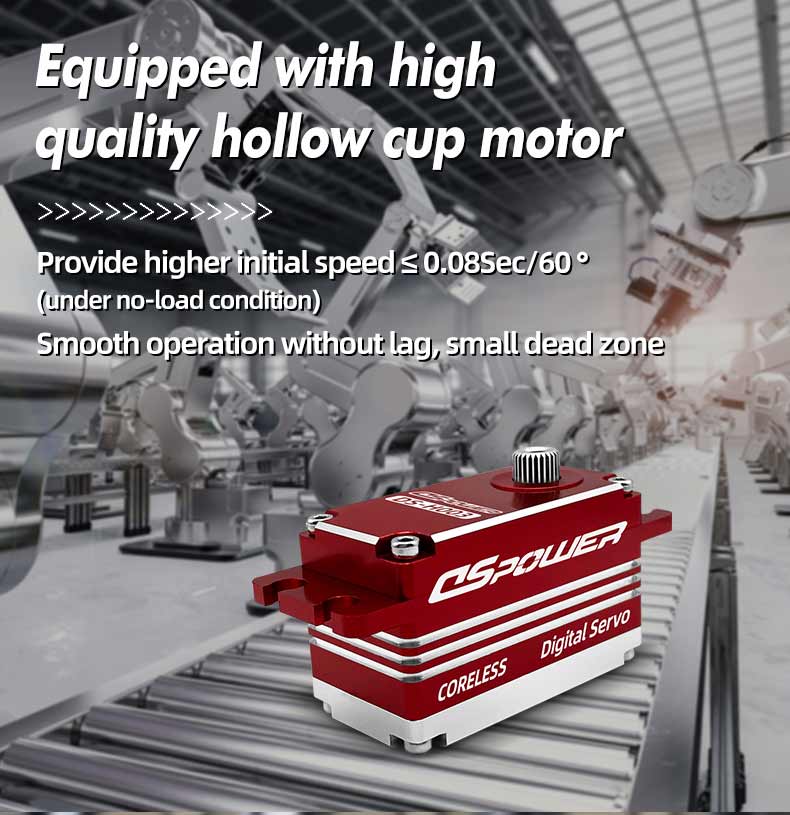

● Fast Coreless Motor: DS-H003 is equipped with a high quality coreless motor that provides an ultra fast response time of 0.08 sec/60 °. This ensures real-time accuracy for key tasks such as industrial endoscope lens adjustment, rehabilitation robot joint movement, and high-speed automatic sorting in industrial environments.
● 15KG torque and high precision gear: 16kgf.cm high torque provides powerful power to handle heavy objects, such as supporting patient movement in rehabilitation equipment or activating doors on smart pharmacy cabinets with weighted drug storage. High precision gear design ensures precise door drive in robot assembly and intelligent cabinets in industrial automation
● Intelligent reliability: Anti burn and anti shake technology can prevent the motor from burning out in a stall state, ensuring stable operation even in environments prone to vibration. The low noise gear ensures quiet operation and is suitable for noise sensitive environmentssuch as rehabilitation equipment and smart medicine cabinets.
Operating Voltage: 6-8.4V DC
Standby Current: ≤15 mA
No Load Speed: ≤0.08sec/60°
Stall Current: ≤4.5A
Stall Torque: ≥16 kgf.cm
Rotating Direction: CCW
Operating Travel Angle: 300°
Mechanical Limit Angle: Unlimited
Angle deviation: ≤1°
Weight: 58g
Motor Type：Coreless Motor
Communication Interface: PWM
Gear Set Material: Steel Gear
Case Material: Aluminum Alloy Case
Waterproof rating：IP67
Output shaft specifications：25T
Application Scenarios
● Industrial Endoscopes：The low profile design fits slender endoscope shafts, while the fast response time enables real-time control of the lens.
● Industrial automation equipment: A torque of 16kgf.cm provides power for robot fixtures and elevators, while high-precision gear accuracy ensures perfect part alignment. Anti burn technology supports continuous operation without shutting down.

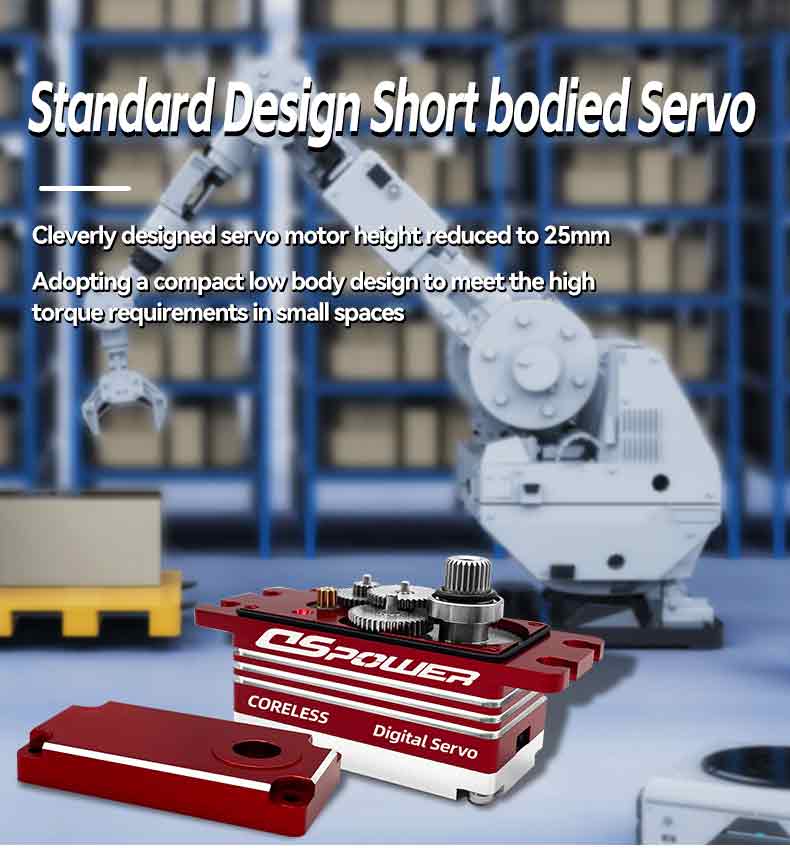

● Smart Pharmacy Cabinets: The 25mm body height solves the problem of internal storage space. Low noise operation can prevent patients from developing resistance emotions, and the IP67 anodized shell can resist cleaning agents and moisture, ensuring long-term reliability.
● Rehabilitation equipment: A high torque of 16kg supports the weight and movement of the patient's body, while high-precision gear control can prevent injury. Low noise can improve patient comfort, and the sturdy design can withstand frequent use in therapeutic environments.
hitec DB778WP Low Profile servo and kst BLS159 Low Profile digital servo
FAQ
A: We are a servo manufacturer in China. We specialized in servos design/ manufacturing for more than 10 years.
A: Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.
A: Yes, we have 100% test before delivery. If you need any assistance, please feel free to contact us.
-
