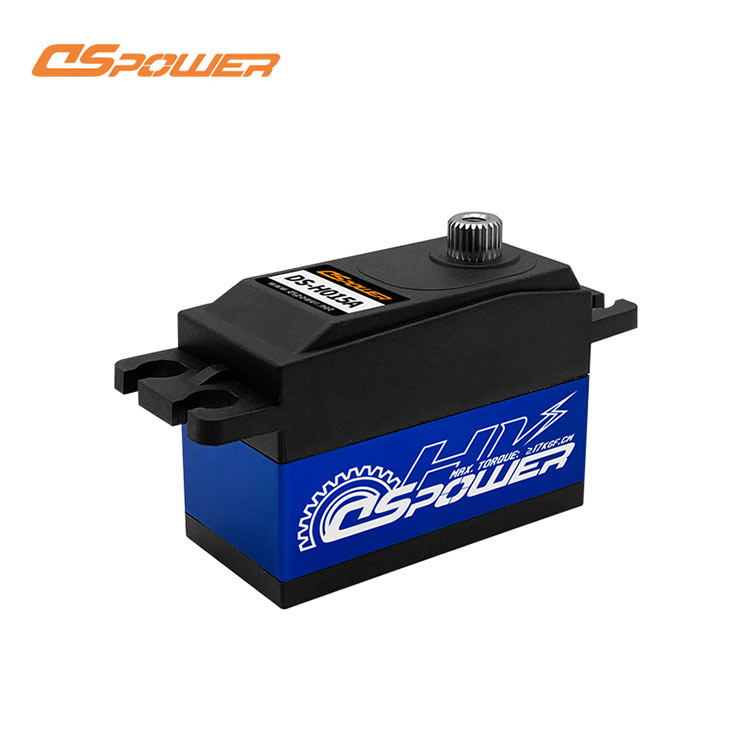

16kg Steel Gear High Torque 25T Low Profile Digital Servo DS-H015A
Product Info
| Brands | DSpower |
| Product Model | DS-H015A |
| Weight | 42.5g |

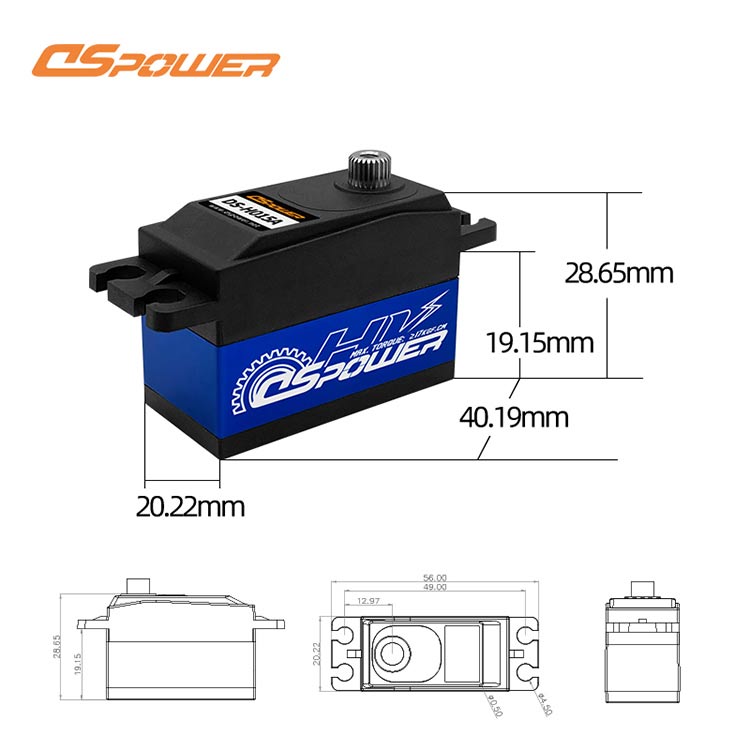

| Size | 40.19*20.22*28.65mm |
| Interface | Digital servo;PWM |
| Case Material | Aluminum Middle |
| Gear Type | Full Steel Gear |
| Motor Type | Cored Motor |
| Rated Voltage | 6-8.4V |
| Standby Current | ≤20 mA |
| No Load Current | ≦200mA |
| No Load Speed | ≦0.12sec/60° |
| Rated Torque | ≥4kgf·cm |
| Rated Current | ≦1A |
| Stall Current | ≦4.2A |
| Stall Torque(static) | ≥16kgf·cm |
| Weighting Torque(dynamic) | ≥7kgf·cm |
| Pulse Width Range | 500-2500us |
| Operating Angle | 180° (500~2500 μs) |
| Mechanical Limit Angle | Unlimited |
| Return Angle Deviation | ≤1° |
| Output Shaft Type | 25T |
| Servic Support | OEM/ODM |
Product Profile
The "low profile design" and "thin" features of DS-H015A give it significant advantages in space constrained applications. In the field of automation, such as AI-powered Thermal Camera or compact packaging equipment, space utilization is crucial.
● Industrial automation equipment: Robotic arms, picking and placing systems, conveyor actuators. The compact design saves space on the production line, and the high torque of 16kgf · cm can effectively handle heavy loads;
● Temperature sensors: Articulated probes in industrial furnaces, medical infrared thermometers. The thin semi aluminum frame body can be easily integrated into small devices, and the silent gear operates smoothly, avoiding patients' resistance. Precise movement ensures accurate readings.
● Valve drive system: Controls the flow in oil and gas pipelines, water treatment valves. 16kgf.cm high torque can easily overcome high pressure resistance, steel gears can withstand frequent cycles, and stall protection can prevent damage caused by debris or blockage.
● RC models: Steering servo system and suspension actuators for 1/10 and 1/8 ratio RC vehicles. High torque can easily handle climbing steep slopes and rapid turns; High response speed can improve the steering speed and feedback speed of RC vehicles, and the anti disengagement gear protects the gear from impact during hard landing.
kst X20-1806 Low profile Servo and hitec DB778WP Low profile Servo
● High precision and high torque: DS-H015A has a large torque of 16kgf.cm, which can easily drive RC cars and industrial valves
● Compact Design for Tight Spaces：Low Profile Half Aluminum Frame: At just 28.65mm height, it fits into space constrained systems like industrial robotic joints, valve actuators, and miniaturized temperature sensors.
● Durable Gearing Technology：Precision-machined gears resist wear and tooth stripping, even under extreme stress such as RC crashes, industrial vibrations.
● Precise and quiet operation: The smooth operation of the silent gear is suitable for noise sensitive environments such as medical thermometers and industrial laboratories.
Highlights of Our Servos
Self-developed protection system of mechanical transmission and electric drive to utilize the best function of the servo.
Product Certification
Passed CE,FCC, ROHS, REACH, EMC product certification and more than 100+ patents.
Our Service Process
FAQs
A: Yes, Through 10+years research and development of servo, De Sheng technical team is professional and experienced to offer customized solution for OEM,ODM customer, which is one of our most competitive advantage.
If above online servos does not match your requirements, please do not hesitate to send message to us, we have hundreds of servos for optional, or customizing servos based on demands, it is our advantage!
Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.
Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
Order less than 5000pcs, it will take 3-15 business days.
About DSpower
DSpower was founded in May, 2013. The main R & D production and sales of Intelligent Robot servos, Drone/UAV servos, STEM Building Block servo etc. We have more than 500+ employees, including more than 50+ R&D personnel, more than 50 quality inspection personnel, with more than 100+ patents; IS0:9001 and IS0:14001 certified enterprises. The maximum daily production capacity is more than 50,000 pieces.
What Sets Our Factory Unique?
12+ years experience, self-developed protection system, automated production, professional customized support
Unique Quality Inspection Equipment.
We have advanced CMM testing equipments, exclusive developed clutch structure testing equipments, spectral analyzing instruments and other routine testing equipments to ensure that the quality of our products meets high quality standards.
More Than 50+ R&D Team Support Customization
We have an experienced R&D team of more than 50 members to provide full technical support from prototype customization to mass production of micro servos for our customers worldwide. After more than 12 years of development, our team has been awarded more than 100+ patents.
Automated Production
Our factory has more than 30 production lines, with many intelligent equipments such as Japan HAMAI CNC type automatic hobbing machine, Japan Brother SPEEDIO high-speed drilling and tapping CNC machining center, Japan imported NISSEI PN40, NEX50 and other high-precision injection molding machines, automatic shaft pressing machine, and center shaft into the shell machine. The daily output is up to 50,000 pieces and the shipment is stable.
International Certification & High Quality
Passed FCC, CE, ROHS, REACH, EMC product certification and more than 100+ patents.
-
