High Quality 60KG Steel Gear Coreless 12V Dual Output Shaft Digital Servo DS-R006 Manufacturer and Supplier

60KG Steel Gear Coreless 12V Dual Output Shaft Digital Servo DS-R006

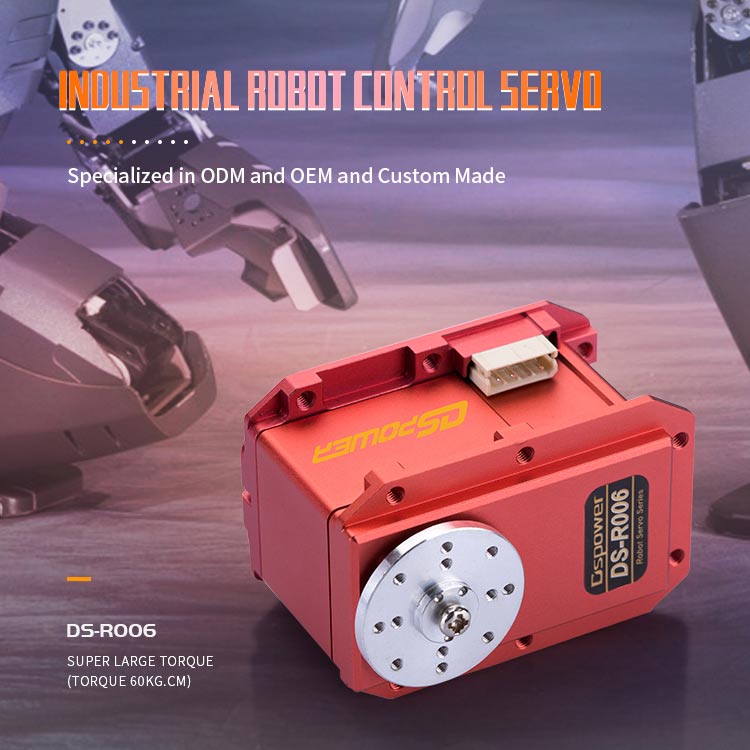

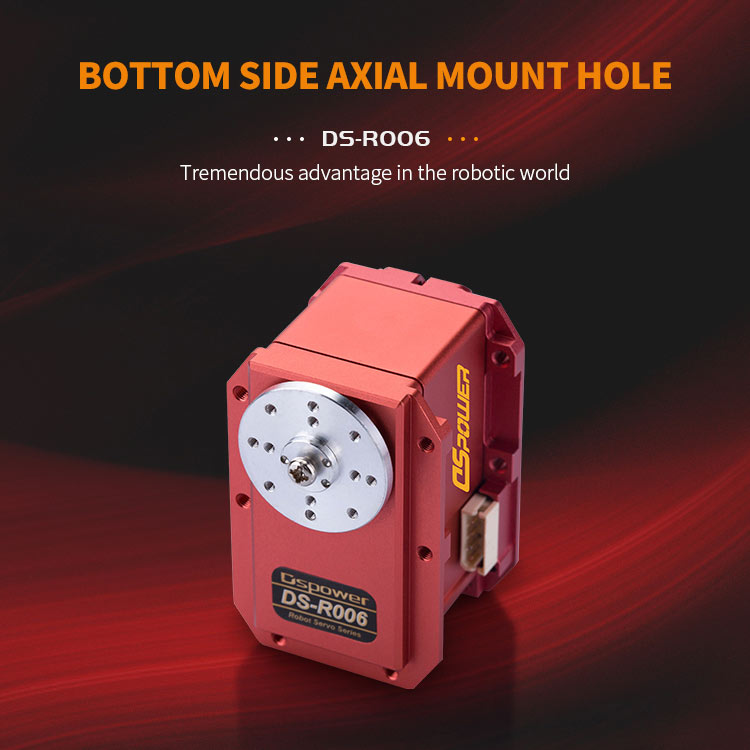

DSpower DS-R006 60kg Steel Gear Digital Servo is equipped with a coreless motor and an aluminum alloy housing, which can dissipate heat quickly and has a very long service life. It also uses dual output shafts and RS485 serial bus control, which can quickly feedback test data. RDS5160 60kg digital servo

● Aluminum Alloy Case+Steel Gear+Coreless Motor

● Adopt RS485 Serial BUS control mode, which can quickly feedback test data

● 58 kgf·cm Stall Torque+10-14.8V Operating voltage+Operating angle 300 Degrees

● Ideal Applications：Industrial Robotic Arms,Smart Robot and STEM Education

Send email to us

Product Detail

Product Tags

Product Detail

As a high performance dual output axis robot actuator, the DS-R006 Steel Gear Digital Servo has a high torque of 60kg and is compatible with RS485 serial bus control. It can provide real time feedback of test data and is composed of a metal case and a coreless motor, providing considerable heat dissipation.

Features

● High torque and high power：The DS-R006 can provide 60kg of high torque at 12V, ensuring that the multi-legged robot can quickly and powerfully support its own weight when adjusting its gait on complex terrain. It also has a fast response speed, making it very suitable for robots that move at high speed or quickly correct their posture.

● Compatible with RS485 serial bus control：DS-R006 adopts RS-485 serial bus control and supports half-duplex and multi-point network topology. When building a robot or robotic arm with high degree of freedom, it can greatly simplify the complex wiring harness and reduce the overall system weight. In terms of feedback data, it can provide angle, temperature, voltage, current and other data.

● High durability and thermal management：The DS-R006 utilizes a metal housing and steel gears, which not only withstands vibration and shock in industrial environments but also, more importantly, provides excellent and rapid heat dissipation. Furthermore, its square design makes it easier to securely integrate into the robot's structural frame via brackets than a traditional round housing, helping to improve joint stiffness and load bearing capacity.

Application

● Cobots：The DS-R006's 60kg high torque and RS485 serial bus control method can help collaborative robots achieve smooth and non-obtrusive movement, which is a key factor in ensuring human safety in high quality cobots. In addition, the square physical design makes the DS-R006 easier to integrate into the modular joint structure of collaborative robots, providing structural rigidity advantages.

● Bionic robot: The 60KG torque and fast response speed of DS-R006 can support the rapid generation of complex gaits and can quickly respond to pitch or roll movements to maintain the stability of the robot. And through the RS485 serial bus control, it allows the robot platform to connect dozens of actuators through a simple daisy chain, greatly reducing the complexity and weight of the wiring.

● Industrial Robotic Arm: The all metal construction of the DS-R006 ensures that the servo system is resistant to shock and vibration common in factory or automated warehouse environments. This helps reduce unexpected downtime and lowers maintenance frequency, effectively addressing vibration and continuous mechanical stress generated by the robotic arm joints.
ds servo RDS5160 60kg digital servo and Hiwonder LD-260MG Digital Servo
