75kg Heavy Duty Steel Gear Brushless Standard Servo DS-R026

DS-R026 BLS3375 75KG Brushless Standard Servo is a reliable and robust servo with a metal casing, delivering excellent performance and strength. It is an ideal choice for applications requiring high torque and durability, ensuring smooth and precise control in diverse industrial settings.

●  IPX7 Aluminum Alloy Case+Steel Gear+RS485 BUS control

●  Equipped with Brushless Motor and Magnetic Encoder,Provide fast data feedback and long service life

●  75kgf·cm Stall Torque + 5-30V Operating Voltage + Operating Angle 360°

●  Ideal Applications:Warehouse Robots,Industrial Robotic Arms,Smart Robot and Drone


Product Detail

Product Tags

DS-R026 BLS3375 75KG Brushless Standard Servo is a high quality servo designed for robust performance and durability. With its sturdy metal casing, it provides reliable and precise control in various applications.



DSpower Digital Servo Motor

Features

●  High Torque Operation: With a powerful torque of 75kgf.cm, it meets the power requirements of heavy duty scenarios such as industrial automation equipment and robotic arms, ensuring efficient operation.

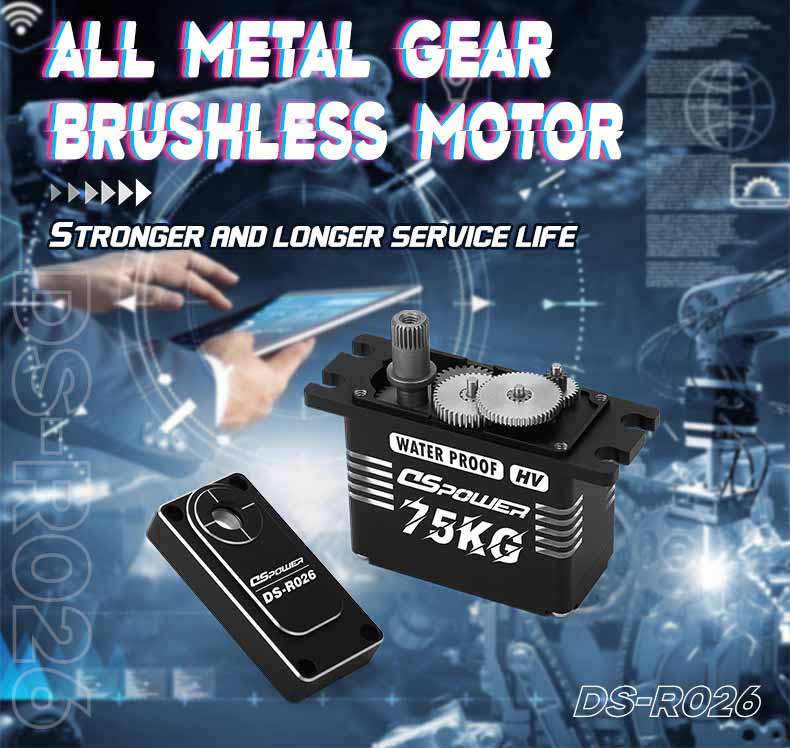

●  All Metal Body Structure: designed with steel reinforced gears to effectively resist impact; Aluminum alloy sealed body, waterproof and dustproof, suitable for harsh industrial environments and outdoor applications.

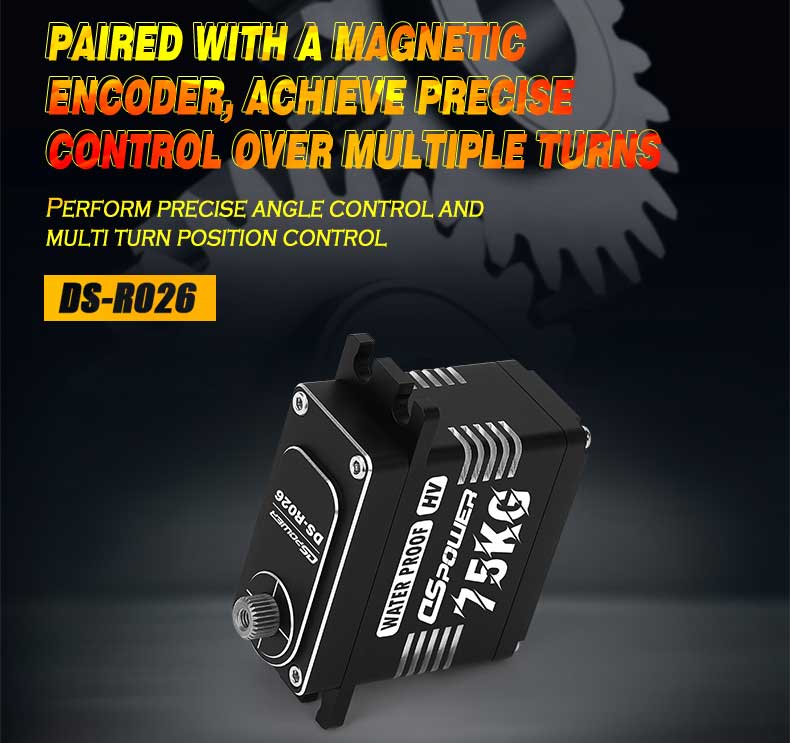

●  High Precision Control: equipped with a magnetic encoder to achieve precise position feedback and control, meeting the high precision requirements of scenarios such as drones and robots.

●  Advanced Communication Protocol: Supports RS-485 bus communication, strong anti interference ability, long signal transmission distance, suitable for large or distributed systems.

●  Brushless Motor Technology: Brushless design reduces wear and tear, extends service life, reduces maintenance costs, and is suitable for long-term continuous work scenarios.

Technical Specs

Operating Voltage: 5-30V DC
Standby Current: ≤30 mA
No Load Speed: ≤0.12sec/60°
Stall Current: ≤2.5A
Stall Torque: ≥80 kgf.cm
Rotating Direction: CW
Operating Travel Angle: 360°
Mechanical Limit Angle: Unlimited
Angle deviation: ≤1°
Weight: 95.5g
Motor Type:Brushless Motor
Communication Interface: CAN BUS/PWM/RS485 BUS/TTL BUS
Gear Set Material: Steel Gear
Case Material: Aluminum Alloy Case

DSpower Digital Servo Motor

Application Scenarios

●  Automation Systems: In automated machinery and systems, the 75KG servo can provide the necessary power and control for tasks such as material handling, assembly line operations, and packaging.

●  CNC Machines: The high torque servo is ideal for CNC (Computer Numerical Control) machines used in metalworking, woodworking, and other machining processes. It enables precise positioning and smooth motion control,ensuring accuracy and efficiency in cutting, milling, and shaping operations.

●  Aerial and Underwater Vehicles: The 75KG servo's robustness and high torque make it suitable for use in aerial and underwater vehicles. It can control the movement of wings, fins, or propellers, allowing for stable flight or propulsion in challenging environments.

●  Industrial Manipulators: Industrial manipulators, such as those used in material handling or assembly tasks, benefit from the 75KG servo's strength and precision. It can handle heavy objects with ease and perform intricate motions with accuracy, enhancing overall productivity in industrial settings.

●  Robotics Competitions: The 75KG servo is often employed in robotics competitions, where precise control and high torque are crucial for successful performance. It can power robot limbs, lifting mechanisms, or specialized tools, enabling participants to tackle complex challenges effectively.

●  Motion Simulators: In entertainment or training applications, the high torque servo finds use in motion simulators, such as flight or driving simulators.It provides realistic and immersive motion feedback, enhancing the user's experience and training effectiveness.

DSpower Digital Servo Motor

FAQ

Q. Can i ODM/ OEM and print my own logo on the products?

A: Yes, Through 10years research and development of servo, De Sheng technical team is professional and experienced to offer customized solution for OEM,ODM customer, which is one of our most competitive advantage.
If above online servos does not match your requirements, please do not hesitate to send message to us, we have hundreds of servos for optional, or customizing servos based on demands, it is our advantage!

Q. Servo Application?

A: DS-Power servo have wide application, Here are some of applications of our servos: RC model, education robot, desktop robot and service robot; Logistics system: shuttle car, sorting line, smart warehouse; Smart home: smart lock, switch controller; Safe-guard system: CCTV. Also agriculture, health care industry, military.

Q: For a customized servo, how long is the R&D time (Research& Development time)?

A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
