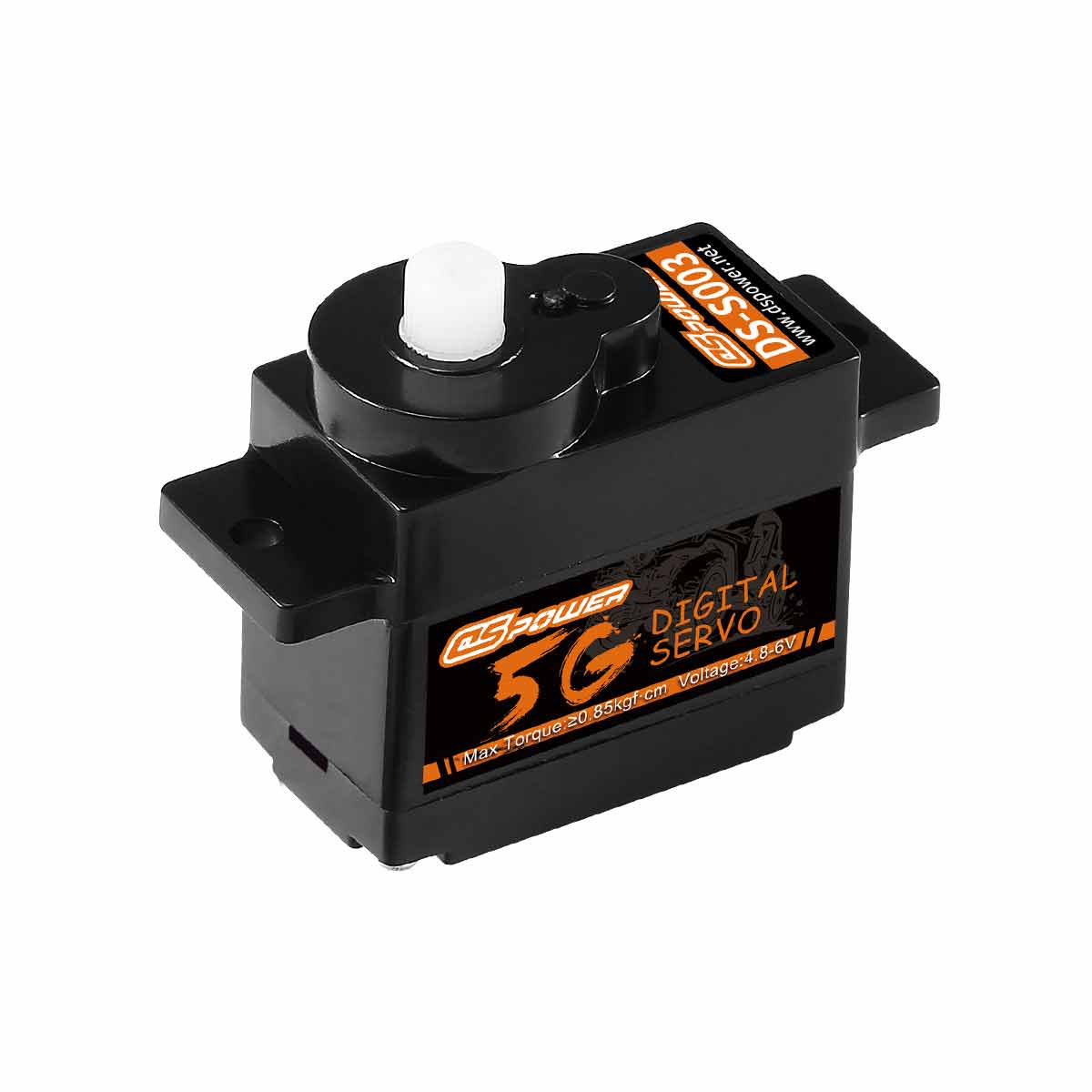

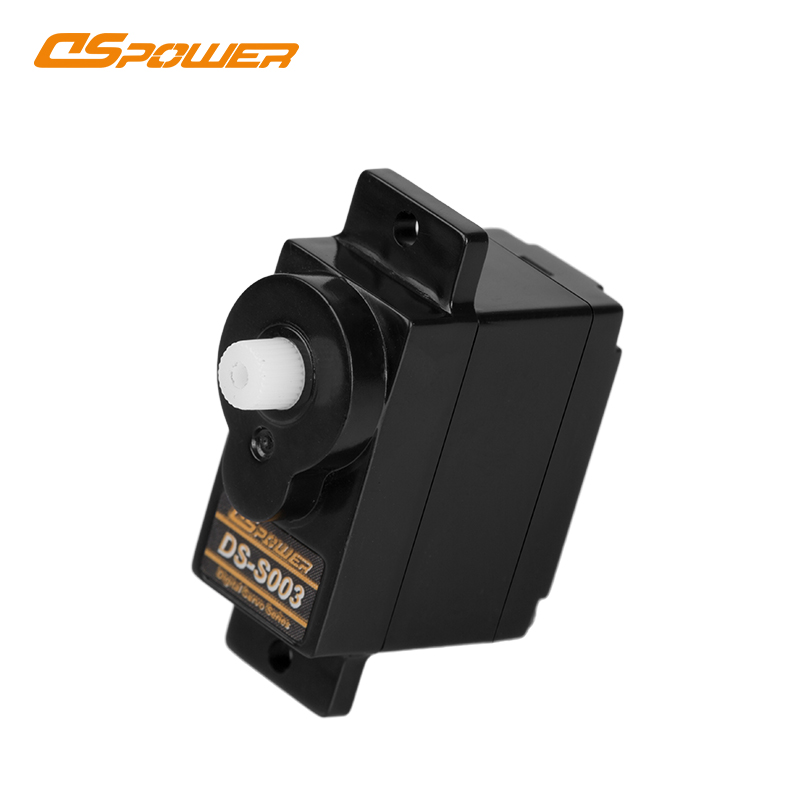

5g Plastic Gear Coreless Motor 28T High Speed Mini Servo DS-S003
Product Info
| Brands | DSpower |
| Product Model | DS-S003 |
| Weight | 5.0g |

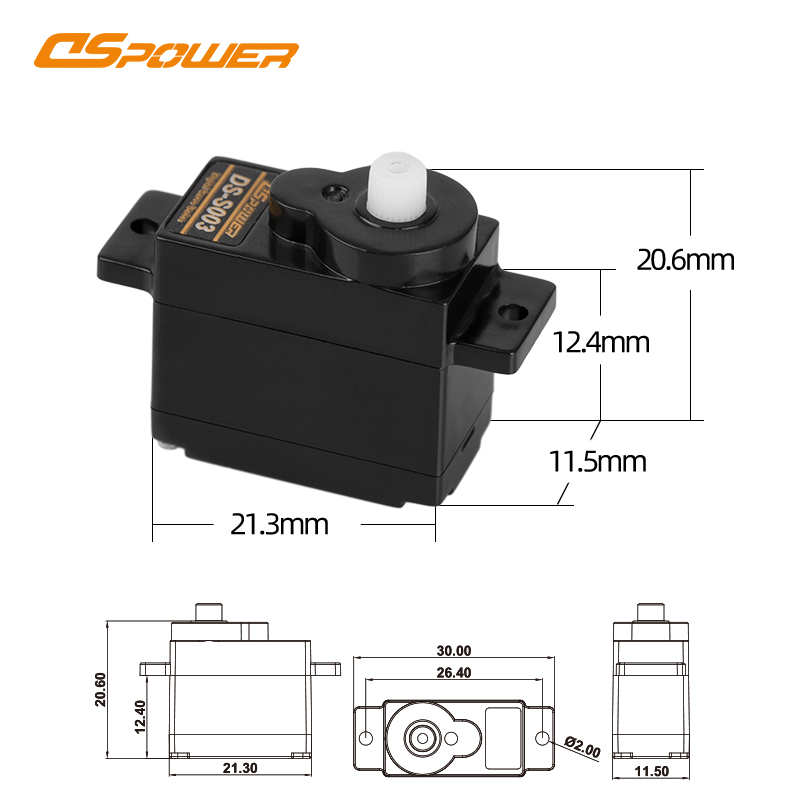

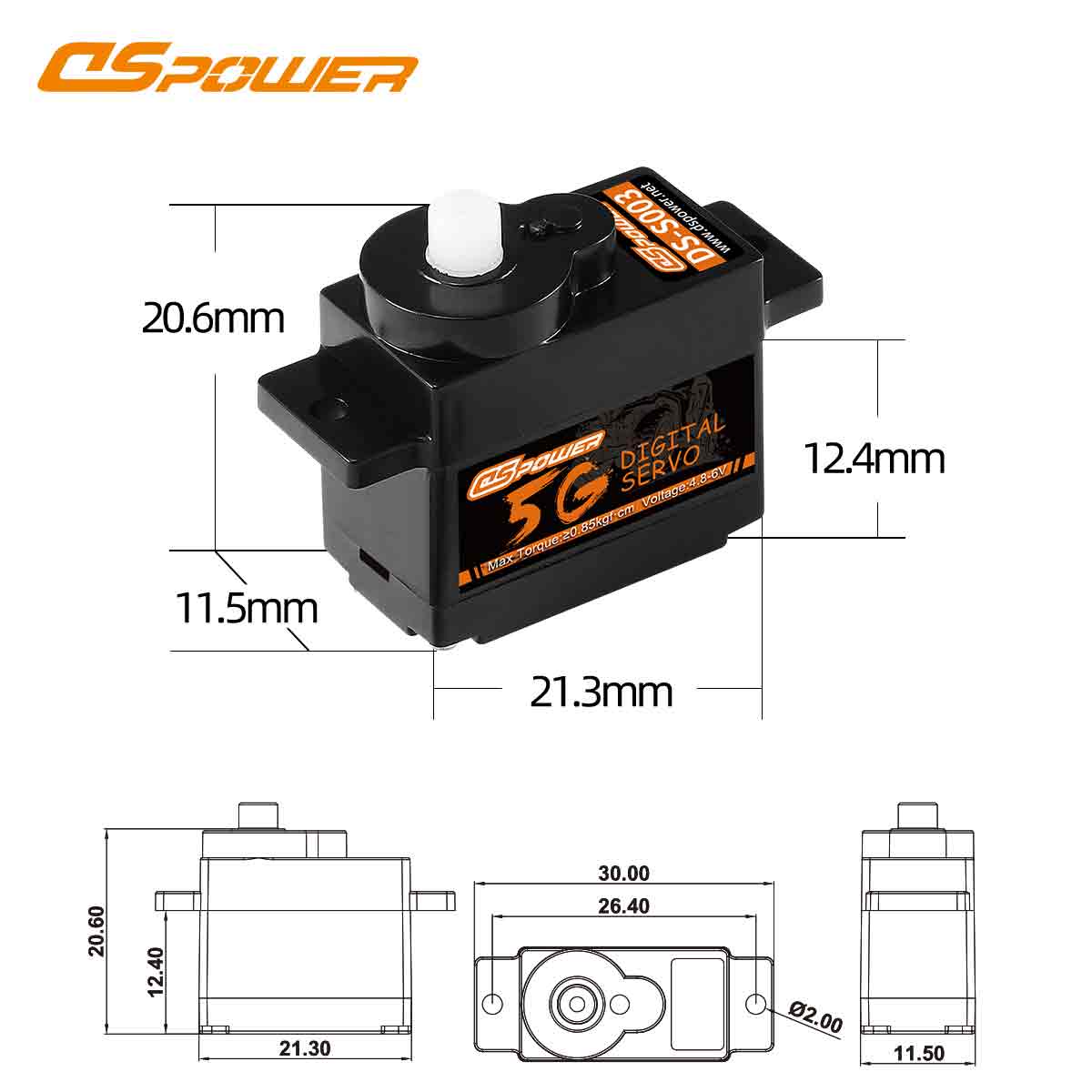

| Size | 21.3*11.5*20mm |
| Interface | Digital servo;PWM |
| Case Material | Plastic |
| Gear Type | Full Plastic |
| Motor Type | Coreless Motor |
| Rated Voltage | 4.8-6V |
| Standby Current | ≤30 mA |
| No Load Speed | ≦0.08sec/60° |
| Rated Torque | ≥0.2kgf·cm |
| Stall Current | ≦900mA |
| Stall Torque(static) | ≥0.8kgf·cm |
| Weighting Torque(dynamic) | ≥0.5kgf·cm |
| Pulse Width Range | 500-2500us |
| Operating Angle | 300° (500~2500 μs) |
| Mechanical Limit Angle | Unlimited |
| Return Angle Deviation | ≤1° |
| Output shaft specifications | 28T |
| Servic Support | OEM/ODM |
Product Profile
DSpower S003 5g Plastic Gear Digital Servo is a specialized servo motor designed for various applications, emphasizing a lightweight and cost-effective solution while still providing precise control. This servo is distinguished by its compact size, plastic gears, and digital control technology, making it ideal for a range of projects where weight, size, and accuracy are key considerations.
DSpower S003 5g Plastic Gear Digital Servo is particularly suitable for applications where size, weight, and precise control are critical factors. Some of the common scenarios where this type of servo motor finds application include:
● Biomimetic Robot: The servo's small size and lightweight make it an ideal choice for Biomimetic Robot projects, where space is limited, and weight must be minimized for efficient operation.
● Miniature RC Aircraft and Drones: It is commonly used in small-scale remote-controlled aircraft, drones, and quadcopters, where weight directly impacts flight performance and battery life.
● Wearable Devices: The servo's compact form factor makes it suitable for wearable technology applications, such as small robotic components integrated into wearable devices or smart clothing.
● Tiny Mechanical Systems: It can be used in miniature mechanical systems, such as small-scale grippers, actuators, or sensors, where precise motion control is required in a limited space.
● Ultra lightweight design: With a weight of only 5 grams, it greatly reduces the load on remote-controlled aircraft and drones, optimizes flight performance, and is easy to integrate into desktop smart toys
● High precision control: using pure raw materials and high-precision plastic gears to ensure precise operation and minimal virtual position of ≤ 1 °, meeting the requirements of remote-controlled aircraft flight attitude adjustment

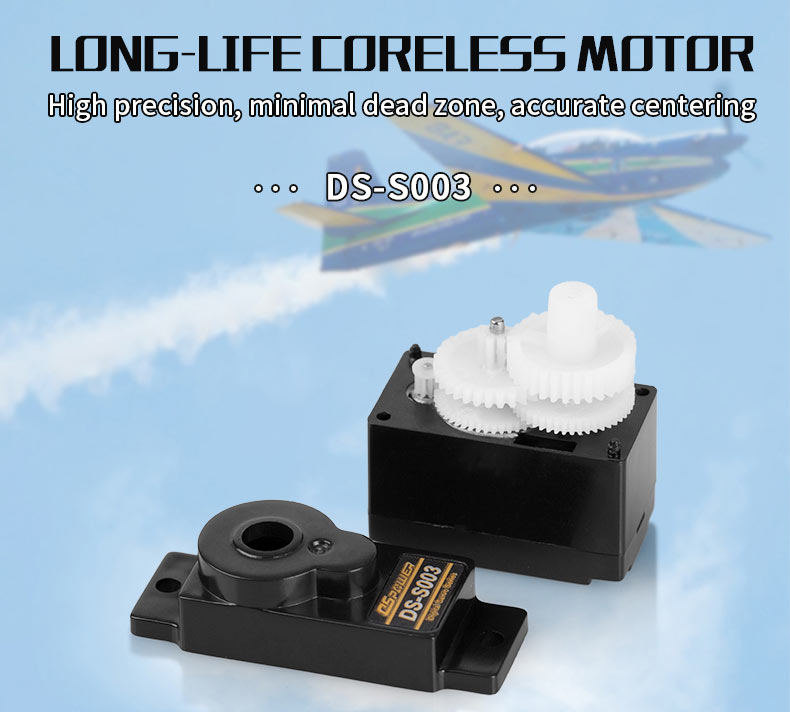

● Long life hollow cup motor: Durable and efficient, reducing replacement frequency and maintenance costs, suitable for long-term high-frequency use scenarios
● Quick response: The digital servo characteristics make the response speed 0.07sec/60 ° faster, enabling real-time execution of control commands and perfect adaptation to remote-controlled aircraft
Highlights of Our Servos
Self-developed protection system of mechanical transmission and electric drive to utilize the best function of the servo.
Product Certification
Passed CE,FCC, ROHS, REACH, EMC product certification and more than 100+ patents.
Our Service Process
FAQs
A: Yes, Through 10+years research and development of servo, De Sheng technical team is professional and experienced to offer customized solution for OEM,ODM customer, which is one of our most competitive advantage.
If above online servos does not match your requirements, please do not hesitate to send message to us, we have hundreds of servos for optional, or customizing servos based on demands, it is our advantage!
Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.
Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
Order less than 5000pcs, it will take 3-15 business days.
About DSpower
DSpower was founded in May, 2013. The main R & D production and sales of Intelligent Robot servos, Drone/UAV servos, STEM Building Block servo etc. We have more than 500+ employees, including more than 50+ R&D personnel, more than 50 quality inspection personnel, with more than 100+ patents; IS0:9001 and IS0:14001 certified enterprises. The maximum daily production capacity is more than 50,000 pieces.
What Sets Our Factory Unique?
12+ years experience, self-developed protection system, automated production, professional customized support
Unique Quality Inspection Equipment.
We have advanced CMM testing equipments, exclusive developed clutch structure testing equipments, spectral analyzing instruments and other routine testing equipments to ensure that the quality of our products meets high quality standards.
More Than 50+ R&D Team Support Customization
We have an experienced R&D team of more than 50 members to provide full technical support from prototype customization to mass production of micro servos for our customers worldwide. After more than 12 years of development, our team has been awarded more than 100+ patents.
Automated Production
Our factory has more than 30 production lines, with many intelligent equipments such as Japan HAMAI CNC type automatic hobbing machine, Japan Brother SPEEDIO high-speed drilling and tapping CNC machining center, Japan imported NISSEI PN40, NEX50 and other high-precision injection molding machines, automatic shaft pressing machine, and center shaft into the shell machine. The daily output is up to 50,000 pieces and the shipment is stable.
International Certification & High Quality
Passed FCC, CE, ROHS, REACH, EMC product certification and more than 100+ patents.
-
