6kg MG90S Metal Gear Coreless TTL Serial BUS Digital Servo DS-S009A

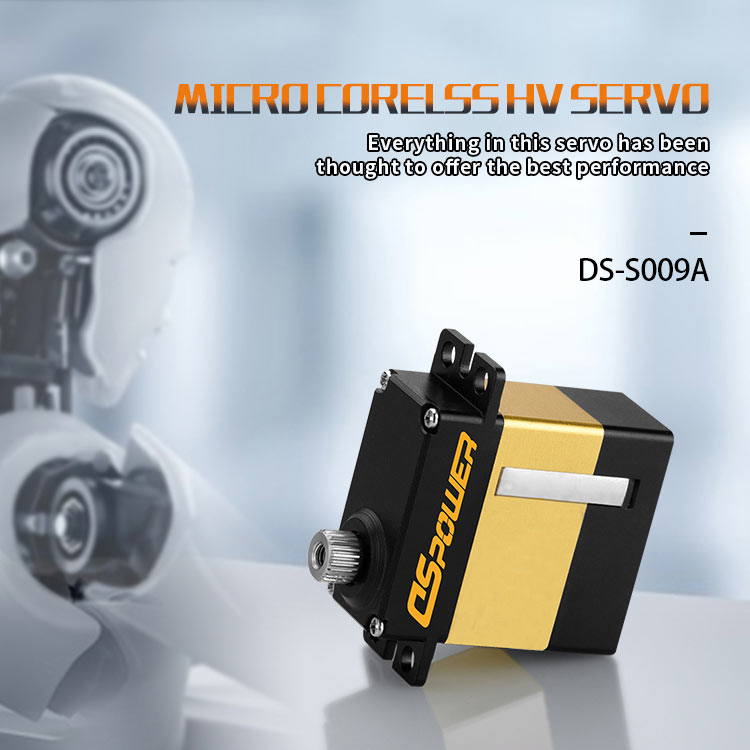

DSpower S009A MG90S Metal Gear Digital Servo is equipped with a coreless motor and an aluminum alloy case. Its size is similar to that of a 9g servo, but its torque far exceeds that of a 9g servo. It also supports multi serial port collaborative customization, making it ideal for micro applications that require high torque.

● Aluminum Alloy Case+Metal Gear+Coreless Motor

● Supports various Serial BUS Control, PWM, TTL, RS485 and CAN BUS

● 6 kgf.cm Stall Torque+6-8.4V Operating Voltage+Operating Angle 180°

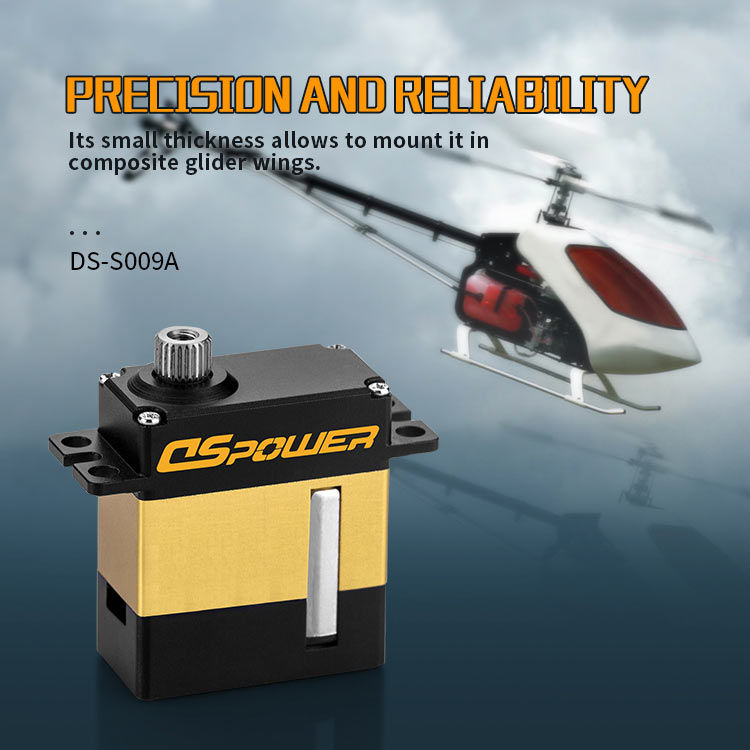

● Ideal Applications:Smart Robot,Drone Gimbal,RC Helicopter and Monitoring Sensor Control

Send email to us

Product Detail

Product Tags

Product introduce

DSpower S009A MG90S Metal Gear Digital Servo is a 6KG all metal upgraded 9g servo motor, equipped with a high torque hollow cup motor and a fast cooling metal case, which can achieve long term operation and complex actions. It can also support various serial buses and can be applied to robot dogs, model drones, micro control automation, and smart homes

Feature

● High Torque and Lightweight ：With a torque of 6kgf·cm and a weight of only 16.5g, it is powered by a high torque coreless motor. This allows it to provide strong power while remaining lightweight, making it an excellent choice for applications where weight is a concern.

● All Metal Construction ：The servo features a full aluminum frame and precision metal gears . This all metal design ensures durability and long term performance, even in harsh environments. It can withstand the rigors of industrial use and rough handling .

● Multi protocol support: Compatible with multiple protocols, including PWM, TTL, RS485, and CAN. In addition to complete documentation and tools, this can also be integrated into various industrial automation systems and intelligent sensor networks, providing flexibility and convenience for different applications.

● Safety and Longevity ：The servo comes with electronic anti burn protection, including voltage protection, overheat protection, and stall protection. These features effectively protect the servo from damage, reducing maintenance requirements in commercial applications and ensuring its reliability in educational environments .

Get a Free Sample

Technical Specs

Operating Voltage: 6-8.4V DC
Standby Current: ≤25 mA
No Load Speed: ≤0.1sec/60°
Stall Current: ≤2.8A
Stall Torque: ≥9 kgf.cm
Rotating Direction: CCW
Operating Travel Angle: 280°
Mechanical Limit Angle: Unlimited
Angle deviation: ≤1°
Weight: 21.2g
Motor Type：Coreless Motor
Communication Interface: PWM
Gear Set Material: Metal Gear
Case Material: Aluminum Alloy Case

Application

● Machine Dogs ：It can drive the leg joints of machine dogs, whether they are research prototypes or DIY hobbyist projects. The high torque enables agile movement on uneven terrain, and the durable metal gears can withstand repeated motion.

● Aerial Drones:In aerial drones, it is used to control the ailerons and elevators. This is applicable for both hobby drones and commercial drones. The lightweight design of the servo helps maximize the payload capacity of the drone.

● Micro Control Automation :It powers small scale industrial machinery, such as conveyor belts and pick and place robots in electronics factories. The multi protocol compatibility allows it to connect to IoT systems, and its robust metal construction can withstand factory vibrations, ensuring stable and efficient operation in industrial settings.

● Smart Sensors :It controls sensor driven actuators, such as HVAC valves and security system motors, in smart buildings. The multi protocol support allows it to integrate with CAN networks, and the all metal design makes it resistant to dust and moisture, making it suitable for industrial sensor setups
