• Dspower micro Servo

Product

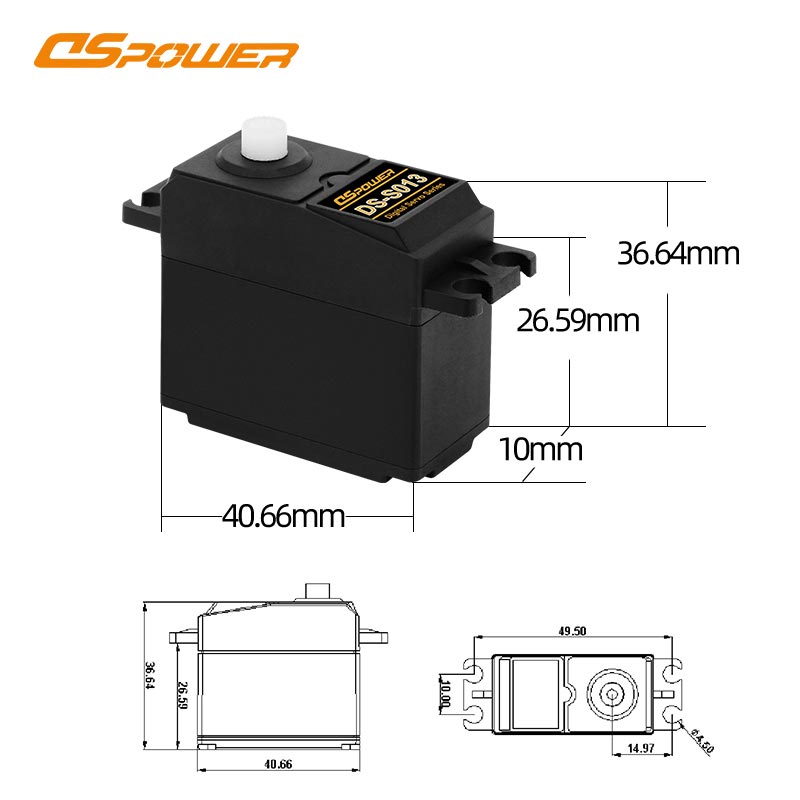

6kg Plastic Gear Low Noise 6V Standard Digital Servo DS-S013

DSpower S013 6kg Plastic Gear Standard Digital Servo is a type of servo motor that is designed to provide precise control and movement in various robotic and mechanical applications

●  Heat dissipation Plastic Case + long life Core Motor +Plastic Gear

●  Small virtual location+Low noise operation,Great for smart homes and robot

●  6kgf·cm Stall Torque+4.8-6V Operating Voltage+Operating Angle 180 Degrees



Product Detail

Product Tags









DSpower S013 6kg Plastic Gear Digital Servo is a type of servo motor that is designed to provide precise control and movement in various robotic and mechanical applications. It is capable of exerting a maximum torque of 6kgf.cm , making it suitable for medium sized projects that require moderate strength and accuracy.

DSpower-Digital-Servo-Motor

Features



●  High torque and precise control:Among servos of the same size, DS-S013 can provide a large torque of 6kg and has a virtual position of ≤1°, achieving precise control.

●  Durability and long life:DS-S013 is equipped with a long-life iron core motor and a heat-dissipating plastic shell, which can work for a long time. We have also carefully designed the gear system with imported potentiometers to prevent the gears from wearing out too quickly.

●  Security and Authentication:DS-S013 is CE, ROHS, FCC, and EMC certified, meeting safety and environmental standards. Its scald- and shock-resistant design prevents electrical overloads, making it a reliable choice for smart home devices.

●  Low Noise Operation: Equipped with plastic gears, it provides an ultra low noise operating environment, especially in residential environments, which can provide a higher end and less intrusive user experience for products such as smart locks and smart toilets.

DSpower-Digital-Servo-Motor

Application Scenarios

 ●  Robotics:With its high torque and high precision, it can be used to control the joints of robotic arms to achieve "grab and place" operations, and can also be used to build multi-legged walking robots to achieve precise control of complex gaits.

●  Smart Home Automation:DS-S013's low noise and high precision make it ideal for smart home applications, particularly smart door locks and smart toilets. In smart door locks, the DS-S013 provides sufficient torque for the lock tongue to ensure reliable opening and closing. In smart toilet applications, the DS-S013 serves as a key actuator, controlling the automatic opening/closing and slow-down functions of the toilet lid.

●  High Speed RC Car:6kg high torque, plastic housing, and iron core motor help maintain stable performance during intense off-road or high-speed driving, and can be used for vehicle steering and throttle control.

●   Modern cleaning equipment:With its low noise and high precision gears, it can easily serve as the lifting obstacle wheel or mop module in sweepers and floor scrubbers, easily crossing obstacles such as carpets and thresholds, and controlling baffles or scraping strips to block and scrape off garbage and debris on the roller brush, thereby improving the self cleaning ability of the floor scrubber.

DSpower-Digital-Servo-Motor

FAQ

Q. Can i ODM/ OEM and print my own logo on the products?

A: Yes, Through 10years research and development of servo, De Sheng technical team is professional and experienced to offer customized solution for OEM,ODM customer, which is one of our most competitive advantage.
If above online servos does not match your requirements, please do not hesitate to send message to us, we have hundreds of servos for optional, or customizing servos based on demands, it is our advantage!

Q. Servo Application?

A: DS-Power servo have wide application, Here are some of applications of our servos: RC model, education robot, desktop robot and service robot; Logistics system: shuttle car, sorting line, smart warehouse; Smart home: smart lock, switch controller; Safe-guard system: CCTV. Also agriculture, health care industry, military.

Q: For a customized servo, how long is the R&D time (Research& Development time)?

A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
