High Quality 15kg Metal Gear MG996R Standard Digital Servo DS-S015M-C Manufacturer and Supplier

15kg Metal Gear MG996R Standard Digital Servo DS-S015M-C

The MG996R DS-S015M-C 15kg Metal Gear Standard Digital Servo is made entirely of a waterproof plastic shell and houses the core motor. This combination greatly enhances its heat dissipation. It is similar in size to the Towerpro MG996R, but the S015M-C has greater torque and costs less than half the price!

● Plastic Case+Full Body Waterproof+All Metal Gear

● Featuring metal bearings and a core motor, it offers longer continuous operating time and considerable heat dissipation.

● 15 kgf.cm Stall Torque+4.8-6V Operating Voltage+Operable angle 180°

● Ideal Applications：Smart Robot Joints,1/10 Buggy Steering,STEM Education and Washing Machine Filter

Send email to us

Product Detail

The DS-S015M-C 15kg metal gear standard digital servo boasts an excellent waterproof and heat dissipating shell and is equipped with a core motor with an ultra long lifespan. Its size is remarkably similar to the standard MG996R, but its price is less than half that of the latter. It is ideal for intelligent robot joints, 1/10 scale buggy steering systems, STEM education, and washing machine filters.

Features

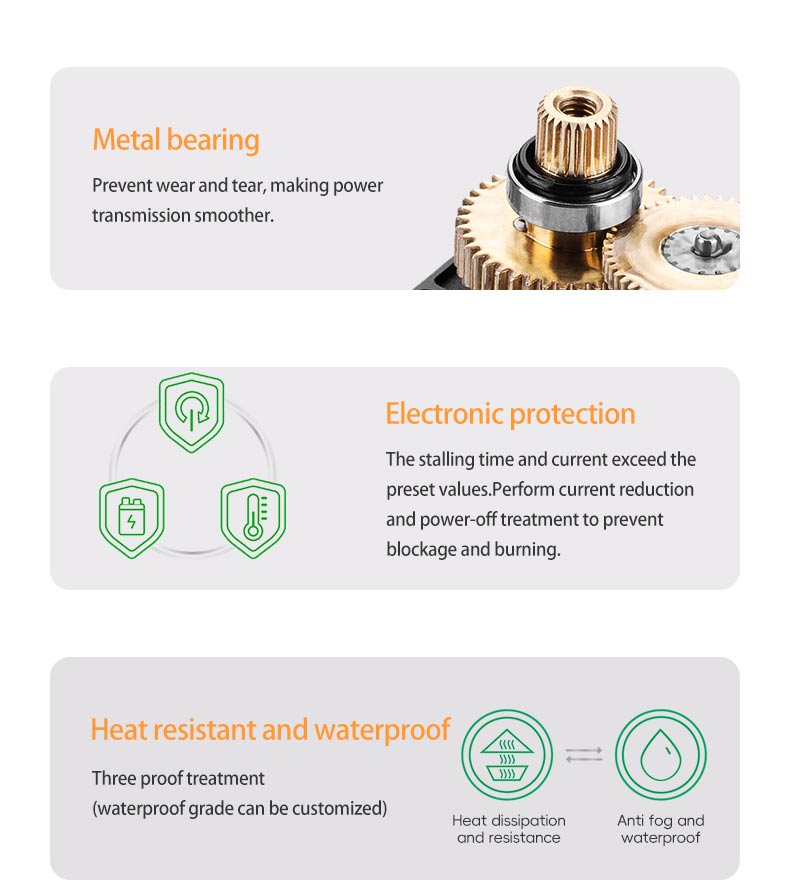

● High torque and durability: 15kgf.cm torque can easily drive heavy duty applications such as robotic arms and RC car steering, and metal gears ensure tight engagement, even in RC off-road collisions or robot joint movements, resisting wear and tooth loss. Metal bearings can reduce friction, achieve smooth power transmission, and extend service life

● Accurate and quiet operation: Imported high-precision potentiometer, supporting magnetic encoder upgrade. It ensures precise movement of robot assembly and smooth opening and closing of smart toilets. Low noise gears are very suitable for quiet environments such as smart curtains in bedrooms and medical robots.

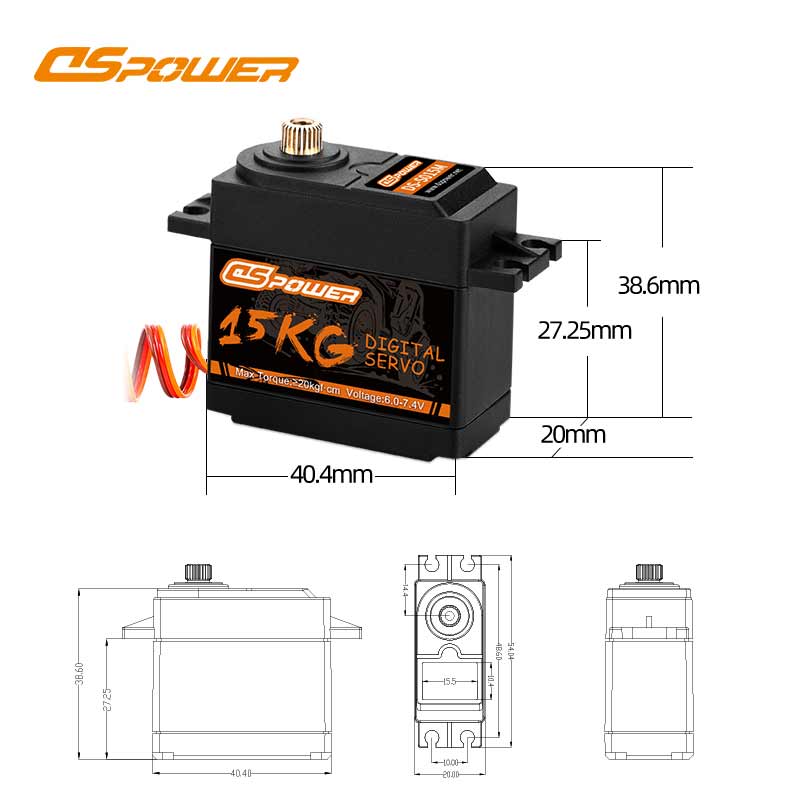

● Standard Integration and Compliance: Designed with standard servo motor dimensions, it can be seamlessly integrated into existing robots, automation equipment, and RC automotive structures, reducing development time. Compliant with international safety and environmental standards such as CE, RoHS, and FCC certification, it can directly enter the commercial, educational, and home markets.

Get a Free Sample

Technical Specs

Operating Voltage: 4.8-6V DC
Standby Current: ≤30 mA
No Load Speed: ≤0.13sec/60°
Stall Current: ≤4.8A
Stall Torque: ≥15 kgf.cm
Rotating Direction: CCW
Operating Travel Angle: 180°
Mechanical Limit Angle: Unlimited
Angle deviation: ≤1°
Weight: 62g
Motor Type：Core Motor
Communication Interface: PWM
Gear Set Material: Metal Gear
Case Material: Plastic Case
Output shaft specifications：25T

Application Scenarios

● Robot: 15kgf.cm torque provides lifting and welding power for the robot arm, metal gears can withstand frequent mechanical movements, and electronic protection can prevent damage caused by misoperation, such as exhibition hall service robots or student made robots.

● RC truck: Metal gears can resist the impact of jumping and climbing, and waterproof design can handle mud and water accumulation areas. A torque of 15KG can achieve precise and fast cornering, providing more precise control.

● STEAM Education: Electronic protection reduces maintenance costs and can automatically shut down when stalling. The standard size is compatible with LEGO and open-source hardware Arduino, making it easy to quickly build FLL and VEX competition robots and cultivate engineering thinking.

● Industrial automation conveyor and sorting system: Triple protection and sturdy design can prevent dust and moisture. High precision gears ensure precise conveyor sorting and robotic arm assembly, as well as 24-hour non-stop continuous operation without failure. The vibration resistant design prevents component damage.
Towerpro MG996R Robot servo and jx DC6015 15kg metal gear servo

FAQ

Q: Can I get a free sample?

A: YES

Q: Can I get servo with un-typical case?

A: Yes, we are professional servo manufacturer since 2005, we have exellent R&D team, we can R&D servo according to customers' requirements, give you a totally support, we has R&D and manufactured all kinds of servo for many companies so far, like as servo for RC robot, UAV drone, smart home, industrial equipment.

Q: What is your servo's rotation angle?

A: The rotation angle can be adjusted according to your requirements, but it is 180° at default, please do contact with us if you need special rotation angle.

Q: How long can I take my servo?

A: - Order less than 5000pcs, it will take 3-15 business days.
- Order more than 5000pcs, it will take 15-20 business days.
