High Quality Heat Resistant Brushless Low Body Waterproof Actuator DS-W005A Manufacturer and Supplier

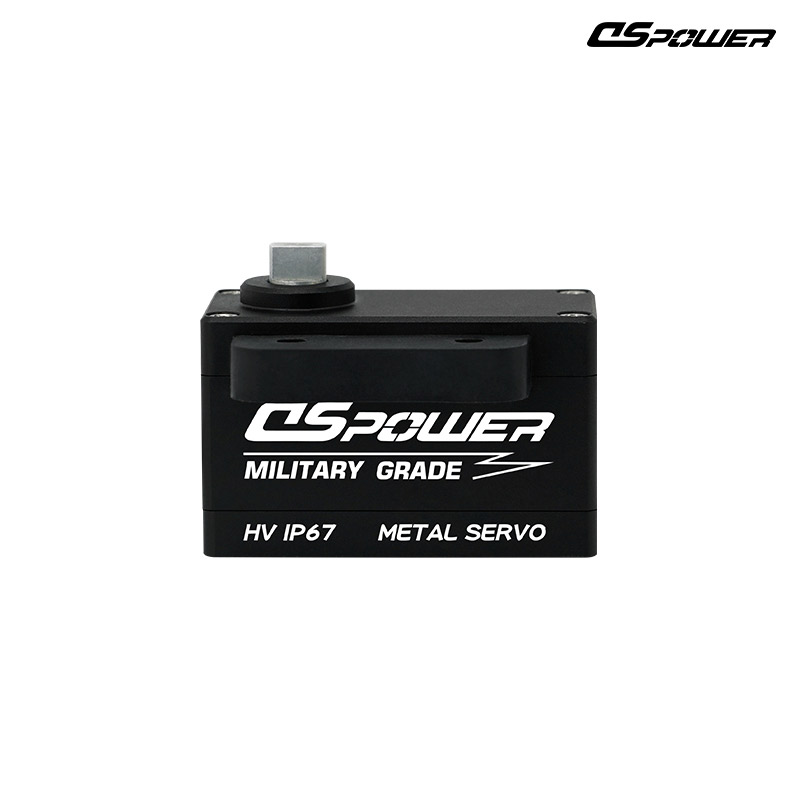

Heat Resistant Brushless Low Body Waterproof Actuator DS-W005A

DS-W005A is a cutting edge servo engineered to meet the stringent requirements of engine related components, specifically for engine throttle air doors, throttle valves, and valve opening/closing systems.

1、Servo motor casing：anodized+aluminum alloy+corrosion-resistant

2、Can withstand harsh environments ranging from 105 ℃ to -50 ℃

3、Equipped with brushless motor and magnetic encoder, longer lifespan and lower noise

4、18kgf·cm High torque+≤0.1sec/60°no-load speed+Full body waterproof

Send email to us

Product Detail

Product Tags

DS-W005A is a military grade servo motor designed to meet the strict requirements of engine related components, especially the engine throttle, throttle valve, and valve opening/closing system. It is designed to operate perfectly in environments that are resistant to high and low temperatures ranging from 105 ℃ to -50 ℃, waterproof, and electromagnetic noise, making it highly suitable for the automotive and engine industries.

Low temperature servo for Arctic vehicle applications

Key Features and Functions:

Precision actuator for automotive throttle valves

High voltage and strong torque: 12V high voltage, locked rotor torque ≥ 18kgf · cm, providing powerful power for engine components and adapting to high load conditions.

High temperature and extreme environment resistance: capable of working at 105 ℃, anodized aluminum alloy body is corrosion-resistant, and is not afraid of high and low temperature cycles from 105 ℃ to -50 ℃

Anti interference and earthquake resistance: Dual anti electromagnetic interference technology ensures signal stability, convex teeth and concave platform design enhance earthquake resistance, and resist engine vibration

Flexible installation and adaptation: concave platform+side mounting holes meet unconventional installation requirements, standard aviation plug, compatible with various connectors such as CAN bus

Application Scenarios

Engine throttle damper: precise control of intake volume, suitable for automotive, motorcycle, and agricultural machinery engines, stable operation under high temperature and vibration

Throttle valve: high-precision adjustment of intake, matching engine speed and load, dual anti-interference and high temperature resistance, optimizing combustion efficiency

Valve opening and closing: Control the timing and angle of valve opening and closing to improve valve efficiency, suitable for high-performance, turbocharged engines

FAQ

Q. Do: you test all the goods before delivery?

A: Yes, we have 100% test before delivery. If you need any assistance, please feel free to contact us.

Q: What certifications do your servo has?

A: Our servo have FCC, CE, ROHS certification.

Q. How do l know if your servo are good quality?

A: Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.

Q: For a customized servo, how long is the R&D time (Research& Development time)?

A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
