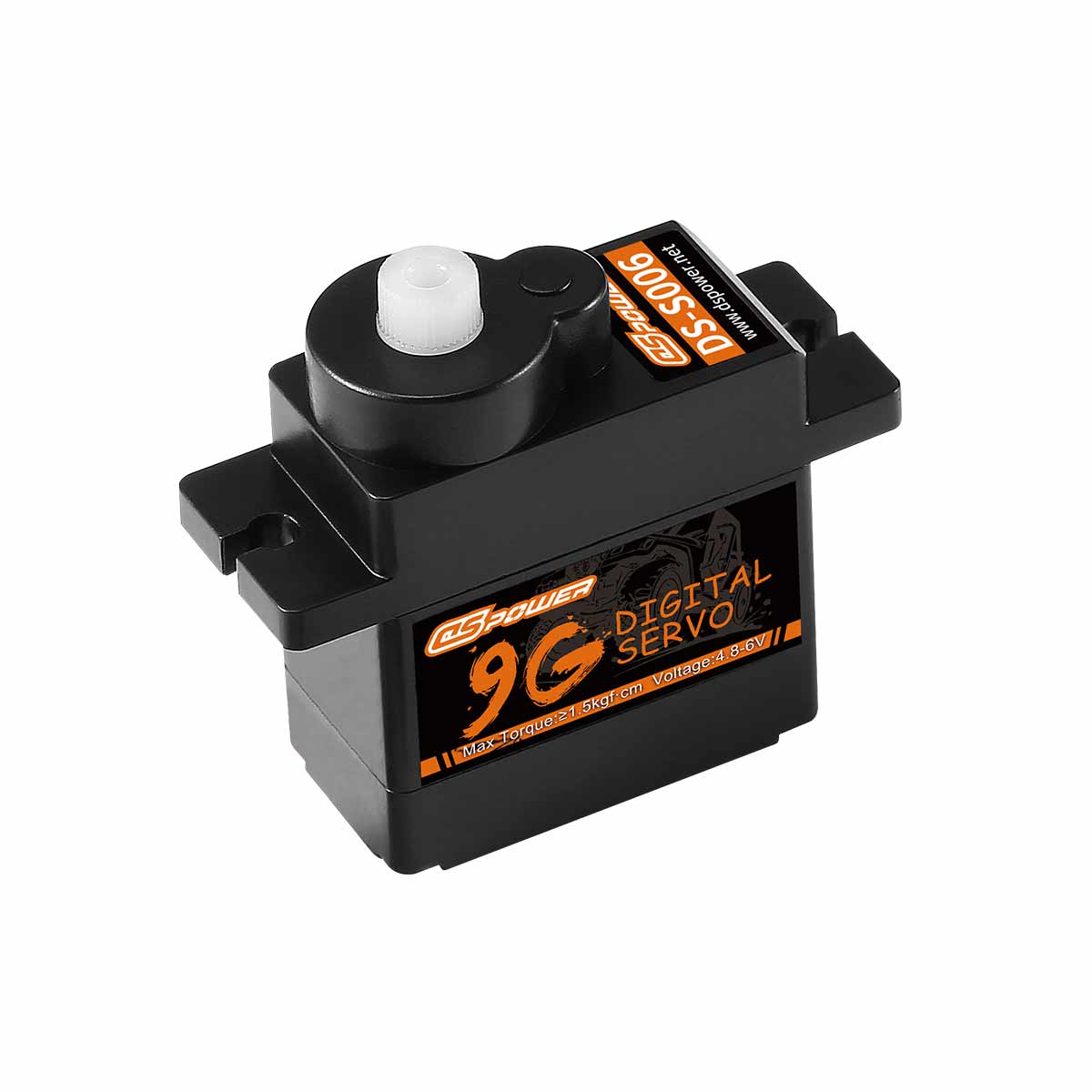

9g Plastic Gear 6V SG90 Core Motor Mini Servo Motor DS-S006
DSpower S006 is a small and affordable sg90s 9g rc servo motor commonly used in hobbyist and DIY projects, such as small robots, RC cars, and airplanes. Despite its small size and low cost, the SG90 9G Micro servo offers a respectable amount of torque, with a maximum of around 1.5kgf·cm. It also offers good precision and speed, with a rotation range of 180 degrees and a response time of approximately 0.09 sec/60°
Key Features and Functions:
● Ultra lightweight and compact design: With a weight of only 9 grams and a compact size, it greatly reduces equipment load and is easy to integrate into space and weight sensitive applications
● High precision operation of all plastic gears: Using all plastic gears ensures smooth and silent operation, effectively reduces wear, and is suitable for long-term high-frequency use scenarios.
● Long life Iron core motor: Equipped with a long life Iron core motor, efficient and durable, ensuring long-term stable operation in the field of industrial automation
● Precise angle control: With high-precision angle control capability, it meets the strict requirements for precision in robot joint movements, model drone attitude adjustment, and other aspects.
Operating Voltage: 4.8-6V DC
Standby Current: ≤20 mA
No Load Speed: ≤0.12sec/60°
Stall Current: ≤1.5A
Stall Torque: ≥1.1 kgf.cm
Rotating Direction: CCW
Operating Travel Angle: 180°
Mechanical Limit Angle: Unlimited
Angle deviation: ≤1°
Weight: 10g
Motor Type：Core Motor
Communication Interface: PWM
Gear Set Material: Plastic Gear
Case Material: Plastic Case
Application Scenarios
● Robots: The joints of educational robots and service robots enable flexible and precise motion demonstrations and task execution, such as robot arm grasping and walking posture adjustment.
● STEAM Education: As a driving component of the teaching model, it helps students understand the principles of mechanical transmission and programming control, and cultivates innovative thinking and hands-on abilities
● Industrial automation: Performing precise angle control in small automation equipment, such as fine tuning assembly line components, to improve the accuracy and efficiency of industrial production.
● Smart Home: Drive the angle adjustment of smart curtains and small smart appliances, achieve intelligent control, and enhance the convenience and comfort of home life.
● RC car model toy: Controls the wheel steering system, adapts to complex maneuvers such as sharp turns, all plastic gear design resists wear and extends the service life of the car model
FAQ
A: Yes, we have 100% test before delivery. If you need any assistance, please feel free to contact us.
A: Our servo have FCC, CE, ROHS certification.
A: Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.
A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
-
