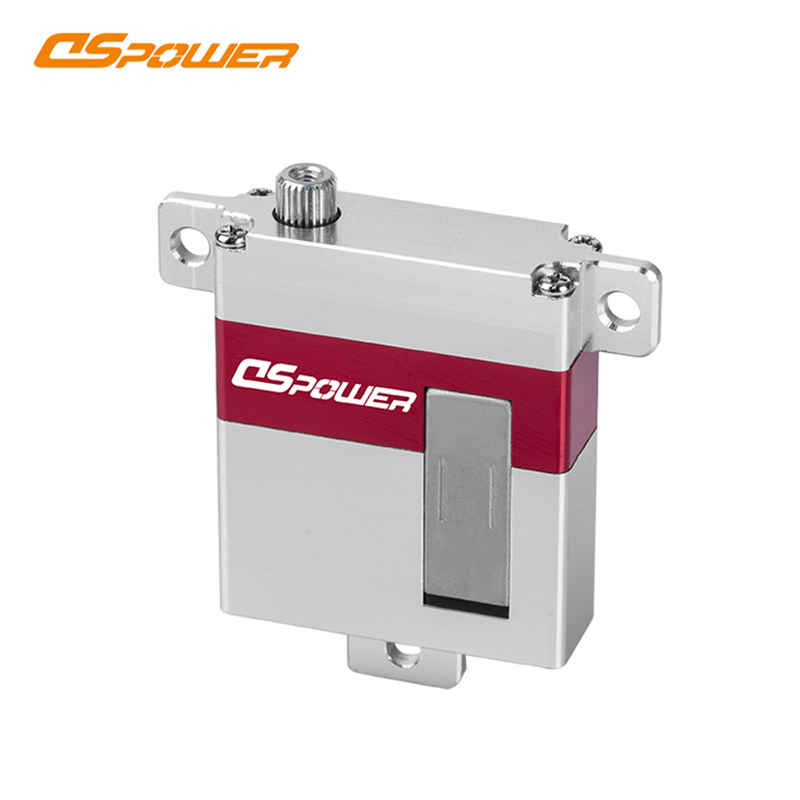

DS-F002 8kg Slim Wing High voltage servo

Operating Voltage: 6.0~8.4V
Standby Current: ≤40mA at7.4V
No Load Current: ≤100mA at7.4V
No Load Speed: ≤0.14sec./60° at7.4V
Rated Torque: 1.2kgf.cm at7.4V
Stall Current: ≤3.2A at7.4V
Stall Torque: ≥8kgf.cm
Rotating Direction: CCW(1000→2000μs)
Pulse Width Range: 500~2500μs
Neutral Position: 1500μs
Operating Travel Angle: 180±10°
Mechanical Limit Angle: 360°
Back Lash: ≤1.5
Dead Band Width: 10μs
Operating Temperature Range: -10℃~+50℃; ≤90%RH
Storage Temperature Range: -20℃~+60℃; ≤90%RH
Weight: 29.1±0.5g
Case Material: Aluminium alloy
Gear Set Material: Metal
Motor Type: Core motor




Product Detail

Product Tags

incon

Application

DSpower DS-F002 Slim Wing Servo is an innovative servo motor designed specifically for applications where space-saving and aerodynamic considerations are critical. With its slender profile and efficient performance, this servo is tailored to fit seamlessly into slim or aerodynamic designs while delivering reliable and precise motion control.
Key Features and Functions:
1.Sleek and Compact Design: The Slim Wing Servo stands out for its slim form factor, making it well-suited for installations with limited space, such as within thin wings or streamlined surfaces.
2.Lightweight Construction: Its lightweight design complements its slim profile, ensuring minimal impact on weight-sensitive applications like aerial vehicles.
3.Precision Motion Control: Despite its slender build, the servo is engineered to deliver accurate and precise motion control, enabling optimal control over flight surfaces or other mechanisms.
4.Low Aerodynamic Profile: The servo's design takes into account aerodynamic considerations, minimizing air resistance and drag, which is particularly crucial for aviation applications.
5.Digital Control Technology: Incorporating digital control technology, the servo offers enhanced accuracy and responsiveness compared to traditional analog servos.
6.High Torque Output: The Slim Wing Servo is designed to generate a considerable amount of torque relative to its size, making it suitable for a range of control functions.
7.Plug-and-Play Integration: Many Slim Wing Servos are designed for easy integration into various control systems, offering plug-and-play compatibility for swift installation.

incon

Features

FEATURE:

High performance, standard,High voltage servo

High-precision Metal Gear

CNC aluminiummiddle shell

Coreless Motor

Waterproof

Programmable Functions

End Point Adjustments

Direction

Fail Safe

Dead Band

Speed (Slower)

Data Save / Load

Program Reset

incon

Application Scenarios

DS-F002 Applications:

1. Aerial Vehicles: The Slim Wing Servo is a popular choice for aviation applications, including UAVs, drones, RC airplanes, and gliders. Its slim design reduces air resistance and allows for streamlined installations on wings and control surfaces.

2. Glider and Sailplane Control: In gliders and sailplanes, where weight and aerodynamics are critical, the Slim Wing Servo helps achieve precise control over ailerons, flaps, rudders, and elevators.

3. Small UAVs and Drones: For compact UAVs and drones, the servo's slim build ensures efficient integration, contributing to improved flight performance and agility.

4. Aerospace Prototyping: Engineers and researchers use the Slim Wing Servo for aerospace prototyping and experimental aircraft to evaluate control mechanisms and flight dynamics.

5. Aviation Model Kits: It's an excellent choice for enthusiasts building scale model aircraft kits, where maintaining accurate proportions and aerodynamic profiles is essential.

6. Aerodynamic Designs: Beyond aviation, the servo is valuable in any application requiring precise control in slim or streamlined designs, such as streamlined vehicles, aquatic robots, or even kinetic sculptures. The Slim Wing Servo's unique combination of slimness, precision, and aerodynamic considerations makes it a favored choice for applications demanding space-efficient, lightweight, and high-performance motion control solutions.

product_3
incon

FAQ

Q. Can i ODM/ OEM and print my own logo on the products?

A: Yes, Through 10years research and development of servo, De Sheng technical team is professional and experienced to offer customized solution for OEM,ODM customer, which is one of our most competitive advantage.
If above online servos does not match your requirements, please do not hesitate to send message to us, we have hundreds of servos for optional, or customizing servos based on demands, it is our advantage!

Q. Servo Application?

A: DS-Power servo have wide application, Here are some of applications of our servos: RC model, education robot, desktop robot and service robot; Logistics system: shuttle car, sorting line, smart warehouse; Smart home: smart lock, switch controller; Safe-guard system: CCTV. Also agriculture, health care industry, military.

Q: For a customized servo, how long is the R&D time (Research& Development time)?

A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
