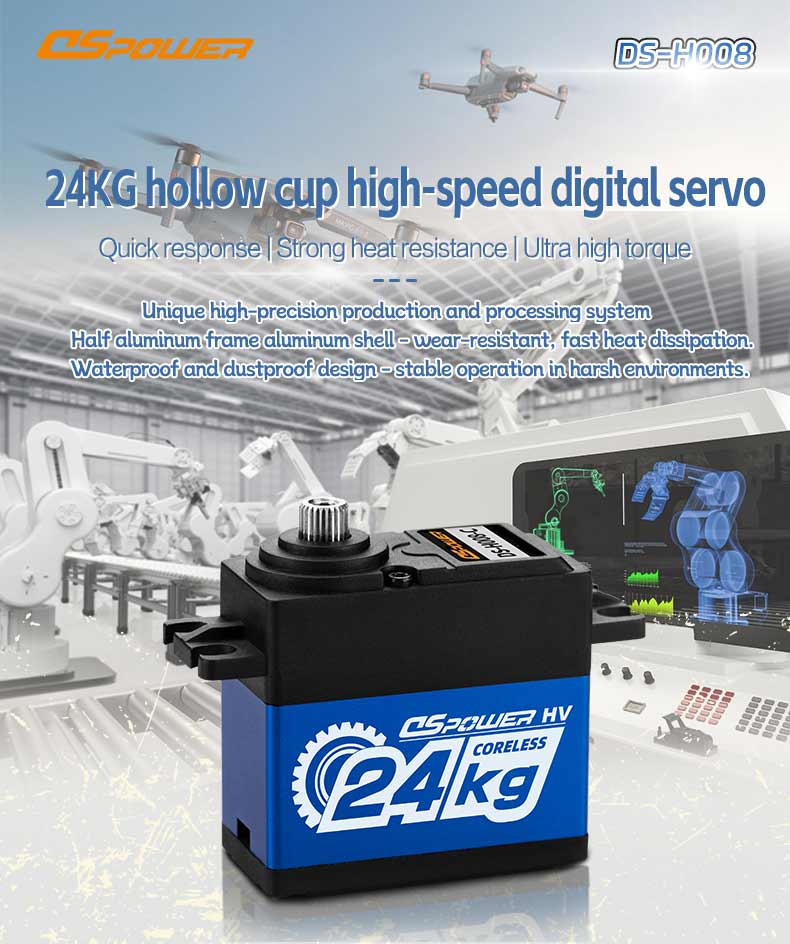

24kg Steel Gear High Torque 25T Digital Coreless Servo DS-H008-C

DSpower H008-C is composed of a aluminum middle case and steel gears,Having standard dimensions, but with very large servos. HS-7955TG 24kg digital servo

●  Aluminum middle case+Steel Gear+25T Servo Horn

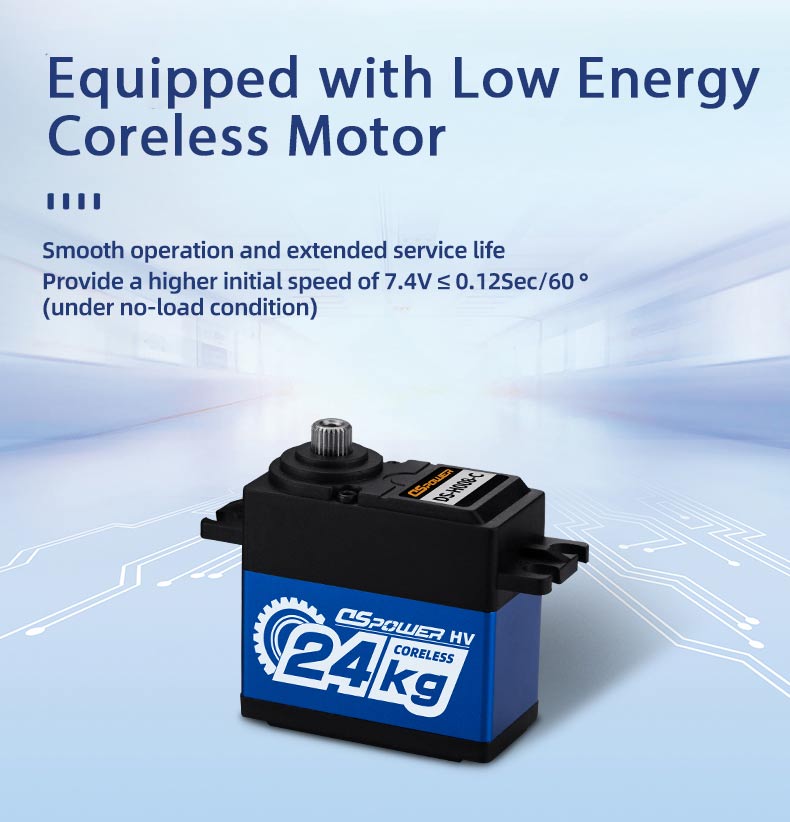

●  Equipped with a Coreless Motor, it provides lower energy consumption and smoother operation

●  24 kgf.cm Stall Torque+6-8.4V Operating Voltage+Operable Angle 300°

●  Ideal Applications:Throttle Valve,Smart Robot,Desktop Robotic Arm,1/8 RC car


Product Detail

Standard Digital Servo Steering Gear

Model:DS-H008-C

Standard in size / Double Ball Bearing / Ultra high precision

Basic Info:Weight: 64.0g; Aluminum Middle Case; Steel Gear; Coreless Motor.

Application Tips: Pan-tilt steering control, Throttle Valve,Smart Robot,Desktop Robotic Arm,1/8 RC car

Product Info

Brands DSpower
Product Model DS-H008-C
Weight 64.0g

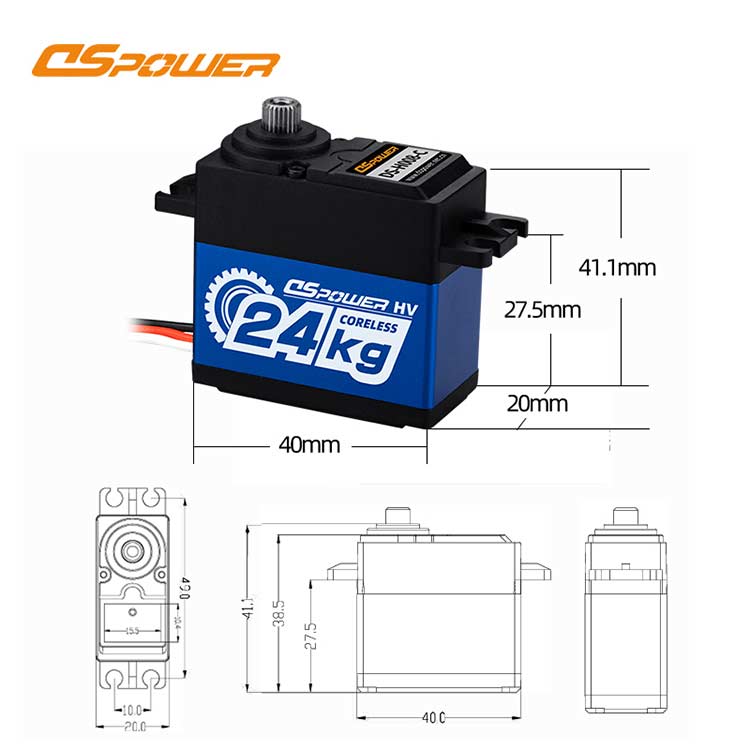

Size 40*20*41.1mm
Interface Digital servo;PWM
Case Material Aluminum middle
Gear Type Steel Gear
Motor Type Coreless Motor
Rated Voltage 6-7.4V
Standby Current ≤10 mA
No Load Current ≦160mA
No Load Speed ≦0.12sec/60°
Stall Current ≦4.1A
Stall Torque(static) ≥24kgf·cm
Pulse Width Range 500-2500us
Operating Angle 180° (500~2500 μs)
Mechanical Limit Angle 210°
Return Angle Deviation ≤1°
Output Shaft Type 25T
Servic Support OEM/ODM
24kg Standard digital servo

Product Profile

Product Overview

DSpower H008-C is equipped with a coreless motor and a 25T servo rocker arm. This combination not only provides lower energy consumption but also makes it compatible with most products. Its size is exactly the same as the market-leading products, and its performance and manufacturing quality reach 95% of the market-leading products, but its price is less than half of them.



Application Scenarios

●  1/8 RC model car: 0.15 sec/60 ° response speed can achieve sharp turns, 24 kgf.cm torque can achieve 45 ° climbing, IP67 protection level, can resist soil and water accumulation areas, and metal gear design can survive collisions.

●  Electronic throttle body: High precision gear control ensures smooth throttle response, semi aluminum frame accelerates body heat dissipation, coreless motor matches transient power demand

●  Electric valve: 24kgf.cm torque and metal gear, achieving precise control of opening and closing high pressure valves, IP67 protection level, providing rain and rust protection for outdoor electric valve stations, metal gear+long-life hollow cup motor, shortening downtime

●  Industrial automation equipment: Anti burn technology supports uninterrupted production throughout the day, and semi aluminum+metal gears can withstand vibration and debris; High precision metal gear control ensures flawless assembly and sorting.
hitec HS-7955TG Digital Coreless Servo and AGFRC B53DHS 24KG servo



Product Features

●  High torque and precision: 24kgf.cm continuous torque output, completing difficult tasks through high torque output, climbing from RC truck slopes to high speed drive of heavy duty valves. High precision gear control ensures precise positioning of robotic arms, electronic throttle valves, and flow control valves.

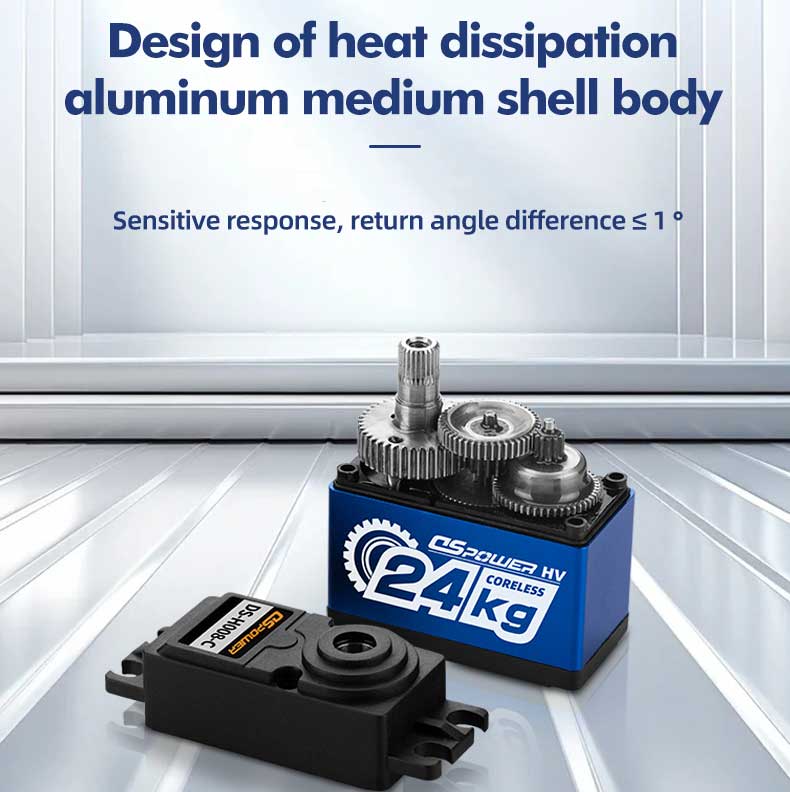

●  Thermal and structural efficiency: The semi aluminum frame body design accelerates heat dissipation and is suitable for all weather industrial equipment use and marathon RC truck races, preventing overheating. Steel metal gears, wear-resistant, corrosion-resistant, and impact resistant, have survived RC collisions, electric valve debris, and factory dust.

●  All day durabilityIP67 waterproof and dustproof body, playing an indelible role in damp RC tracks, car engine compartments, and outdoor industrial valve stations.

●  Intelligent protection and quiet operation: Anti burning and anti shaking technology can automatically reduce current and avoid shutdown when encountering conveyor blockage or valve jamming, with low noise performance, suitable for quiet environments such as car driver's cab and industrial control room.

Highlights of Our Servos

Self-developed protection system of mechanical transmission and electric drive to utilize the best function of the servo.

Integrated and Miniaturized

Integration of control and drive, characterized by small size and high torque.

Precise Angle, Multi-position Control

The industry's first angle auto-calibration and self-calibration detection system ensures that the servo quickly recovers its factory settings.

Mature Industry Chain, High Cost Performance

Adopting the industry's advanced MIM processing technology, to achieve the ultimate cost-effective under the guarantee of high strength and longevity.

Servo with Self-protection System

With blocking protection, voltage protection, temperature protection, etc. can effectively cope with a variety of complex working conditions, reducing the risk of servo failure.

Product Certification

Passed  CE,FCC, ROHS, REACH, EMC product certification and more than 100+ patents.

DSPower CE certification
DSPower FCC certification
DSPower EMC certification certificate
DSPower RoHS certification
DSPower Reach Certification

Our Service Process

Custom Product Process
01 Product Requirements
02 Parameter Negotiation
03 Development Agreement
04 Product Design
05 Sample Production
06 Sample Verification/Feedback
07 Mold Making
08 Sample Production
09 Sample Verification
10 Program Confirmation
11 Specification
12 Sample Sealing
13 Mass Production
Standard Product Process
01 Product Requirements
02 Product Selection
03 Parameter Negotiation
04 Specification
05 Sample Production
06 Sample Verification/Feedback
07 Purchase Agreement
08 Mass Production

FAQs

Can I ODM / OEM and Print My Own Logo on The Products?

A: Yes, Through 10+years research and development of servo, De Sheng technical team is professional and experienced to offer customized solution for OEM,ODM customer, which is one of our most competitive advantage.
If above online servos does not match your requirements, please do not hesitate to send message to us, we have hundreds of servos for optional, or customizing servos based on demands, it is our advantage!

How do I Know if Your Servo are Good Quality?

Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.

For a Customized Servo, How Long is The R&D Time (Research& Development time)?

Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.

How Long Can I Take My Servo?

Order less than 5000pcs, it will take 3-15 business days.
