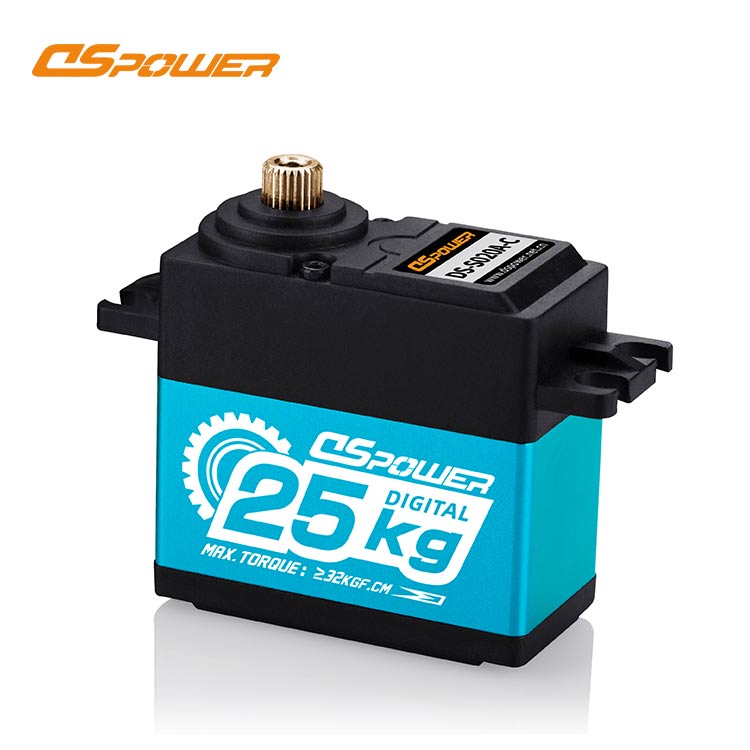

DS-S020A-C 25KG Metal Gear High Torque Waterproof Digital Servo

Stall Torque ≥25.0kgf.cm at 6.0V
≥32.kgf.cm at 7.4V
No Load Speed ≤0.20sec./60°at 6.0V
≤0.17sec./60°at 7.4V
Operating Travel Angle   180°±10°(500~2500μs)
Mechanical Limit Angle 360°
Weight 70±1 g

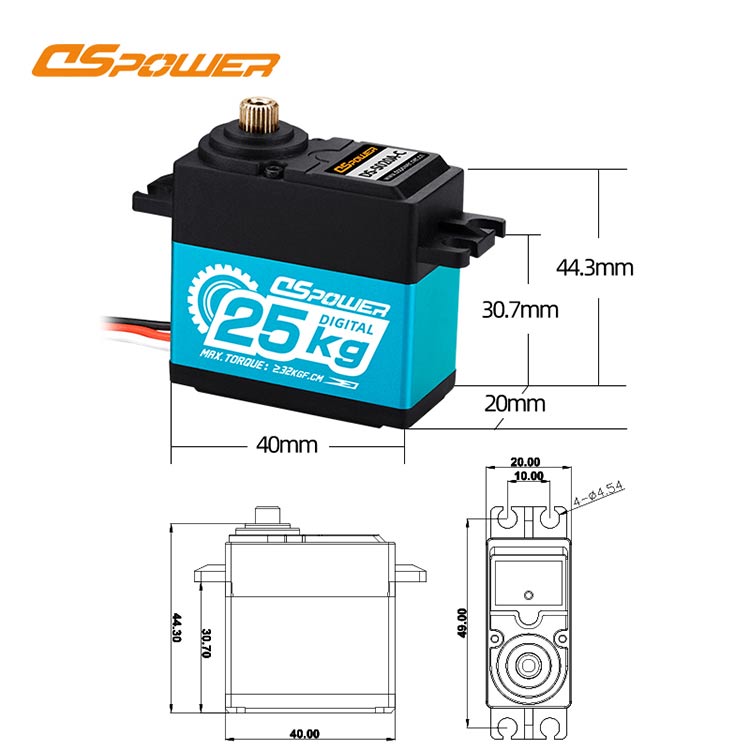

Size 40 ×20 ×41.1mm
Case material CNC aluminiummiddle shell
Gear Set Material Metal gear
Motor Type DC Motor

Product Detail

Product Tags

DS-S020A-C 25KG Metal Gear High Torque Waterproof Digital Servo (2)
DS-S020A-C 25KG Metal Gear High Torque Waterproof Digital Servo (3)
DS-S020A-C 25KG Metal Gear High Torque Waterproof Digital Servo (4)
incon

Application

This 25KG digital servo features HV high torque, metal gear, fast heat dissipation, sensitivity and responsiveness. With high quality and performance, it is tailored for RC hobbyist to provide different experience and delight.
Good performance digital standard servo, which can be a common use for robots, mechanical arms, climbing cars and remote control toys.

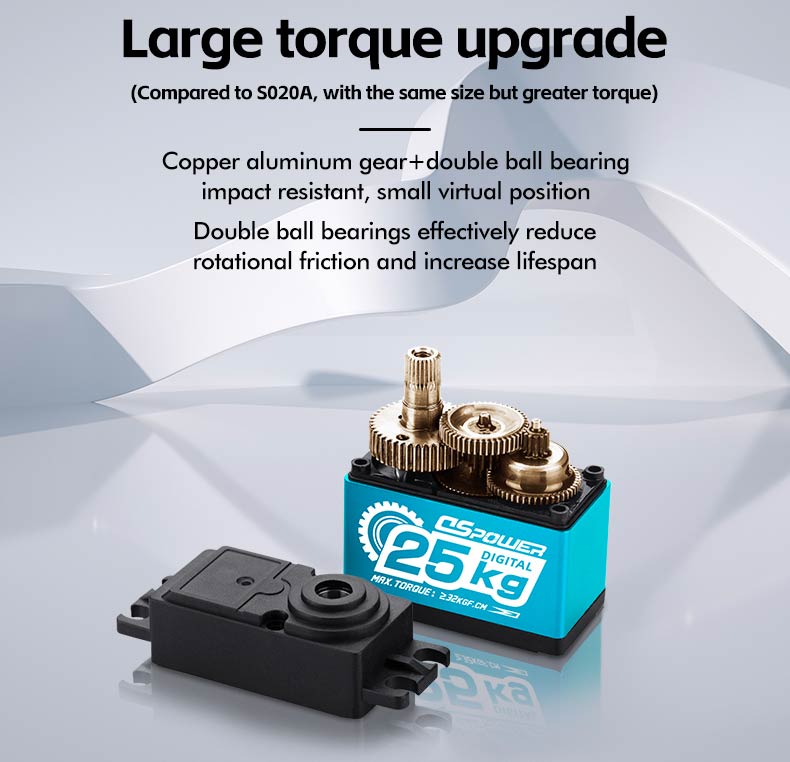

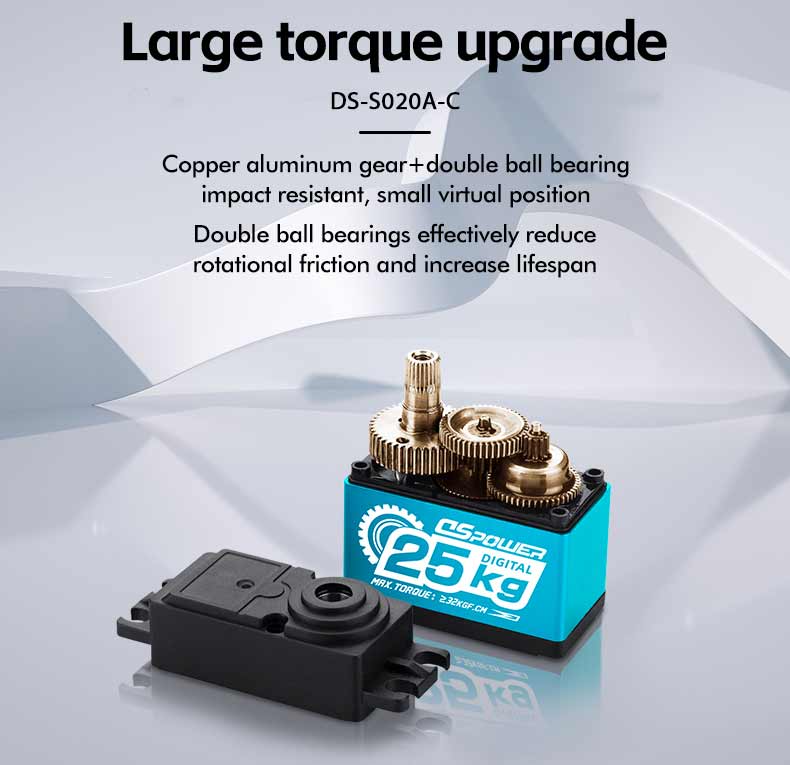

High-precision metal gear with hard anodizing for better accuracy and longer service life.

incon

Features

FEATURE:

High performance, standard,Multivoltage digital servo.

High-precision Metal Gear.

Long-life potentiometer.

CNC aluminiummiddle shell.

High quality DC Motor.

Dual ball bearing.

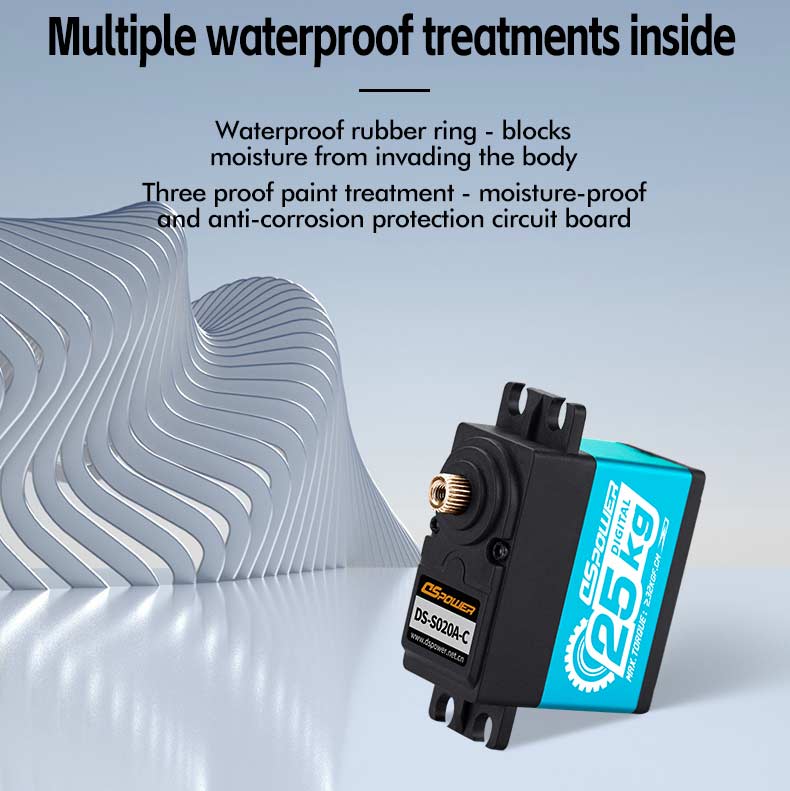

Waterproof.

Programmable Functions

End Point Adjustments

Direction

Fail Safe

Dead Band

Speed (Slower)

Data Save / Load

Program Reset

incon

Application Scenarios

For with Remote Control Helicopters,Airplane, Robot, Boats,Robot Arm and Smart home. Support All Kind of R/C Toys and Arduino Experiments.

product_3
incon

FAQ

Q. How do l know if your servo are good quality?

A: Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.

Q: Can I get servo with un-typical case?

A: Yes, we are professional servo manufacturer since 2005, we have exellent R&D team, we can R&D  servo according to customers' requirements, give you a totally support, we has R&D and manufactured all kinds of servo for many companies so far, like as servo for RC robot, UAV drone, smart home, industrial equipment.

Q. Servo Application?

A: DS-Power servo have wide application, Here are some of applications of our servos: RC model, education robot, desktop robot and service robot; Logistics system: shuttle car, sorting line, smart warehouse; Smart home: smart lock, switch controller; Safe-guard system: CCTV. Also agriculture, health care industry, military.

Q: What is your servo's rotation angle?

A: The rotation angle can be adjusted according to  your  requirements, but it is 180° at default, please do contact with us if you need special rotation angle.
