18kg Steel Gear 25T High Speed Low Profile Digital Servo DS-H015
Product Info
| Brands | DSpower |
| Product Model | DS-H015 |
| Weight | 42.5g |

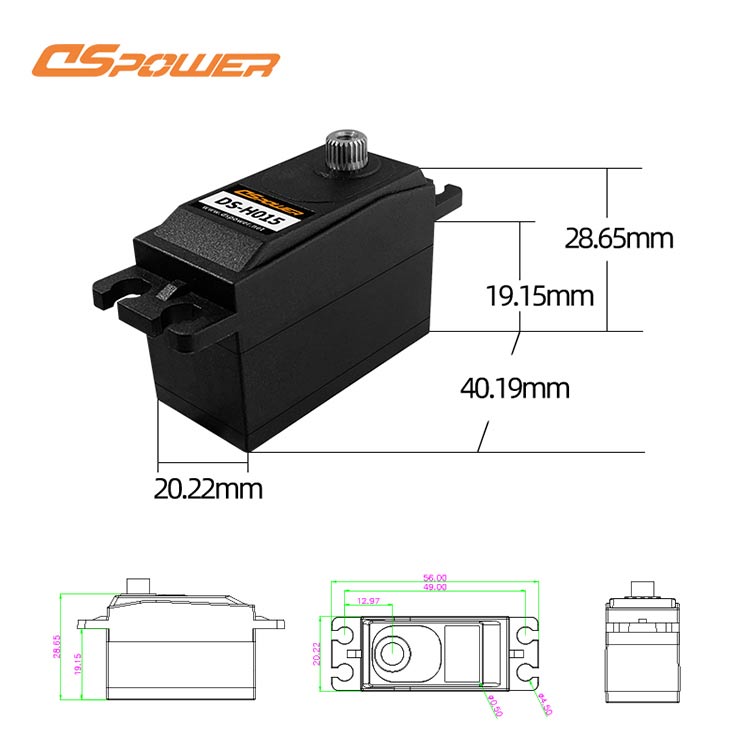

| Size | 40.19*20.22*28.65mm |
| Interface | Digital servo;PWM |
| Case Material | PA+GF Plastic |
| Gear Type | Full Steel Gear |
| Motor Type | Cored Motor |
| Rated Voltage | 6-8.4V |
| Standby Current | ≤20 mA |
| No Load Current | ≦110mA |
| No Load Speed | ≦0.15sec/60° |
| Rated Torque | ≥4.5kgf·cm |
| Rated Current | ≦1.4A |
| Stall Current | ≦5.2A |
| Stall Torque(static) | ≥18kgf·cm |
| Weighting Torque(dynamic) | ≥11kgf·cm |
| Pulse Width Range | 500-2500us |
| Operating Angle | 180° (500~2500 μs) |
| Mechanical Limit Angle | Unlimited |
| Return Angle Deviation | ≤1° |
| Output Shaft Type | 25T |
| Servic Support | OEM/ODM |
Product Profile
Whether you’re navigating an RC car through rugged terrain, controlling a gas valve with precision, or powering industrial machinery, DS-H015 delivers the strength and speed required for operation.DS-H015 adopts steel gears, which ensures ultra high gear accuracy, minimizes backlash, and prevents gear detachment, which is crucial for long-term reliability under heavy loads.
● 1/10 RC off Road Vehicle: 18kgf.cm high torque, able to easily handle climbing and rocky areas; The splash proof shell can be used in humid conditions, and the steel gears can withstand hard landings, making it very suitable for trucks and quadricycles with 1/10 and 1/8 ratios
● Valve Switch drive: Precise torque control for leak free operation, stall protection to prevent debris from damaging the valve, splash proof housing design to easily overcome harsh environments; High torque overcomes high-pressure resistance, ensuring reliable and safe flow control.
● Industrial automation equipment: Low profile design integrated into narrow space systems, such as robotic arms and sorting mechanisms; Low noise design is suitable for factory automation equipment to avoid disturbing the public; Anti burn technology ensures the reliability of continuous operation without electricity.
kst X20-1806 Low profile Servo and hitec DB778WP Low profile Servo
● High torque and high speed: With a peak torque of 18kgf.cm and a response time of 0.15s/60 °, it provides powerful force for RC tracks, making it easy to conquer steep slopes and provide precise driving for industrial valves and automation systems.

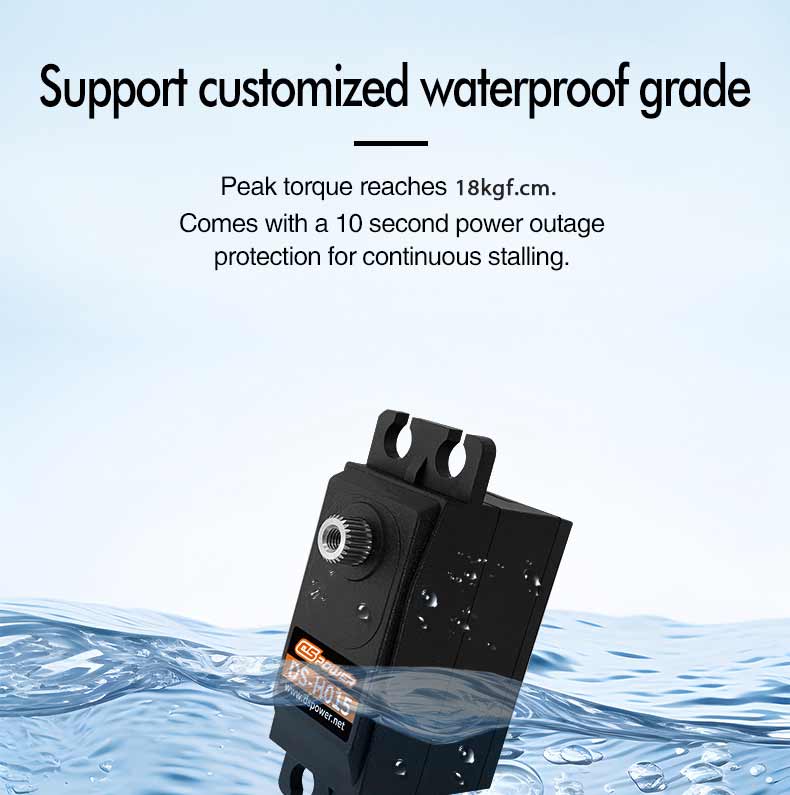

● Durable protection in harsh environments: Equipped with a splash proof casing, it is an ideal choice for RC off road, outdoor valve stations, and humid industrial environments. Equipped with a 10 second stall protection, it automatically shuts off to prevent burning out in case of blockage, which is crucial for preventing valve failure or industrial shutdown
● Compact and Cost Effective Design：Low profile plastic Case，28.65mm height，saves space in RC chassis and industrial machinery, while reducing weight and cost compared to full metal servos.
Highlights of Our Servos
Self-developed protection system of mechanical transmission and electric drive to utilize the best function of the servo.
Product Certification
Passed CE,FCC, ROHS, REACH, EMC product certification and more than 100+ patents.
Our Service Process
FAQs
A: Yes, Through 10+years research and development of servo, De Sheng technical team is professional and experienced to offer customized solution for OEM,ODM customer, which is one of our most competitive advantage.
If above online servos does not match your requirements, please do not hesitate to send message to us, we have hundreds of servos for optional, or customizing servos based on demands, it is our advantage!
Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.
Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
Order less than 5000pcs, it will take 3-15 business days.
About DSpower
DSpower was founded in May, 2013. The main R & D production and sales of Intelligent Robot servos, Drone/UAV servos, STEM Building Block servo etc. We have more than 500+ employees, including more than 50+ R&D personnel, more than 50 quality inspection personnel, with more than 100+ patents; IS0:9001 and IS0:14001 certified enterprises. The maximum daily production capacity is more than 50,000 pieces.
What Sets Our Factory Unique?
12+ years experience, self-developed protection system, automated production, professional customized support
Unique Quality Inspection Equipment.
We have advanced CMM testing equipments, exclusive developed clutch structure testing equipments, spectral analyzing instruments and other routine testing equipments to ensure that the quality of our products meets high quality standards.
More Than 50+ R&D Team Support Customization
We have an experienced R&D team of more than 50 members to provide full technical support from prototype customization to mass production of micro servos for our customers worldwide. After more than 12 years of development, our team has been awarded more than 100+ patents.
Automated Production
Our factory has more than 30 production lines, with many intelligent equipments such as Japan HAMAI CNC type automatic hobbing machine, Japan Brother SPEEDIO high-speed drilling and tapping CNC machining center, Japan imported NISSEI PN40, NEX50 and other high-precision injection molding machines, automatic shaft pressing machine, and center shaft into the shell machine. The daily output is up to 50,000 pieces and the shipment is stable.
International Certification & High Quality
Passed FCC, CE, ROHS, REACH, EMC product certification and more than 100+ patents.
-
