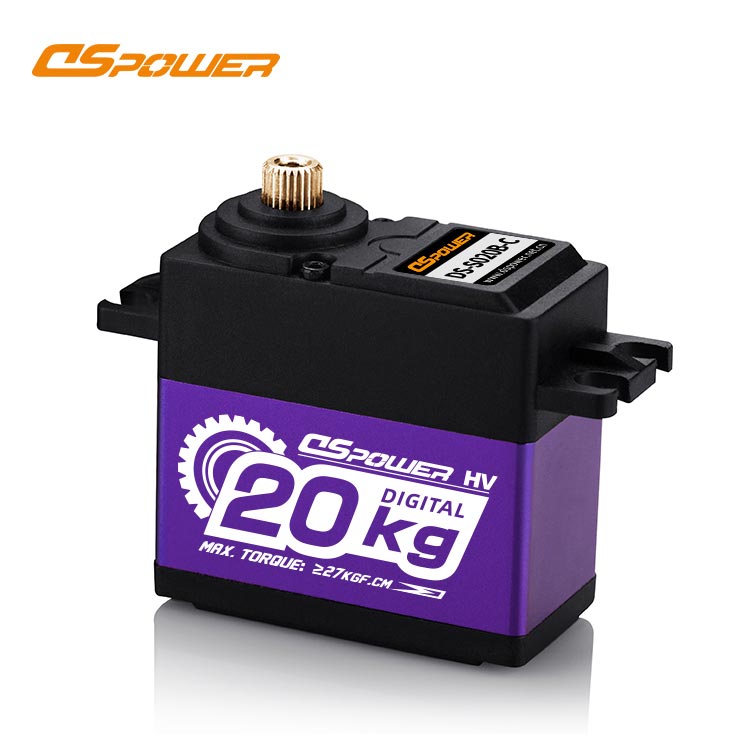

20kg Metal Gear 7.4V Waterproof Standard Digital Servo DS-S020B-C
Product Info
| Brands | DSpower |
| Product Model | DS-S020B-C |
| Weight | 69.0g |

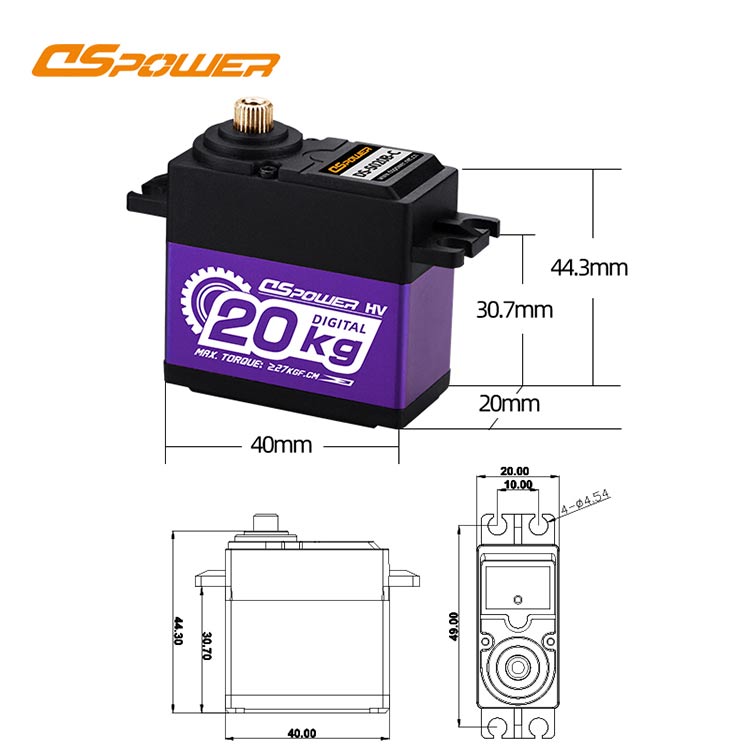

| Size | 40*20*41.1mm |
| Interface | Digital servo;PWM |
| Case Material | Aluminum Middle Case |
| Gear Type | Full Metal Gear |
| Motor Type | Cored Motor |
| Rated Voltage | 6.0-7.4V |
| Standby Current | ≤12 mA |
| No Load Current | ≦150mA |
| No Load Speed | ≦0.22sec/60° |
| Rated Torque | ≥7.5kgf·cm |
| Rated Current | ≦1.1A |
| Stall Current | ≦3.6A |
| Stall Torque(static) | ≥20kgf.cm |
| Weighting Torque(dynamic) | ≥15kgf·cm |
| Pulse Width Range | 500-2500us |
| Operating Angle | 180° (500~2500 μs) |
| Mechanical Limit Angle | Unlimited |
| Return Angle Deviation | ≤1° |
| Output Shaft Type | 25T |
| Servic Support | OEM/ODM |
Product Profile
DSpower S020B-C 20kg digital servo features HV high torque, metal gear, fast heat dissipation, sensitivity and responsiveness. With high quality and performance, it is tailored for RC hobbyist to provide different experience and delight.
● Industrial Automation Equipment: Used for material handling, mechanical transmission, and precise positioning on production lines. The 20kgf.cm high torque and semi aluminum frame heat dissipation design ensure continuous and efficient operation of the equipment, improving production efficiency.
● Robots: Suitable for industrial robots, hospital service robots, with high torque and anti bounce characteristics to ensure flexible joint driving and long term durability, waterproof design to expand the robot's usage environment.
● Medical Robotic Arm: Meets the demand for high precision and stability in the medical field, with all metal gear sets ensuring reliable operation, waterproof and moisture-proof for easy cleaning and disinfection, and meets the requirements of the medical environment.
● RC Car: Providing strong power with high torque to cope with intense handling such as high speed and jumping; Anti bouncing teeth and waterproof design enhance durability, adapt to working in harsh outdoor weather conditions, and improve the handling experience.
DS3218MG 20kg digital servo
● High Torque Output: With a high torque of 28kgf .cm, it provides sufficient power for industrial automation equipment and industrial robots, ensuring efficient operation and meeting heavy load requirements.

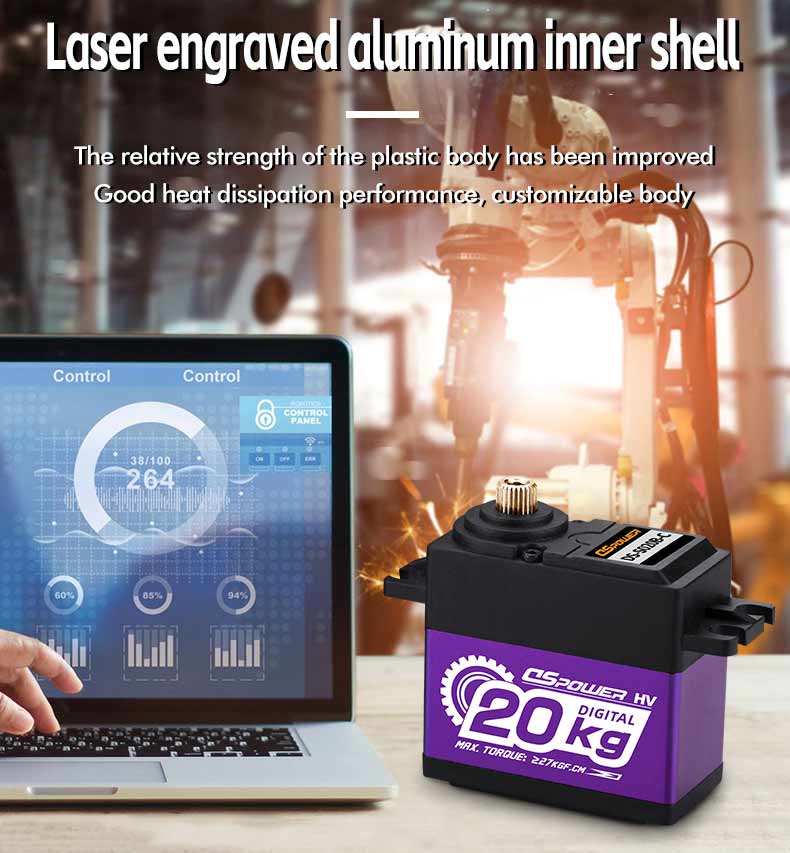

● Efficient Heat Dissipation: The semi aluminum frame design provides fast heat dissipation, ensuring stable performance of the equipment during long term continuous operation. It is suitable for high load scenarios such as industrial automation production lines.

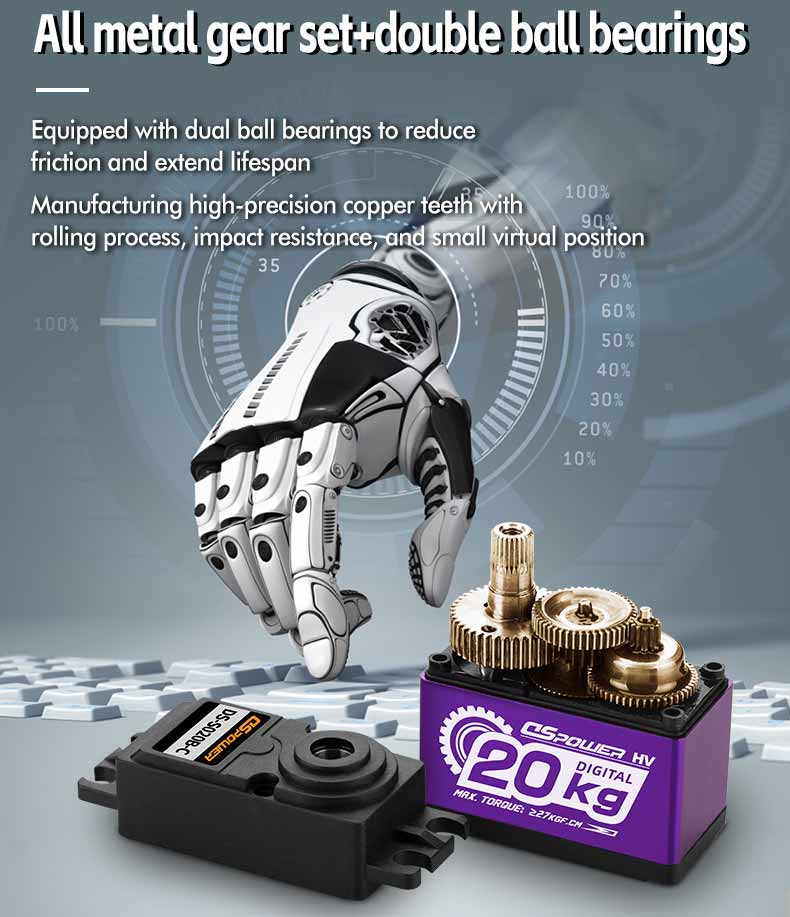

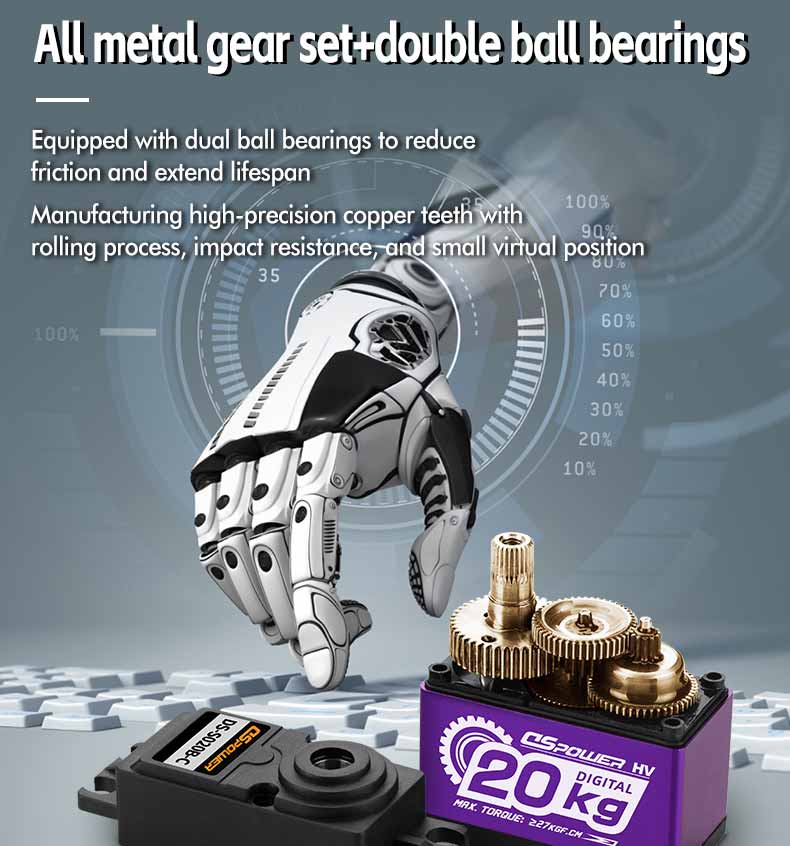

● Anti Bounce Tooth Design: The all metal gear set is durable and effective in resisting impact, reducing wear and maintenance frequency, ensuring high precision operation of medical robotic arms and reliability under intense control of RC car models.
● Waterproof and Moisture Proof: equipped with waterproof rubber rings and three proof paint to prevent moisture invasion and adapt to complex environments, such as outdoor use of RC car models, cleaning and disinfection of medical robotic arms, and industrial humid scenes.
Highlights of Our Servos
Self-developed protection system of mechanical transmission and electric drive to utilize the best function of the servo.
Product Certification
Passed CE,FCC, ROHS, REACH, EMC product certification and more than 100+ patents.
Our Service Process
FAQs
A: Yes, Through 10+years research and development of servo, De Sheng technical team is professional and experienced to offer customized solution for OEM,ODM customer, which is one of our most competitive advantage.
If above online servos does not match your requirements, please do not hesitate to send message to us, we have hundreds of servos for optional, or customizing servos based on demands, it is our advantage!
Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.
Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
Order less than 5000pcs, it will take 3-15 business days.
