Product

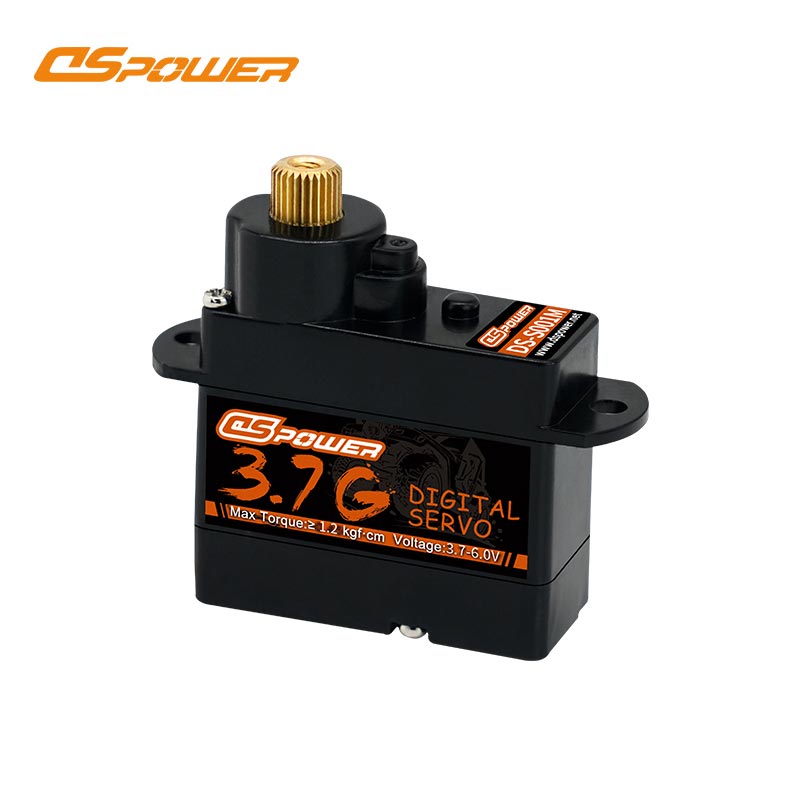

3.7g Coreless Motor Metal Gear Glider Wing Mini Servo DS-S001M
DS-S001M is a lightweight, high performance, and highly reliable miniature digital servo. FCC/CE/RoHS certified, this micro servo offers an unmatched power to weight ratio for precise control of fixed wing aircraft, smart home automation, and STEM robotics kits.
Key Features and Functions:
● Compact Power & Precision：Compared to common micro servos on the market, the DS-S001M has a significant weight advantage. For example, the HS-55 weighs 8 grams and has a torque of 1.1-1.3 kgf·cm. Although the HS-55 has slightly higher torque, the DS-S001M provides similar performance at a lighter weight, which is crucial in model aircraft and light UAV applications.
● Durability Engineered for Longevity：DS-S001M is equipped with Metal Gears and a Coreless Motor, which not only effectively prevents tooth breakage caused by impact or high loads but also significantly extends its service life. This is a crucial selling point for educational robots that require repeated operation or for aircraft models prone to accidents.
● Smart Protection & Compliance：DS-S001M has internal anti-burn and anti shake functions, which can effectively prevent damage to the servo due to stalling, overvoltage or overload. This is very useful for novice users or in teaching scenarios. It also complies with CE/FCC and ROHS certifications, suitable for commercial and educational use.
Application Scenarios
● Model airplane and fixed wing drones：
The weight of 3.7 grams makes it an ideal choice for ultra light model aircraft ailerons, elevators and rudders, effectively reducing the overall load, improving flight efficiency and maneuverability, and equipped with metal gears, it can withstand collisions or high wind resistance loads that may be encountered during flight.
● STEM education and Robot：
DS-S001M features built in metal gears and multiple protections, effectively minimizing damage from improper operation by students and reducing maintenance and replacement costs. Its standard PWM control signal allows for seamless compatibility with mainstream microcontrollers and development platforms, including Arduino.
● Smart Home：
3.7g small size design, very suitable for smart curtains and smart locks, while low noise and anti burn protection, very suitable for home environment
FAQ
A: Yes, we have 100% test before delivery. If you need any assistance, please feel free to contact us.
A: Our servo have FCC, CE, ROHS certification.
A: Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.
A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
-
