Product

DS-S006M Metal Gear 9G Servo micro servo

Voltage 6V (4.8~6VDC)
Operation torque ≥0.48kgf.cm (0.047N.m)
Stall torque ≥1.9kgf.cm (0.186N.m)
No load speed ≤0.09s/60°
Angel  0~180 °(500~2500μS)
Operation current ≥0.22A
Stall current ≤ 0.9A
Back lash ≤1°
Weight ≤ 13.5g (0.47oz)
Communication  Digital servo
Dead band ≤ 2us
Position sensor  VR (200°)
Protect  Without
Motor  Core motor

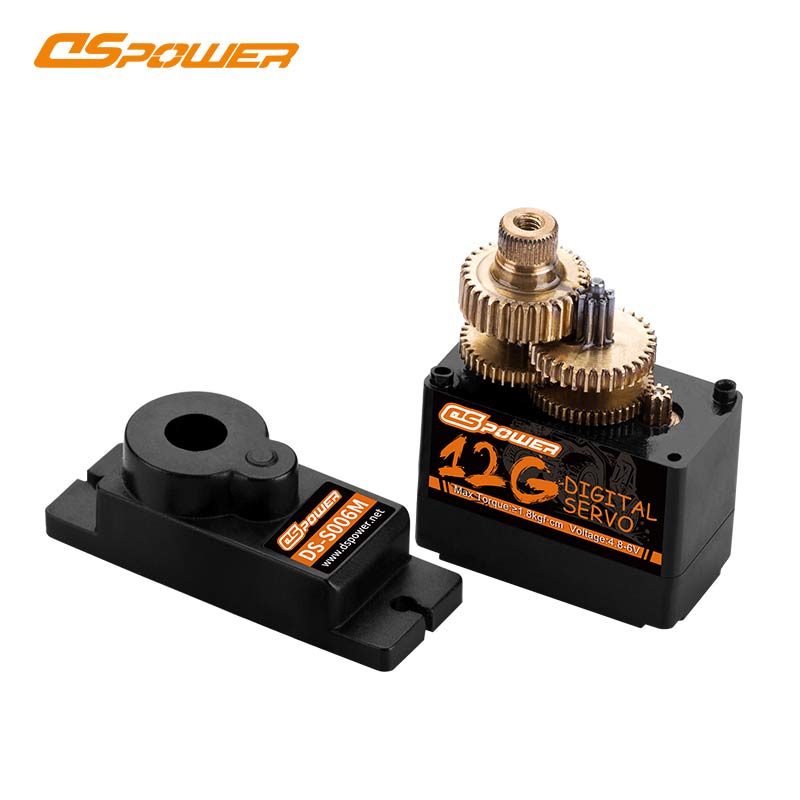

Material  PA casing;Brass gear (Gear ratio 324-1)
Bearing  0pc Ball bearing
Waterproof  IP4

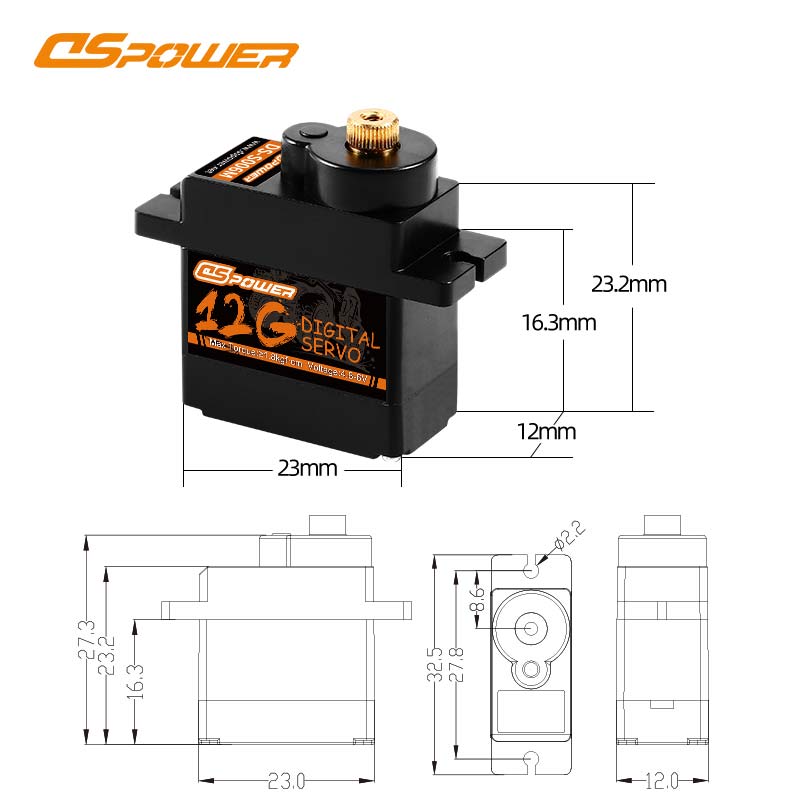

Dimension 23*12*27.3mm(0.91*0.48*1.07inch)

Product Detail

Product Tags

DS-S006M Metal Gear 9G Servo micro servo (2)
DS-S006M Metal Gear 9G Servo micro servo (3)
product_3
incon

Application

DS-S006M is a premium digital mini servo that is the ultimate replacement for Traxxas 1/16 scale applications.

incon

Features

product_2

FEATURE:

High performance,mini digital servo.

High precision Metal Gear.

High quality DC motor.

Programmable Functions:

End Point Adjustments

Direction

Fail Safe

Dead Band

incon

Application Scenarios

Car, Robot, Airplane, Boat, Rc model diy, Smart Home, Other..

product_3
incon

FAQ

Q: Can I get a free sample?

A: Some servo support free sample, some do not support, please contact with us for more detailed information.

Q: Can I get servo with un-typical case?

A: Yes, we are professional servo manufacturer since 2005, we have exellent R&D team, we can R&D  servo according to customers' requirements, give you a totally support, we has R&D and manufactured all kinds of servo for many companies so far, like as servo for RC robot, UAV drone, smart home, industrial equipment.

Q: What is your servo's rotation angle?

A: The rotation angle can be adjusted according to  your  requirements, but it is 180° at default, please do contact with us if you need special rotation angle.

Q: How long can I take my servo?

A: - Order less than 5000pcs, it will take 3-15 business days.
- Order more than 5000pcs, it will take 15-20 business days.
