5g Mosquito Car Four Wheel Steering Digital Servo DS-S003M

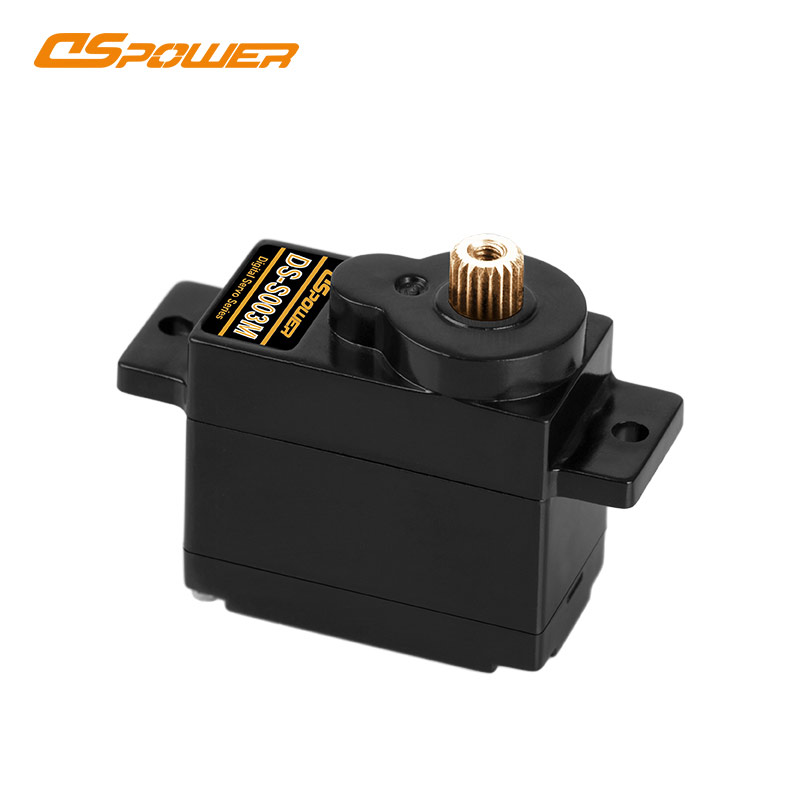

DSpower S003M Mini Servo is a miniature servo motor designed for applications that demand lightweight construction, precise control, and anti-vibration capabilities.

1、ABS plastic shell+High precision metal gear+28T Horn Gear Spline design

2、Equipped with a Coreless Motor, providing a longer service life

3、1.4 kgf·cm High torque+0.06 sec/60° no load speed+operating angle 90°±10°

Send email to us

Product Detail

Product Tags

DS-S003M adopts a 5g ultra lightweight structure and high-precision copper gears, redefining compact motion control. This FCC and CE certified micro servo is highly trusted worldwide and is perfect for mosquito toy cars, micro drones, remote-controlled airplanes, and silent smart homes.

Key Features and Functions:

Ultra compact 5G design: DS-S003M weighs only 5 grams and can be seamlessly installed in devices with limited space, from micro drones to mosquito toy cars, as well as advanced smart homes

Stall protection and high speed response: Built in stall protection function, which can automatically cut off the power supply in case of gear jamming to prevent motor burnout. With a response speed of 0.06sec/60 °, it is easy to achieve RC aircraft flipping and drone obstacle avoidance

Copper gear durability: Precision machined metal gears can resist peeling during hard landings or sharp turns, and anti slip technology ensures reliability even under extreme torque.

Application Scenarios

Remote controlled aircraft: With a torque of 1.4kgf · cm, it can easily control ailerons, flaps, and other control surfaces, manipulate the aircraft's left and right tilt, takeoff and landing, and other actions

Drone: High precision copper teeth with a response speed of 0.06sec/60 °, precise and fast control of control surfaces such as ailerons, elevators, and rudders, and manipulation of drone pitch, yaw, and left and right steering actions

Mosquito car toy: With a high-speed response of 0.06sec/60 ° and a torque of 1.4kg, it can easily drive the front wheels for quick steering and push the shock absorber adjustment valve to change the height of the car body

Smart Home: Metal gear design with ≤ 35dB noise, precise and quiet control of curtain opening and closing ratio or louver angle. 1.4kg high torque and 5g weight, also very suitable for the extension and retraction of the lock tongue and the rotation of the control handle of smart electronic locks

FAQ

Q. Can i ODM/ OEM and print my own logo on the products?

A: Yes, Through 10years research and development of servo, De Sheng technical team is professional and experienced to offer customized solution for OEM,ODM customer, which is one of our most competitive advantage.
If above online servos does not match your requirements, please do not hesitate to send message to us, we have hundreds of servos for optional, or customizing servos based on demands, it is our advantage!

Q. Servo Application？

A: DS-Power servo have wide application, Here are some of applications of our servos: RC model, education robot, desktop robot and service robot; Logistics system: shuttle car, sorting line, smart warehouse; Smart home: smart lock, switch controller; Safe-guard system: CCTV. Also agriculture, health care industry, military.

Q: For a customized servo, how long is the R&D time (Research& Development time)?

A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
