High Quality 35kg Steel Gear 8V Core Motor RS485 Serial BUS Micro Servo DS-R003D Manufacturer and Supplier

35kg Steel Gear 8V Core Motor RS485 Serial BUS Micro Servo DS-R003D

DS-R003D is a servo designed for medium torque, equipped with RS485 serial bus control and magnetic encoder, which can quickly feedback data.

● Semi Aluminum Frame Case+Steel Gear+Core Motor

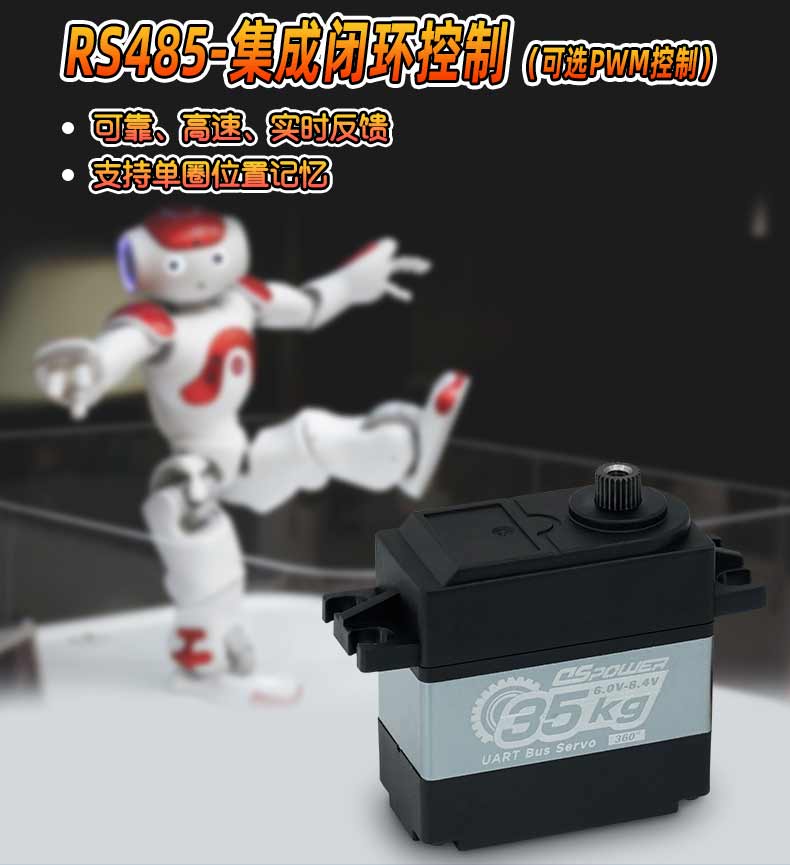

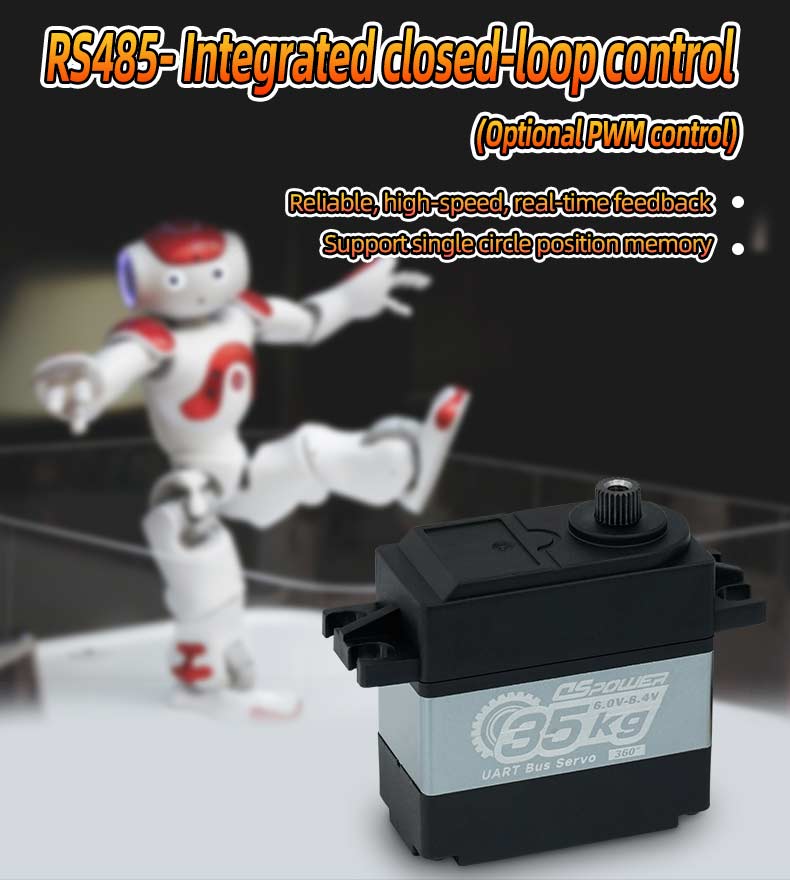

● Adopt RS485 Serial BUS control and Magnetic Encoding to support single turn position memory

● 35kgf.cm Stall Torque+6-8.4V Operating voltage+Operating angle 360°

● Application Scenario：Bionic Robots,Coffee Machine and Industrial Robotic Arms

Send email to us

Product Detail

Product Tags

DS-R003D not only boasts high speed and stable data transmission, but is also equipped with steel gears and a semi aluminum frame for exceptional durability, achieving control capabilities traditionally found only in expensive high end servos, but at a very competitive cost.

Key Features and Functions:

● High Torque and Precision Coexist：35kg high torque can handle the dynamic loads and high intensity positioning tasks commonly found in bionic and automation applications. The built in encoder meets the "millimeter level latte art" requirements of coffee machines.

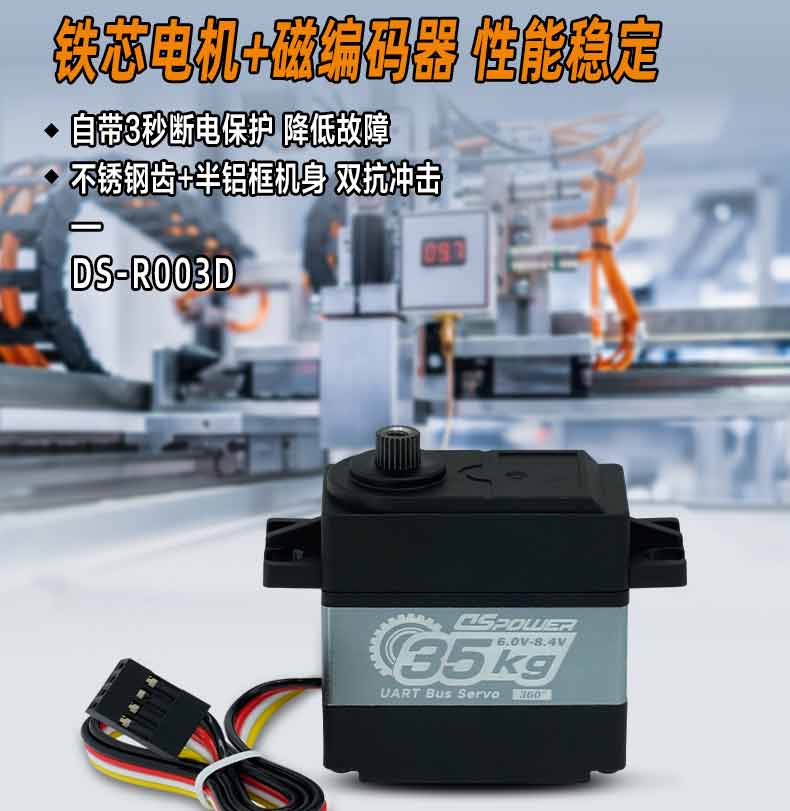

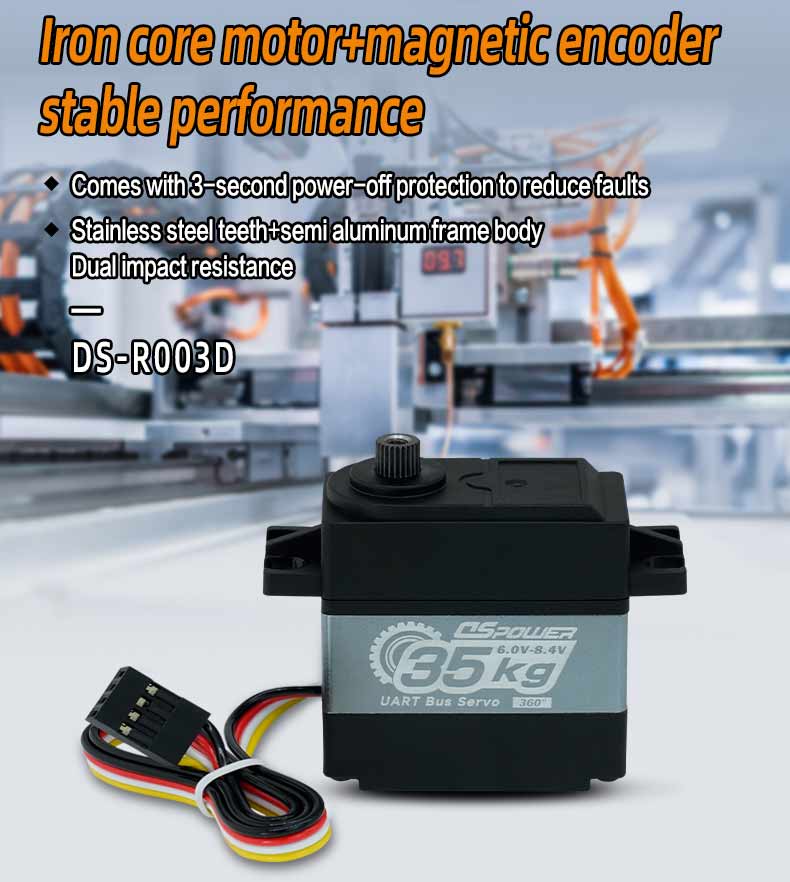

● Long life and strong adaptability：Semi aluminum frame design is easy to dissipate heat, with built in power off protection to reduce the risk of overload failure, and equipped with steel gears to provide an extra long service life

● Compatible with multiple control methods：Supports RS485 serial bus and PWM control, adapting to a variety of application scenarios, significantly reducing complex wiring requirements and simplifying system expansion

Get a Free Sample！！！

Technical Specs

Operating Voltage: 6-8.4V DC
Standby Current: ≤30 mA
No Load Speed: ≤0.23sec/60°
Stall Current: ≤5A
Stall Torque: ≥35 kgf.cm
Rotating Direction: CCW
Operating Travel Angle: 360°
Mechanical Limit Angle: 360°
Angle deviation: ≤1°
Weight: 67.5±0.8g
Motor Type：Core Motor
Communication Interface: RS485 Serial BUS
Gear Set Material: Steel Gear
Case Material: Semi Aluminum Frame Case

Application Scenarios

● Bionic robots：DS-R003D's lightweight and high torque enable bionics and prosthetics to perform smooth, complex movements with high fidelity. The RS 485 bus allows for rapid querying of the position and load of multiple joints simultaneously.

● Fully automatic coffee robotic arm：High precision positioning encoder can replicate the latte art techniques of professional baristas. 360° Controllable angle and low noise design are suitable for the quiet environment of coffee shops.

● Industrial automation assembly：RS 485 bus supports reliable data transmission over long distances and can control multiple servos to work simultaneously. It is equipped with steel gears and a semi aluminum frame housing, providing the ability to work continuously without stopping. It is very suitable for sorting systems and small mechanical fixtures.

FAQ

Q. Do: you test all the goods before delivery?

A: Yes, we have 100% test before delivery. If you need any assistance, please feel free to contact us.

Q: What certifications do your servo has?

A: Our servo have FCC, CE, ROHS certification.

Q. How do l know if your servo are good quality?

A: Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.

Q: For a customized servo, how long is the R&D time (Research& Development time)?

A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
