150kg Steel Gear 30V Heavy Duty Brushless Digital Servo DS-R009F

DSpower DS51150 DSR009F Brushless Digital Servo has the characteristics of strong torque and ultra-long life, which makes it very suitable for various large drones and robots. It is also compatible with multiple control methods, making it popular in the field of mobile robots.

●  Brushless Motor+Aluminum Alloy Case+Steel Gear

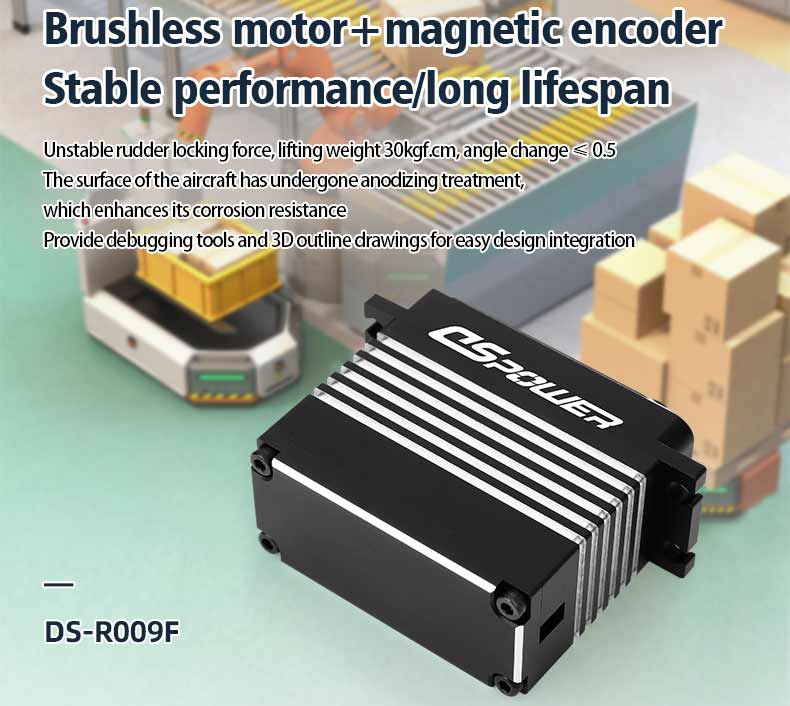

●  Equipped with Brushless Motor and Magnetic Encoder, stable performance and longer life

●  150kgf.cm Stall Torque+9-30V Operating Voltage+Operating angle 180°±10°

●  Ideal Applications:Large UAV,Industrial Robot,Patrol Robot and AGV Vehicle




Product Detail

Product Tags





DS-R009F is designed specifically for extreme load applications, providing unparalleled power for industrial robots, heavy duty UAV, and unmanned vehicles with its amazing 150kgf · cm ultra large torque and military grade CNC machined alloy housing

DSpower Digital Servo Motor

Key Features:

●  Unparalleled Torque and Power: DS-R009F has a stall torque of 150kgf · cm, providing powerful capabilities for heavy tasks such as industrial robot lifting, unmanned vehicle propulsion, and automation equipment driving. Capable of withstanding high voltage 28V, ensuring consistent power transmission for continuous and high load operations

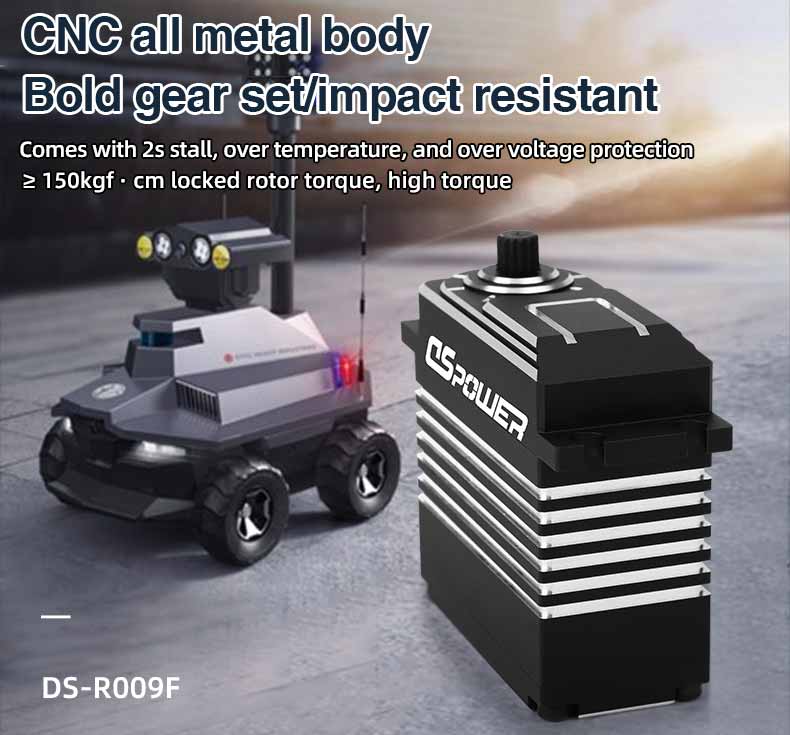

●  Durable All Metal Structure: CNC machined metal body+reinforced gear design, capable of withstanding extreme impacts and vibrations, making it an ideal choice for industrial robots, heavy duty drones, and off road autonomous vehicles. Anodized anti corrosion body, moisture proof, dust proof, and chemical resistant, extending the service life in harsh environments

●  Brushless Motor+Magnetic Encoder: Brushless motors can reduce friction and heat, achieve quiet operation, and have a lifespan three times that of brushed motors. Magnetic encoders can ensure ultra stable torque output, which is crucial for robot assembly and automatic positioning.



Technical Specs

Operating Voltage: 9-30V DC
Standby Current: ≤70 mA
No Load Speed: ≤0.27sec/60°
Stall Current: ≤4A
Stall Torque: ≥150 kgf.cm
Rotating Direction: CCW
Operating Travel Angle: 180°±10°
Mechanical Limit Angle: Unlimited
Angle deviation: ≤1°
Weight: 350±2g
Motor Type:Brushless Motor
Communication Interface: PWM/RS485/Serial bus
Gear Set Material: Steel Gear
Case Material: Aluminum Alloy Case

DSpower Digital Servo Motor

Application Scenarios

●  Industrial robot: 150kgf · cm high torque can easily lift heavy payloads,High precision gear sets ensure the working accuracy of welding and assembly robots, Metal gears can withstand millions of cycles and are not easily damaged or broken.

●  Heavy duty drone: Designed with steel gears and anodized body, it is resistant to vibration and corrosion. It can handle heavy cargo with 24V high voltage, such as payloads weighing over 50 kilograms. The brushless motor ensures long flight time and an extended service life.

●  Unmanned ground vehicle: With a torque of 150KG, it can easily handle climbing and soil breaking work,The stall protection device can still work normally when the wheels are blocked,The temperature range of -40 ° C to 85 ° C can cope with various extreme climates.

●  Automation equipment: Equipped with brushless motor and encoder, it can work continuously for 24 hours without power supply. Intelligent protection comes with 2s over temperature and over-voltage protection, reducing maintenance costs. Steel gears achieve low-noise operation, suitable for factory environments.

DSpower Digital Servo Motor

FAQ

Q. Can i ODM/ OEM and print my own logo on the products?

A: Yes, Through 10years research and development of servo, De Sheng technical team is professional and experienced to offer customized solution for OEM,ODM customer, which is one of our most competitive advantage.
If above online servos does not match your requirements, please do not hesitate to send message to us, we have hundreds of servos for optional, or customizing servos based on demands, it is our advantage!

Q. Servo Application?

A: DS-Power servo have wide application, Here are some of applications of our servos: RC model, education robot, desktop robot and service robot; Logistics system: shuttle car, sorting line, smart warehouse; Smart home: smart lock, switch controller; Safe-guard system: CCTV. Also agriculture, health care industry, military.

Q: For a customized servo, how long is the R&D time (Research& Development time)?

A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
