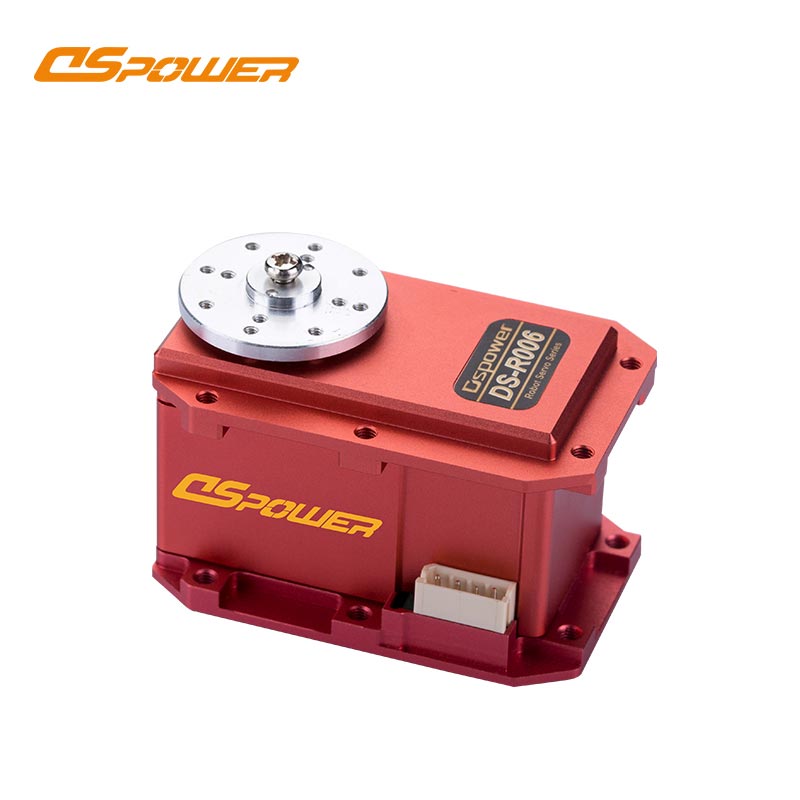

DS-R006 60KG high torque Robot servo


Product Detail

Product Tags

incon

Product Detail

DS-R006 is the High torque low speed RC servos to suit your any needs. especially perfect For Robot , AI & Machine Learning Applications.

incon

Product parameters

Operating Voltage 10.0∽14.8V DC
No Load Speed ≤0.29 Sec./60° at 12.0V
Rated Torque 12kgf.cm at 12.0V
Stall Current ≤5A at 12.0V
Stall Torque ≥58 Kgf.cm at 12.0V
Pulse Width Range 96-4000μs
Operating Travel Angle 310°±10°
Mechanical Limit Angle 360°
Weight 162±2g
Case Material Metal
Gear Set Material Metal Gears
Motor Type Coreless Motor
incon

Features

High performance, standard, Multivoltage digital servo

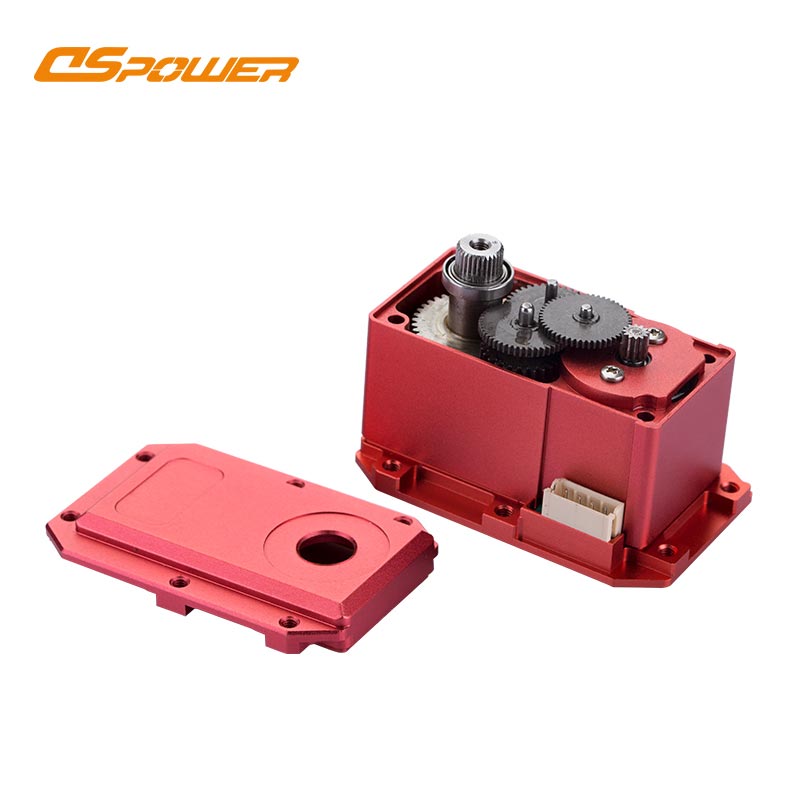

High-precision Metal Gear

Long-life potentiometer

CNC aluminium case

High quality DC motor

Dual ball bearing

Waterproof

incon

Application

Compatible with Remote Control Helicopters, Robot, Robot Arm and Boats. Support All Kind of R/C Toys and Arduino Experiments..
