Product

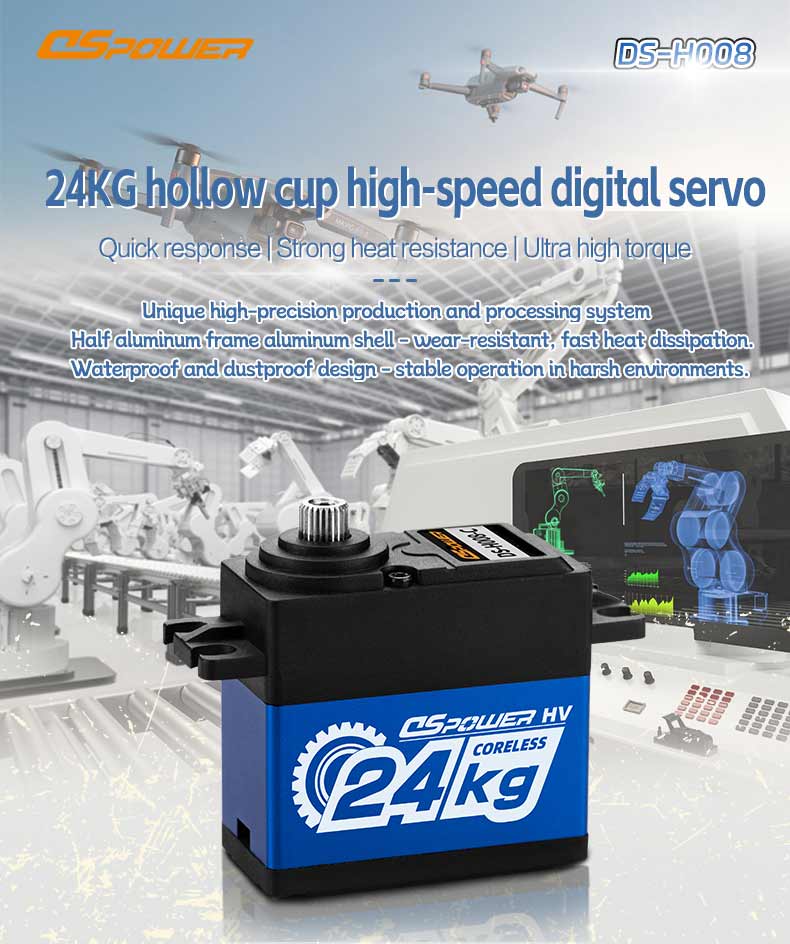

DS-H008-C Coreless servo motor

Dimension 23*12*27.3mm(0.91*0.48*1.07inch)
Voltage 7.4V (6~7.4VDC)
Operation torque ≥0.37kgf.cm (0.036N.m)
Stall torque ≥22kgf.cm (2.16N.m)
No load speed ≤0.09s/60°
Angel 0~180 °(500~2500μS)
Operation current ≥0.18A
Stall current ≤ 0.7A
Back lash ≤1°
Weight ≤24Kg (0.85oz)
Communication Digital servo
Dead band ≤ 2us
Position sensor VR (200°)
Protect Without
Motor Coreless motor
Material PA casing; PA gear (Gear ratio 265/1)
Bearing 0pc Ball bearing
Waterproof IP4

Product Detail

Product Tags

DS-H008-C Coreless servo motor (3)
DS-H008-C Coreless servo motor (5)
DS-H008-C Coreless servo motor (1)
incon

Application

Metal gear train ensures durability and longevity.

Great replacement for RTR crawler, truck and buggy servos.

Excellent choice for budget-conscious customers.

incon

Features

product_1

Features

Digital Circuit for Increased Performance and Holding Power.

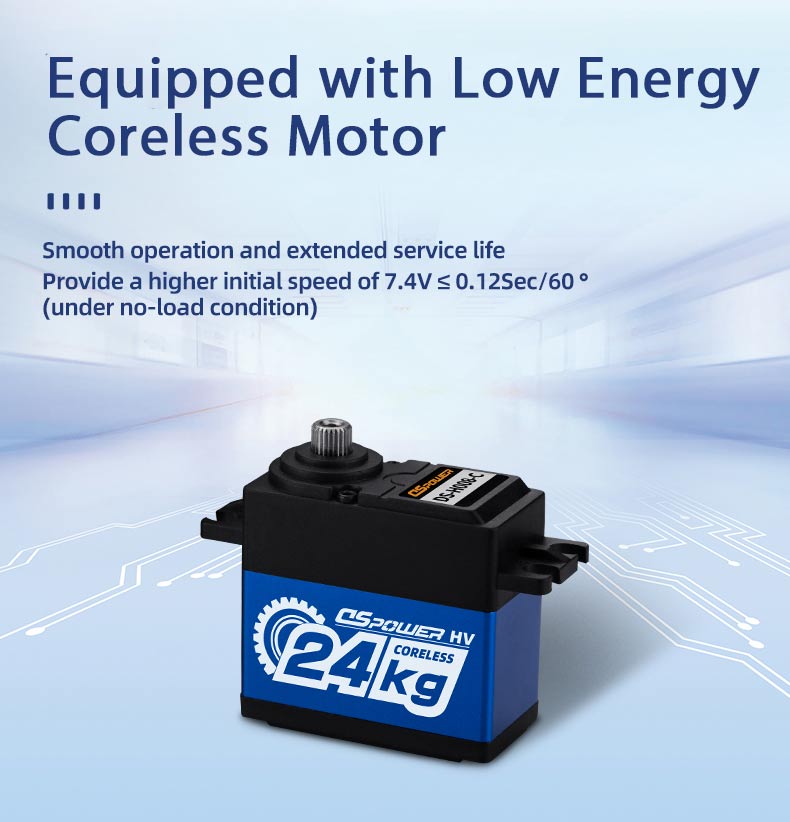

Smooth Coreless Motor.

Rugged Metal Gears.

Standard Programmable Digital Circuit.

Economical, Feather, Digital Servo.

Programmable Functions

End Point Adjustments

Direction

Fail Safe

Dead Band

Speed (Slower)

Data Save / Load

Program Reset

incon

Application Scenarios

For with Remote Control Helicopters,Airplane, Robot, Boats,Robot Arm and Smart home. Support All Kind of R/C Toys and Arduino Experiments.

product_3
incon

FAQ

Q: What is your servo's communication?

A: PWM, TTL, RS485 are optional. most of servo are PWM at default, please do contact with us if you need not PWM.

Q: Can I get servo with un-typical case?

A: Yes, we are professional servo manufacturer since 2005, we have exellent R&D team, we can R&D  servo according to customers' requirements, give you a totally support, we has R&D and manufactured all kinds of servo for many companies so far, like as servo for RC robot, UAV drone, smart home, industrial equipment.

Q: How long can I take my servo?

A: - Order less than 5000pcs, it will take 3-15 business days.
- Order more than 5000pcs, it will take 15-20 business days.

Q: For a customized servo, how long is the R&D time (Research& Development time)?

A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
