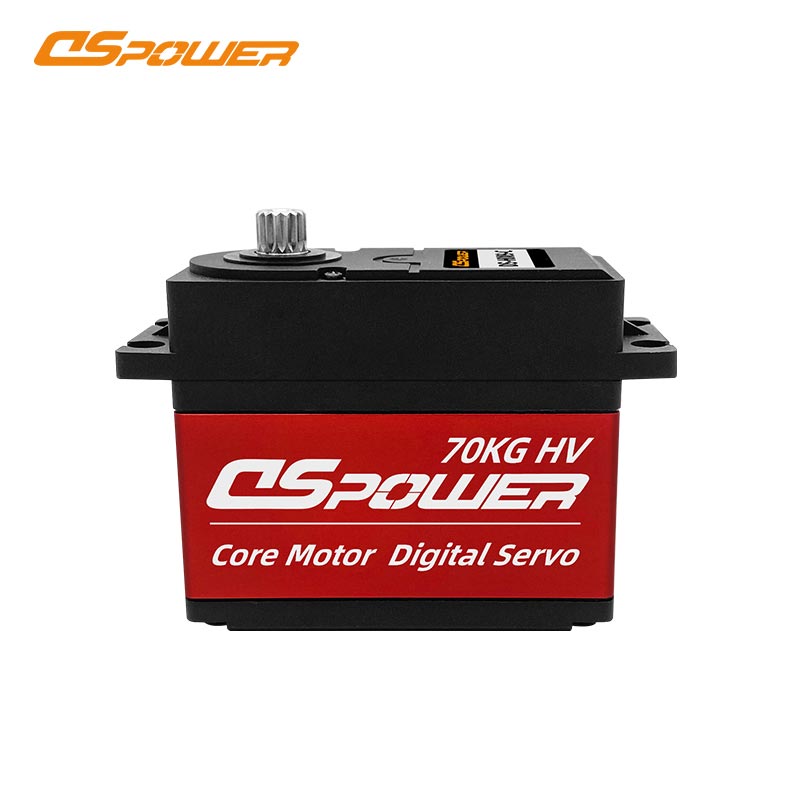

DS-H009-C 70kg Large HV High Torque Metal Gear Servo

Operating Voltage: 6.0~7.4V DC
Standby Current: ≤15 mA
Consumption Current: 6.0V ≤240mA;7.4V ≤250 mA
Stall Current: 6.0V ≤7.4A;7.4V ≤ 9.4 A
Max. Torque: 6.0V ≥ 50 Kgf.cm;7.4V ≥ 70 Kgf.cm
No Load Speed: 6.0V ≤0.17Sec/60°;7.4V ≤0.14Sec/60°
Rotating Direction: 2000us→1000us
Pulse Width Range: 500~2500 us
Neutral Position: 1500 us
Operating Travel Angle : 90° ±10°(1000~2000 us)
Max. Operating Travel Angle: 180°±10°(500~2500us)
Mechanical Limit Angle: 200°
Operating Temperature Range: -10℃~+50℃
Storage Temperature Range: -20℃~+60℃
Operating Humidity Range: ≤ 90%RH
Storage Humidity Range: ≤ 90%RH
Weight: 203± 0.5g
Case Material: Half-Aluminum Frame
Gear Set Material: Metal Gear
Motor Type: Iron Core Motor

Product Detail

Product Tags

DSpower H009C High torque servos are a type of servo motor that is designed to provide greater force or turning power than standard servos. They are typically used in applications where a lot of force is required to move or control an object, such as in RC cars, boats, and airplanes, robotics and automation, and industrial machinery.

High torque servos are able to generate more force than standard servos due to their larger motors and stronger gears. They are capable of providing high levels of torque even at low speeds, making them ideal for applications where precision and accuracy are required.

When selecting a high torque servo, there are several factors to consider, including the torque rating, speed, and size. It is important to choose a servo that is compatible with your specific application and is able to provide the necessary force to meet your needs.

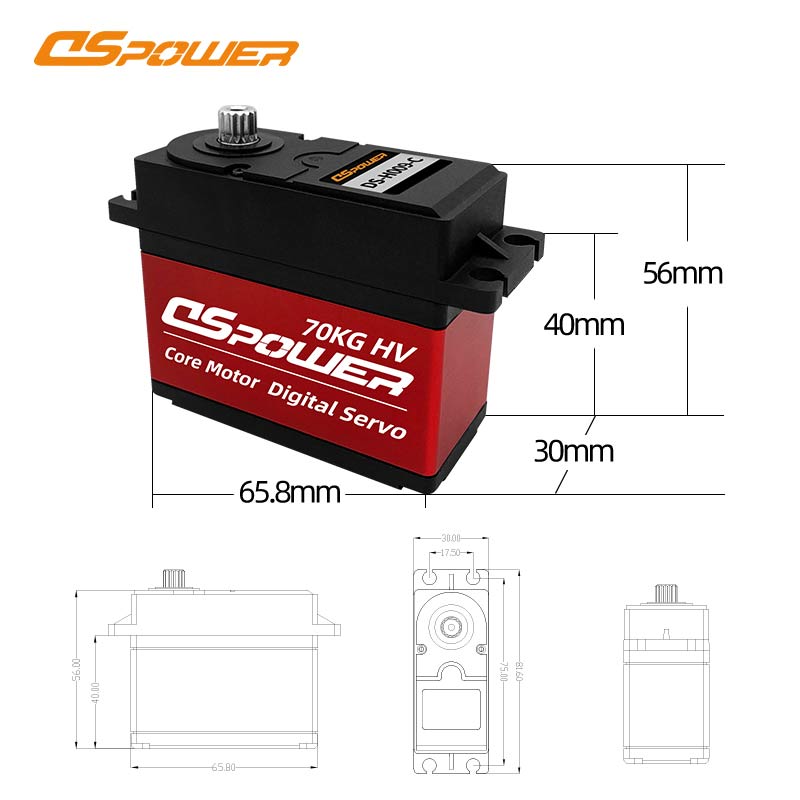

DS-H009-C Large HV High Torque Metal Gear 80KG Servo (3)
incon

Key Features and Functions:

Ultra-High Torque Output (70KG): Engineered to deliver an extraordinary torque output of 70 kilograms, this servo is specifically designed for applications demanding immense force and precise control.

Half-Aluminum Frame: Equipped with a sturdy half-aluminum frame, the servo ensures maximum structural integrity and efficient heat dissipation. The use of aluminum contributes to a lightweight design while maintaining durability.

High Torque Metal Gear Design: The servo features high-torque metal gears, providing strength, durability, and efficient power transmission. These gears are crucial for applications demanding resilience and the ability to handle heavy loads.

180° Rotation: With the ability to rotate 180 degrees, this servo offers a broad range of motion. This capability is valuable in applications where a wide range of movement is required, such as robotics and automation.

Precision Control: Designed for precise position control, the servo enables accurate and repeatable movements. This precision is vital for applications that require exact positioning, even in confined spaces.

Wide Operating Voltage Range: The servo is designed to operate within a versatile voltage range, providing flexibility for different power supply systems.

Remote Control Compatibility: Engineered for remote control applications, the servo can be seamlessly integrated into remote-controlled vehicles, robotic systems, and other projects where remote precision is required.

incon

Application Scenarios

Robotics: Ideal for high-torque applications in robotics, the servo can be used in various robotic components, including arms, grippers, and other mechanisms requiring powerful and precise control.

RC Vehicles: Well-suited for large remote-controlled vehicles, such as cars, trucks, boats, and airplanes, where the combination of high torque, durable metal gears, and a wide range of motion is crucial for optimum performance.

Industrial Automation: The servo can be integrated into heavy-duty industrial automation systems, including conveyor controls, robotic assembly lines, and other applications requiring robust and precise movement.

Research and Development: In research and development settings, the servo is valuable for prototyping and testing, particularly in projects that demand exceptionally high torque and precise control.

Automation in Large Spaces: Suitable for applications where a wide range of motion is required, such as large-scale automation, robotic arms, and experimental setups.

DSpower H009C 70KG Half-Aluminum Frame, High Torque Metal Gear 180° Remote Control Servo represents a top-tier solution for projects where extreme strength, precise control, and a broad range of motion are paramount. Its advanced features make it suitable for a diverse range of applications, from industrial automation to large-scale robotics and remote-controlled vehicles.

incon

FAQ

Q. Can i ODM/ OEM and print my own logo on the products?

A: Yes, Through 10years research and development of servo, De Sheng technical team is professional and experienced to offer customized solution for OEM,ODM customer, which is one of our most competitive advantage.
If above online servos does not match your requirements, please do not hesitate to send message to us, we have hundreds of servos for optional, or customizing servos based on demands, it is our advantage!

Q. Servo Application?

A: DS-Power servo have wide application, Here are some of applications of our servos: RC model, education robot, desktop robot and service robot; Logistics system: shuttle car, sorting line, smart warehouse; Smart home: smart lock, switch controller; Safe-guard system: CCTV. Also agriculture, health care industry, military.

Q: For a customized servo, how long is the R&D time (Research& Development time)?

A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
