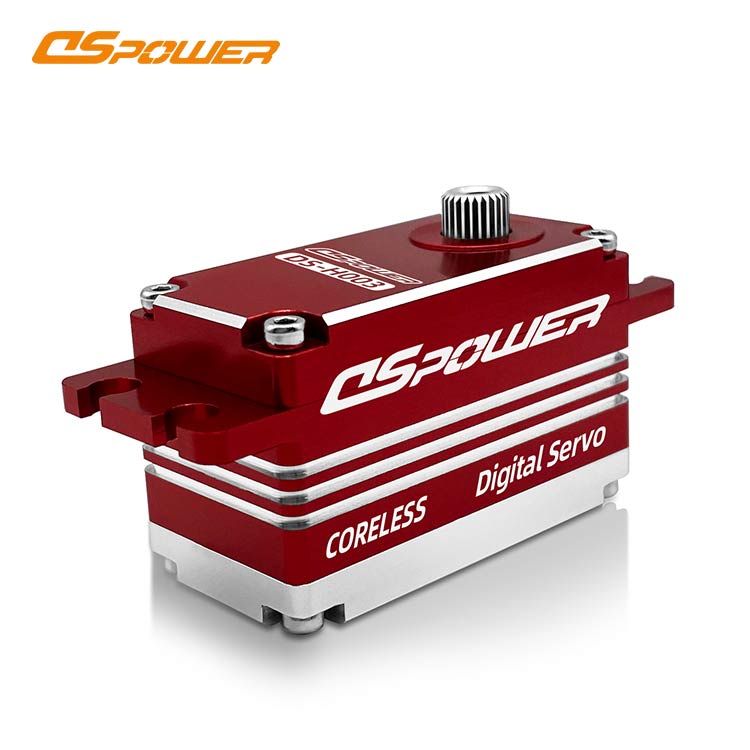

Intelligent Medicine Cabinet Low Profile Digital Servo DS-H003

DSpower H003C thin servo provides an incredible 16kgf · cm torque and 0.08 transmission speed at 6.0V, making this servo system an excellent choice for industrial endoscopes, smart medicine cabinets, and rehabilitation equipment.

1、All metal body+Steel gears

2、Equipped with a hollow cup motor, it has faster speed and smooth operation

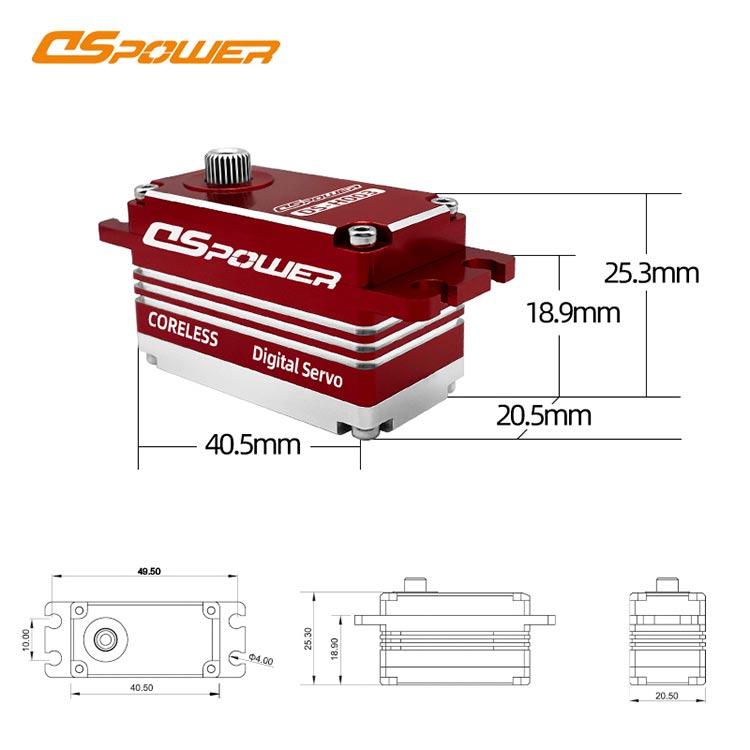

3、Adopting a compact low body design, with a height of only 25mm

4、16 kgf·cm High torque+0.08 sec/60° no load speed+Operable angle 180 °± 10 °


Product Detail

Product Tags









DS-H003 coreless digital servo motor is anodized on the casing, providing 15KG of torque in the revolutionary 2.5mm high chassis. With medical grade waterproofing and zero tooth slot coreless technology, it provides unparalleled reliability for industrial endoscopes, intelligent medicine cabinets, and rehabilitation robots.

digital servo-Car model servo-Car model servo

Features

Ultra low profile: Very suitable for devices with limited space, such as industrial endoscopes and smart pharmacy cabinets. Its compact design can be integrated into a compact mechanical structure without sacrificing torque

Fast Coreless Motor: DS-H003 is equipped with a high quality coreless motor that provides an ultra fast response time of 0.08 sec/60 °. This ensures real-time accuracy for key tasks such as industrial endoscope lens adjustment, rehabilitation robot joint movement, and high-speed automatic sorting in industrial environments.

15KG torque and high precision gear: 15kgf · cm high torque provides powerful power to handle heavy objects, such as supporting patient movement in rehabilitation equipment or activating doors on smart pharmacy cabinets with weighted drug storage. High precision gear design ensures precise door drive in robot assembly and intelligent cabinets in industrial automation

Intelligent reliability: Anti burn and anti shake technology can prevent the motor from burning out in a stall state, ensuring stable operation even in environments prone to vibration. The low noise gear ensures quiet operation and is suitable for noise sensitive environments such as rehabilitation equipment and smart medicine cabinets.

digital servo-Car model servo-Car model servo

Application Scenarios

Industrial Endoscopes:The low profile design fits slender endoscope shafts, while the fast response time enables real-time control of the lens.

Industrial automation equipment: A torque of 15kgf · cm provides power for robot fixtures and elevators, while high-precision gear accuracy ensures perfect part alignment. Anti burn technology supports continuous operation without shutting down.

Smart Pharmacy Cabinets: The 25mm body height solves the problem of internal storage space. Low noise operation can prevent patients from developing resistance emotions, and the IP67 anodized shell can resist cleaning agents and moisture, ensuring long-term reliability.

Rehabilitation equipment: A high torque of 15KG supports the weight and movement of the patient's body, while high-precision gear control can prevent injury. Low noise can improve patient comfort, and the sturdy design can withstand frequent use in therapeutic environments.

digital servo-Car model servo-Car model servo

FAQ

Q. Are you a trading company or manufacturer?

A: We are a servo manufacturer in China.  We specialized in servos design/ manufacturing for more than 10 years.

Q. How do l know if your servo are good quality?

A: Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.

Q. Do: you test all the goods before delivery?

A: Yes, we have 100% test before delivery. If you need any assistance, please feel free to contact us.
