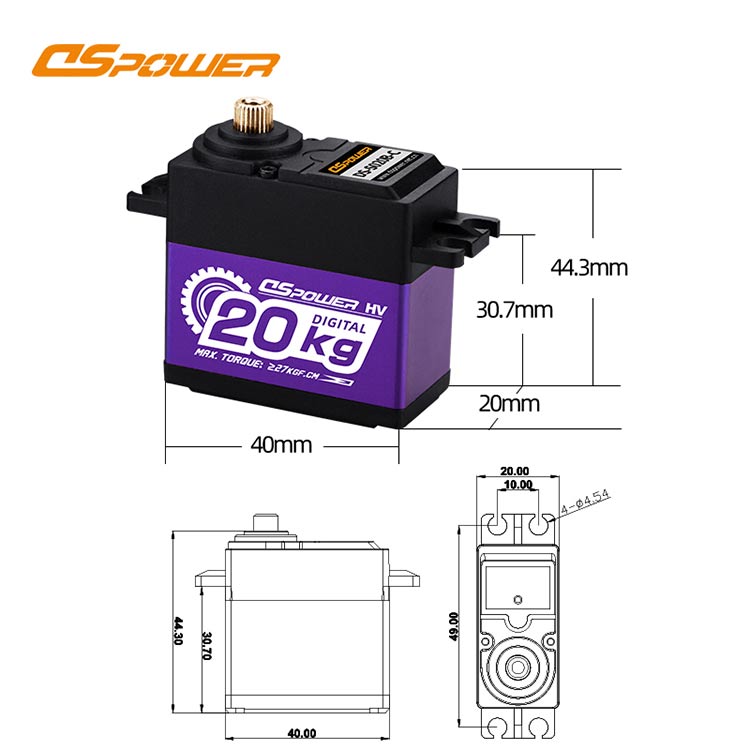

DS-S020B-C 20kg Half-Aluminum Frame Metal Gear Digital High torque servo

Operating Voltage: 6.0~7.4V DC
Standby Current: ≤12 mA
Consumption Current: 6.0V ≤130 mA;7.4V ≤150 mA
Stall Current: 6.0V ≤3.0A;7.4V ≤ 3.6A
Max. Torque: 6.0V ≥22 Kgf.cm;7.4V ≥28 Kgf.cm
No Load Speed: 6.0V ≤0.26 Sec/60°;7.4V ≤0.22 Sec/60°
Rotating Direction: CCW(1000us→2000us)
Pulse Width Range: 500~2500 us
Neutral Position: 1500 us
Operating Travel Angle: 90° ±10°(1000~2000 us)
Max. Operating Travel Angle : 180°±10°(500~2500us)
Mechanical Limit Angle: 360°
Centering deviation: ≤ 1°
Back Lash: ≤ 1°
Operating Temperature Range: -10℃~+50℃
Storage Temperature Range: -20℃~+60℃
Weight: 69±1 g
Case Material : Half-Aluminum Frame
Gear Set Material: Metal Gear
Motor Type: Iron Core Motor

Product Detail

Product Tags

incon

Application

DSpower S020B-C 20KG digital servo features HV high torque, metal gear, fast heat dissipation, sensitivity and responsiveness. With high quality and performance, it is tailored for RC hobbyist to provide different experience and delight.

incon

Features

FEATURE:

High performance, standard, Multivoltage digital servo

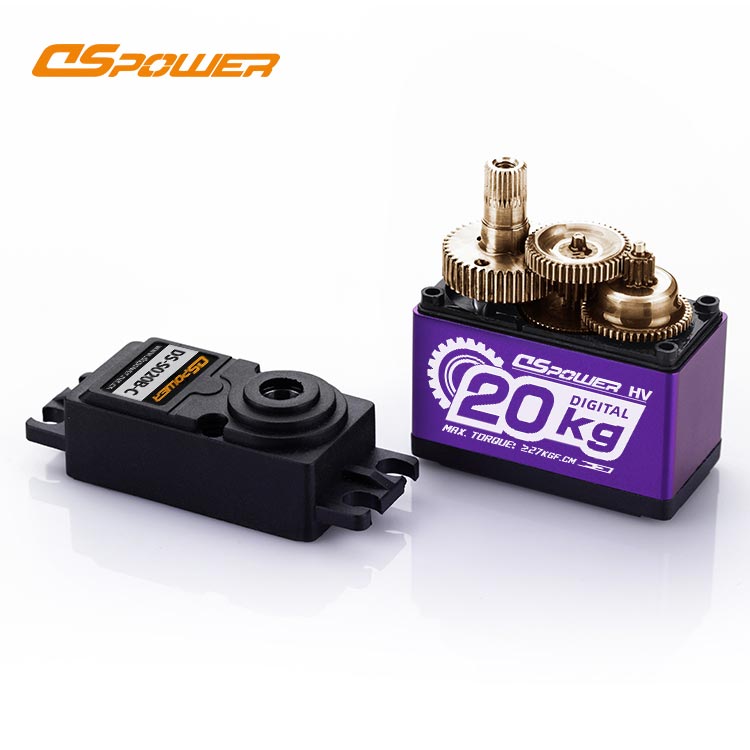

High-precision Metal Gear

Long-life potentiometer

CNC aluminiummiddle shell

High quality DC Motor

Dual ball bearing

Waterproof

Programmable Functions

End Point Adjustments

Direction

Fail Safe

Dead Band

Speed (Slower)

Data Save / Load

Program Reset



incon

Application Scenarios

DS-020B-C 20kg servo is a powerful servo motor capable of delivering up to 20 kilograms of force or turning power. It is suitable for various applications that require high torque and precise control. Here are some scenarios where a 20kg servo is commonly used:

RC vehicles: 20kg servos are ideal for medium-sized RC cars, trucks, boats, and other vehicles that require robust steering control and handling, especially in off-road or high-performance applications.

Robotics and automation: These servos find applications in medium-sized robotic arms, grippers, and autonomous systems that require substantial force and precise control for lifting, manipulation, and complex movements.

Industrial machinery: 20kg servos are utilized in industrial automation, manufacturing processes, and heavy machinery where precise positioning and control of heavy loads are essential, such as CNC machines, conveyor systems, or robotic assembly lines.

UAVs and drones: These servos can be employed in unmanned aerial vehicles (UAVs) and drones, providing powerful control over flight surfaces, camera gimbals, or payload release mechanisms.

Motion control systems: 20kg servos find applications in motion control systems for precise positioning, robotics research, animatronics, and other mechatronic applications that require accurate control of movement and force.

Robotic exoskeletons: In the field of medical rehabilitation and assistive technology, 20kg servos can be used in the development of robotic exoskeletons to provide assistance, support, and movement control for individuals with mobility impairments.

Overall, the high torque and precision of a 20kg servo make it suitable for applications that involve medium-sized RC vehicles, robotics, industrial automation, UAVs, motion control systems, and robotic exoskeletons. It offers reliable and robust control, allowing for precise and powerful movements in various fields.

incon

FAQ

Q. Can i ODM/ OEM and print my own logo on the products?

A: Yes, Through 10years research and development of servo, De Sheng technical team is professional and experienced to offer customized solution for OEM,ODM customer, which is one of our most competitive advantage.
If above online servos does not match your requirements, please do not hesitate to send message to us, we have hundreds of servos for optional, or customizing servos based on demands, it is our advantage!

Q. Servo Application?

A: DS-Power servo have wide application, Here are some of applications of our servos: RC model, education robot, desktop robot and service robot; Logistics system: shuttle car, sorting line, smart warehouse; Smart home: smart lock, switch controller; Safe-guard system: CCTV. Also agriculture, health care industry, military.

Q: For a customized servo, how long is the R&D time (Research& Development time)?

A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
