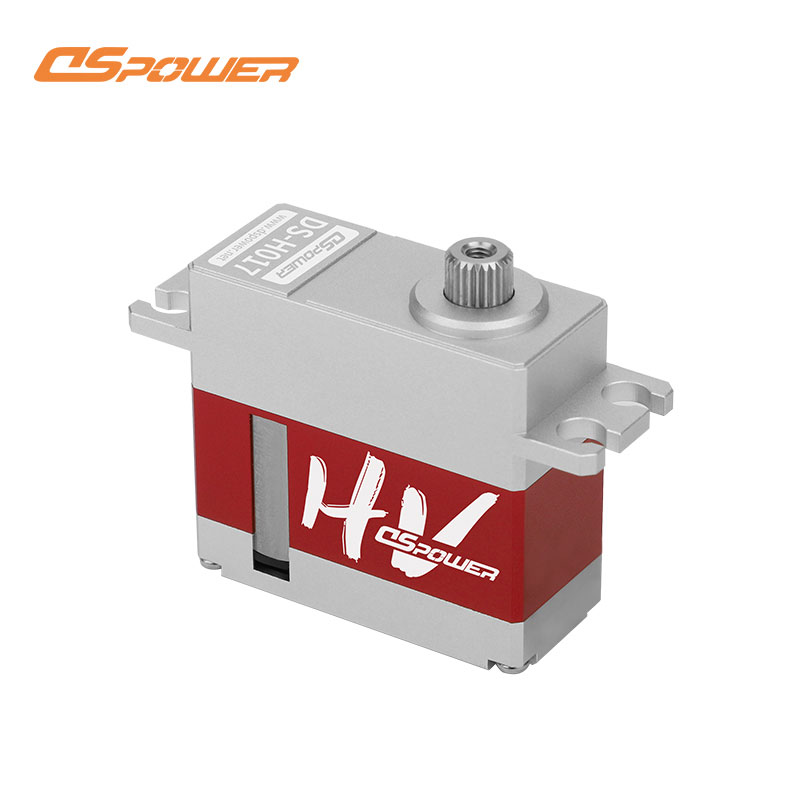

DS-H017 7kg full metal high voltage pwm digital servo

Operating Voltage. 6.0-8.4V DC
No Load Speed ≤0.085sec./60°at 6.0V,≤0.065sec./60° at 8.4V
No Load Current ≤1.8A at 6.0 V,≤2.3A at 8.4V
Stall Current ≤1.8A at 6.0 V,≤2.3A at 8.4V
Stall Torque ≥5 kgf.cm at 6.0V,≥7 kgf.cm at 8.4V
Pulse Width Range 1000-2000μs
Operating Travel Angle  95°±10°
Maximum Travel Angle 115°±10°
Weight 37.5±1.5g
Case Material Plastic Casing +Aluminium Alloy
Gear Set Material Metal Gears
Motor Type Core Motor




Product Detail

Product Tags

incon

Product Detail

DS-H017 This full metal, high voltage servo is ready to work for you with its 5KG~7kg of torque and blazing speed. these are a great option for Heli swashplates and tail rotors, or wherever you want a high torque, high-speed servo.

incon

Product parameters

incon

Features

FEATURE:

High performance, standard,Multivoltage digital servo

High-precision Metal Gear

Long-life potentiometer

CNC aluminiummiddle shell

High quality DC Motor

Dual ball bearing

Waterproof

Programmable Functions

End Point Adjustments

Direction

Fail Safe

Dead Band

Speed (faster)

Data Save / Load

Program Reset

incon

Application

For with Remote Control Helicopters,Airplane, Robot, Boats,Robot Arm and Smart home. Support All Kind of R/C Toys and Arduino Experiments..
