150kg DS51150 Heavy Duty 28V Steel Gear Brushless Servo DS-R009D
Engineered for mission critical automation, the DS-R009D DS51150 28V Steel Gear Brushless Servo delivers unmatched torque density and communication flexibility with RS-485/CANbus protocols. Featuring military grade steel gears and corrosion-resistant housing, this 24V servo withstands 10,000+ hours of continuous operation in harsh environments like automotive paint shops or offshore drone deployments.
Key Features and Functions:
● Industrial Grade Powerful Performance: It can drive a 500kg 6 axis industrial robot, suitable for the KR 1000 Titan robot, and can ensure that the unmanned vehicle can climb steadily on a 30° slope.
● Strict Environmental Protection：DS-R009D features an IP68 sealed housing, effectively protecting against weld spatter and corrosion in pickling rooms. It also boasts a wide operating temperature range of -40°C to +85°C, and has been used in extreme cold tests for drone inspections of Alaskan oil pipelines.
● Intelligent Communication Integration：Supporting both RS485 and CANopen protocols, the ABB robot controller seamlessly integrates with the NVIDIA autonomous driving platform. Its 0.8ms bus refresh rate meets the 0.1mm precision requirements of high speed placement machines.
● Long Life Technology：Ceramic coated bearings extend the service life to 80,000 hours in dusty environments. The gearbox can be replaced on site in 15 minutes, reducing production line downtime.
Operating Voltage: 18-28V DC
Standby Current: ≤50 mA
No Load Speed: ≤0.26sec/60°
Stall Current: ≤4.5A
Stall Torque: ≥150 kgf.cm
Rotating Direction: CCW
Operating Travel Angle: 360°
Mechanical Limit Angle: Unlimited
Angle deviation: ≤1°
Weight: 337g
Motor Type：Brushless Motor
Communication Interface: CAN BUS/RS422/RS485

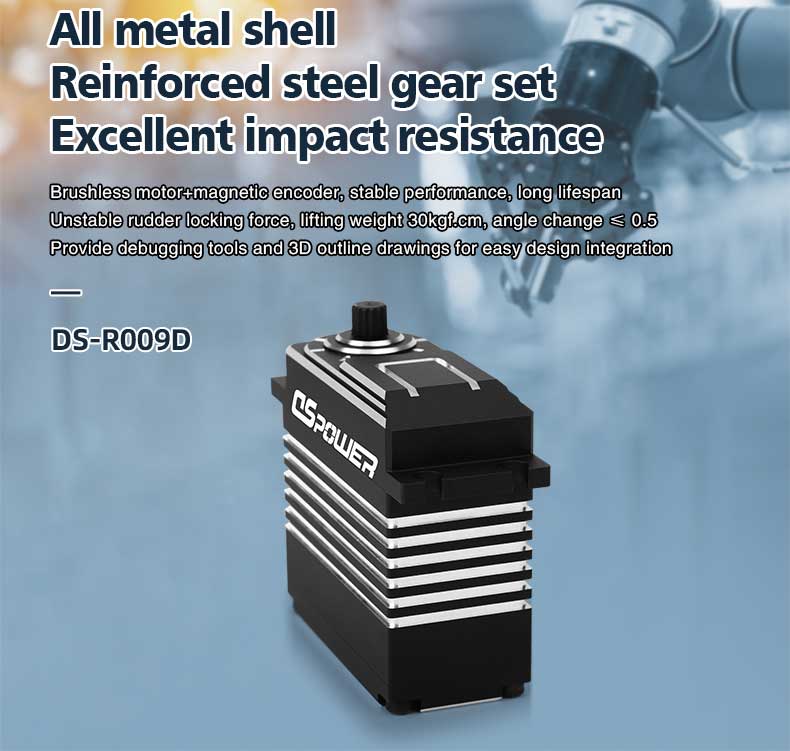

Gear Set Material: Steel Gear
Case Material: Aluminum Alloy Case
Application Scenarios
● Automotive Manufacturing Automation
Body in White Welding Robot: Drives a 600kg welding gun to move accurately with an error of less than 0.05mm.
Autonomous Driving Testing Platform: Providing redundant control power for Waymo's unmanned vehicle steering system.
● Heavy Duty Unmanned Aerial Vehicle System
Logistics UAV Cargo Door Control: Supports stable opening and closing of 150kg Amazon Prime Air cargo containers.
Agricultural Drone Spray Arm Adjustment: Resistant to pesticide corrosion, with a daily operation time of 8 hours without attenuation.
● Industrial Logistics Equipment
AGV Differential Steering Drive: Enables 10 ton AGV turning radius in narrow warehouses.
Port Container Gantry Crane: Precise control of lifting tool locks, increasing loading and unloading efficiency by 22%.
● Energy and Mining
Oil Drilling Robotic Arm: Continuous operation for in a polar environment at -30 ° C.
Autonomous Driving Mining Truck: Combined with LiDAR to achieve centimeter level path tracking of complex terrain in mining areas.
FAQ
A: Yes, we have 100% test before delivery. If you need any assistance, please feel free to contact us.
A: Our servo have FCC, CE, ROHS certification.
A: Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.
A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
