Product

High Speed Metal Gear Coreless Waterproof Digital Servo DS3225 25KG Servo

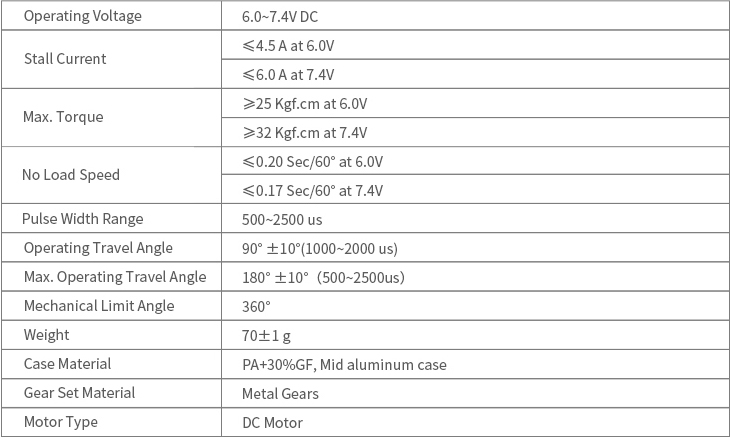

Stall Torque ≥25.0kgf.cm at 6.0V
≥32.kgf.cm at 7.4V
No Load Speed ≤0.20sec./60°at 6.0V
≤0.17sec./60°at 7.4V
Operating Travel Angle   180°±10°(500~2500μs)
Mechanical Limit Angle 360°
Weight 70±1 g

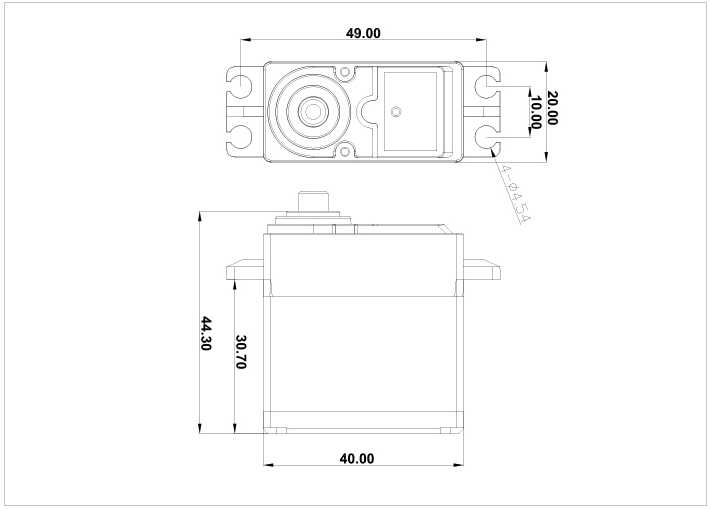

Size 40 ×20 ×41.1mm
Case material CNC aluminiummiddle shell
Gear Set Material Metal gear
Motor Type DC Motor

Product Detail

Product Tags

We emphasize improvement and introduce new goods into the market each year for High Speed Metal Gear Coreless Waterproof Digital Servo DS3225 25KG Servo, We are keeping chasing WIN-WIN situation with our clients. We warmly welcome clients from all over the world coming over for a visit and establishing long term relationship.
We emphasize improvement and introduce new goods into the market each year for High Speed Metal Gear Coreless Waterproof Digital Servo DS3225 25KG Servo, Corporate goal: Customers’ satisfaction is our goal, and sincerely hope to establish long-terms stable cooperative relations with customers to jointly develop the market. Building brilliant tomorrow together!Our company regards “reasonable prices, efficient production time and good after-sales service” as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.

DS-S020A-C 25KG Metal Gear High Torque Waterproof Digital Servo (5)

DS-S020A-C 25KG RC servo is a type of high-torque servo motor that is capable of providing up to 25 kilograms of force or turning power. This type of servo is commonly used in a variety of RC applications, including cars, boats, airplanes, and other vehicles.

The high torque rating of a 25KG RC servo makes it ideal for applications where a lot of force is required to move or control an object. For example, a 25KG RC servo can be used to control the steering of an RC car, providing precise and accurate control even at high speeds. Similarly, a 25KG RC servo can be used to control the pitch and yaw of an RC airplane, allowing for smooth and stable flight.

When selecting a 25KG RC servo, it is important to consider factors such as speed, size, and compatibility with your specific application.

Overall, a 25KG RC servo is an excellent choice for any RC application that requires a lot of force or turning power. It is reliable, efficient, and can provide precise and accurate control over your RC vehicle, allowing you to enjoy hours of fun and excitement.

incon

Application

FEATURE:

High performance, standard,Multivoltage digital servo.

High-precision Metal Gear.

Long-life potentiometer.

CNC aluminiummiddle shell.

High quality DC Motor.

Dual ball bearing.

Waterproof.

Programmable Functions

End Point Adjustments

Direction

Fail Safe

Dead Band

Speed (Slower)

Data Save / Load

Program Reset


incon

Application Scenarios

DS-S020A-C 25kg servo is suitable for a wide range of applications that require high torque, including:

RC cars, boats, and airplanes – 25kg servos are ideal for controlling the steering, throttle, and other movements of RC vehicles.

Robotics and automation – 25kg servos are commonly used in robots and automated systems that require high torque and precision.

Industrial machinery and equipment – 25kg servos can be used to control heavy machinery and equipment, providing precise and accurate movement.

Camera stabilization and gimbal systems – 25kg servos are often used in camera stabilization and gimbal systems to ensure smooth and stable movement.

Aerospace and defense – 25kg servos can be used in aerospace and defense applications that require precise and powerful movement.

Overall, a 25kg servo is a versatile and reliable option for any application that requires high torque and precise control. It is commonly used in a variety of industries, including RC, robotics, industrial machinery, and aerospace.

product_3
incon

FAQ

Q. How do l know if your servo are good quality?

A: Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.

Q: Can I get servo with un-typical case?

A: Yes, we are professional servo manufacturer since 2005, we have exellent R&D team, we can R&D  servo according to customers’ requirements, give you a totally support, we has R&D and manufactured all kinds of servo for many companies so far, like as servo for RC robot, UAV drone, smart home, industrial equipment.

Q. Servo Application?

A: DS-Power servo have wide application, Here are some of applications of our servos: RC model, education robot, desktop robot and service robot; Logistics system: shuttle car, sorting line, smart warehouse; Smart home: smart lock, switch controller; Safe-guard system: CCTV. Also agriculture, health care industry, military.

Q: What is your servo’s rotation angle?

A: The rotation angle can be adjusted according to  your  requirements, but it is 180° at default, please do contact with us if you need special rotation angle.

DS-S020A-C 25KG RC servo is a type of high-torque servo motor that is capable of providing up to 25 kilograms of force or turning power. This type of servo is commonly used in a variety of RC applications, including cars, boats, airplanes, and other vehicles.

The high torque rating of a 25KG RC servo makes it ideal for applications where a lot of force is required to move or control an object. For example, a 25KG RC servo can be used to control the steering of an RC car, providing precise and accurate control even at high speeds. Similarly, a 25KG RC servo can be used to control the pitch and yaw of an RC airplane, allowing for smooth and stable flight.

When selecting a 25KG RC servo, it is important to consider factors such as speed, size, and compatibility with your specific application.

Overall, a 25KG RC servo is an excellent choice for any RC application that requires a lot of force or turning power. It is reliable, efficient, and can provide precise and accurate control over your RC vehicle, allowing you to enjoy hours of fun and excitement.
